STR-NX1/NX3

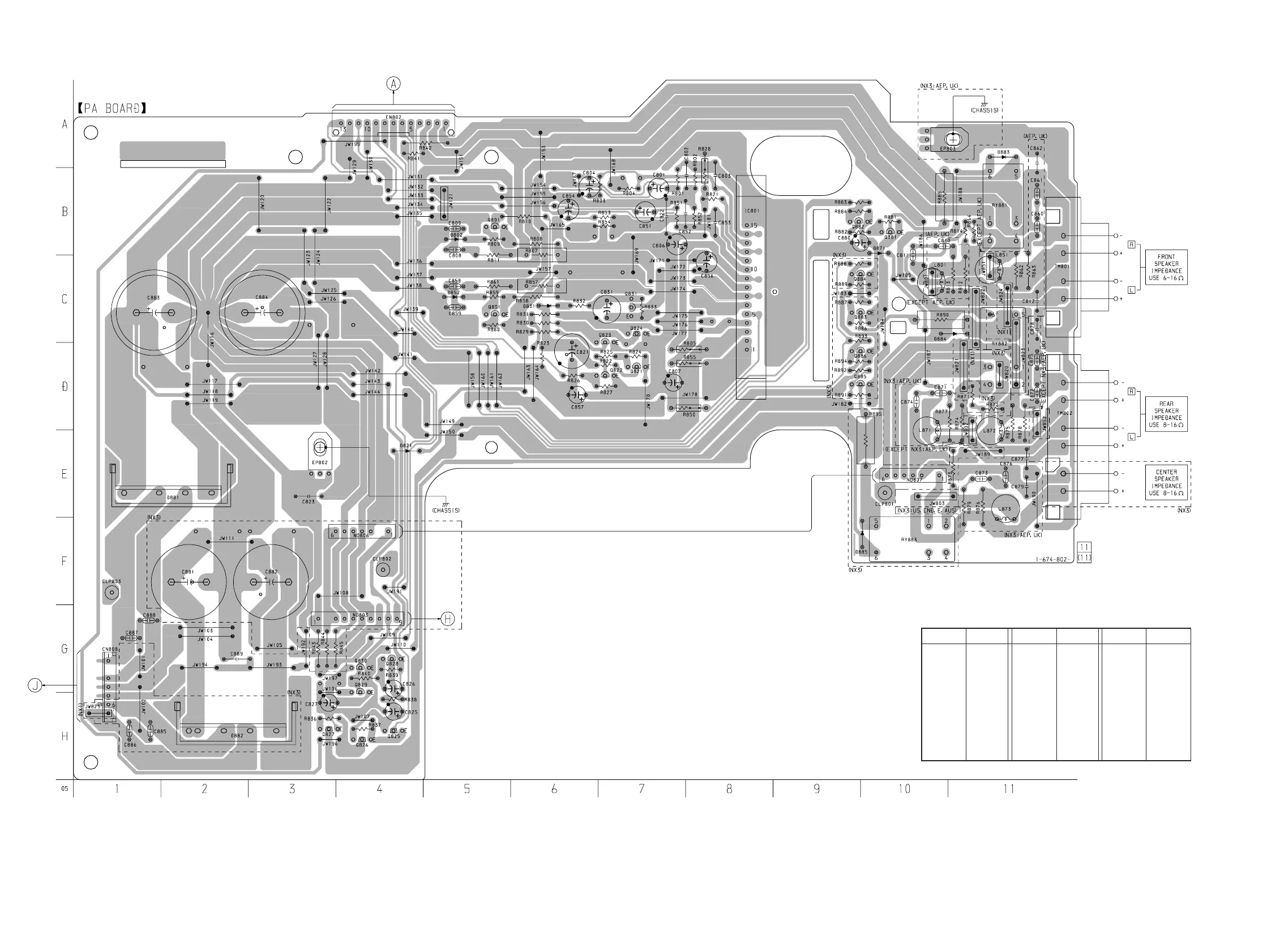

5-8. PRINTED WIRING BOARD – PA Board – • See page 11 for Circuit Boards Location.
IC801 C-8
Q801 B-5
Q821 D-7
Q822 D-7
Q823 C-7
Q824 C-7
Q825 H-4
Q826 H-4
Q827 H-4
Q828 G-4
Ref. No. LocationRef. No. Location
D802 B-5
D821 E-4
D831 C-6
D852 C-5
D871 B-10
D881 E-2
D882 H-2
D883 A-11
D884 C-11
D885 F-10
• Semiconductor Location
Ref. No. Location
Q829 G-4
Q830 G-4
Q831 C-7
Q851 C-5
Q881 B-10
Q882 B-9
Q883 C-9
Q884 C-9
Q885 D-9
Q886 D-9
(Page 22)
(Page
16)
(Page 15)
