4
SECTION 2
GENERAL

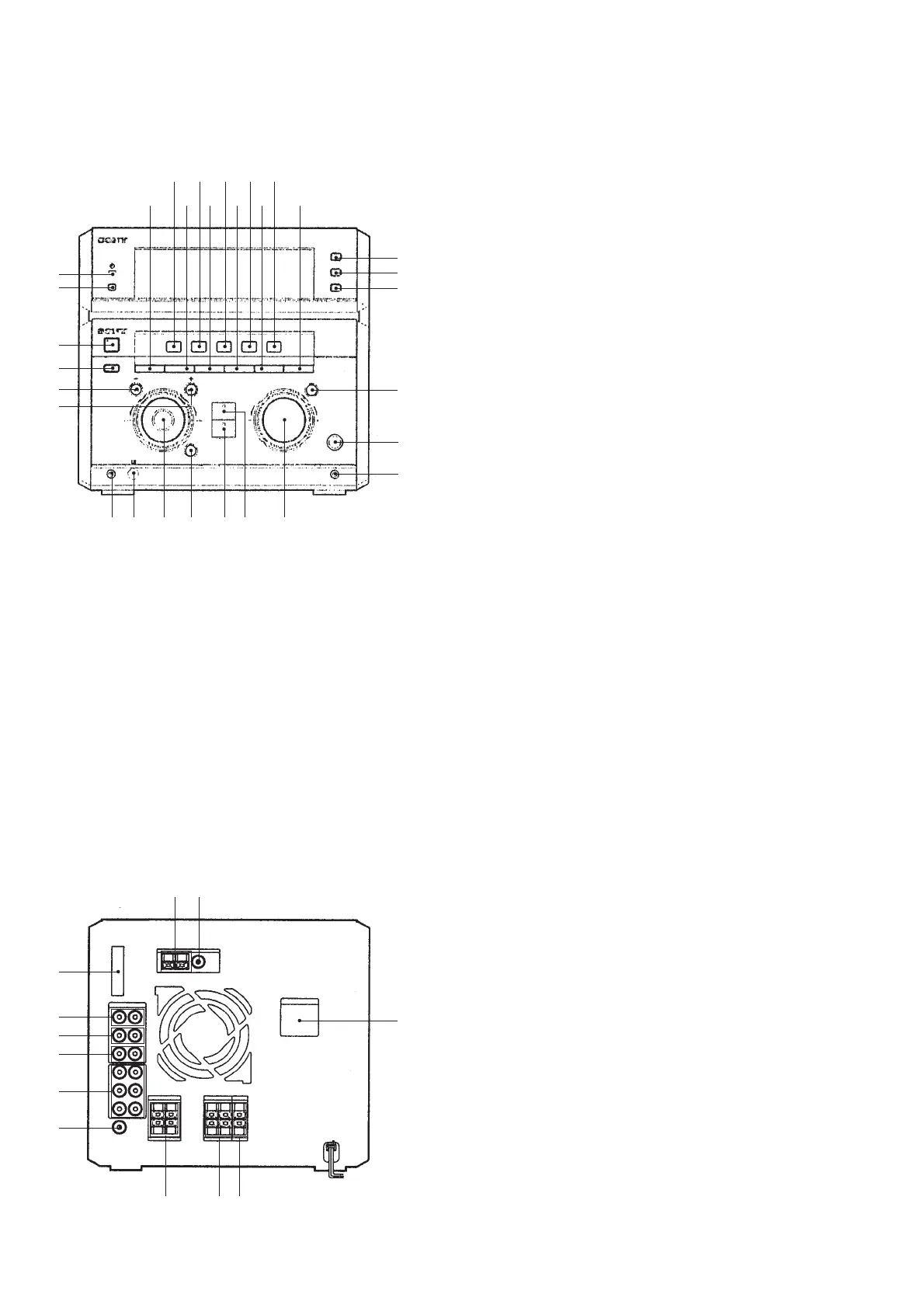

• LOCATION OF CONTROLS
– Front Panel –
– Rear Panel –
1 TIMER indicator (US, Canadian, AEP and UK models)
2 DISPLAY button
3 ?/1 button and indicator
4 POWER SAVE/DEMO (STANDBY) button
5 – m button
6 + M button
7 FILE SELECT button
8 VIDEO/DVD button
9 EDIT button
q; MD button
qa REPEAT button
qs TAPE button
qd PLAY MODE button
qf CD button
qg DBFB button
qh TUNER button
qj DSP button
qk TUNER BAND button
ql STEREO/MONO button
w; TUNER MEMORY button
wa GROOVE button and indicator
ws MIC LEVEL knob
wd MIC jack
wf PHONES jack
wg Remote sensor
wh Jog dial
wj ENTER button and indicator
wk DVD 5.1CH button and indicator (STR-NX3)
wl PRO LOGIC button and indicator (STR-NX3)
e; VOLUME knob
1 AM ANTENNA terminals
2 FM ANTENNA terminal
3 SYSTEM CONTROL connector
4 VIDEO (AUDIO) IN jacks
5 MD IN jacks
6 MD OUT jacks
7 DVD 5.1CH INPUT jacks (STR-NX3)
8 SUPER WOOFER OUT jack
9 VOLTAGE SELECTOR switch
(Malaysia, Singapore and Tourist models)
q; FRONT SPEAKER terminals
qa REAR SPEAKER terminals
qs CENTER SPEAKER terminals (STR-NX3)
12
3
4
5
6
7
8
q; qa qs
9
7 9 qa qd qg qj
8 q;qsqfqh
1
2
3
4
5
6
qk
ql
w;
wa
ws
wd
wf wg wh wj wk wl e;
