15
Tape Speed Adjustment DECK B
• Execute only if connected to the STR-NX1/NX3
Mode: Playback
1. Insert the WS-48B into the deck B.
2. Press the G (DECK B) button.
3. Press the [HI-DUB] button in playback mode.
Then at HIGH speed mode.
4. Adjust RV1001 on the LEAF SW board do that frequency
counter reads 6,000 ± 180 Hz.
5. Press the [HI-DUB] button.
Then back to NORMAL speed mode.
6. Adjust RV1002 on the LEAF SW board so that frequency
counter reads 3,000 ± 90 Hz.
Adjustment Location: LEAF SW board
Sample value of Wow and Flutter: 0.3% or less W.RMS (JIS)
(WS-48B)
Playback level Adjustment
DECK A DECK B
Procedure:
Mode: Playback
Deck A is RV311 (L-CH) and RV411 (R-CH), Deck B is RV301
(L-CH) and RV401 (R-CH) so that adjustment within specified
value as follows.
Specified Value:
AUDIO OUT jack PB level: 301.5 to 338.3 mV (–8.2 to –7.2
dB) level
difference between the channels: within ± 0.5 dB
Adjustment Location: AUDIO board

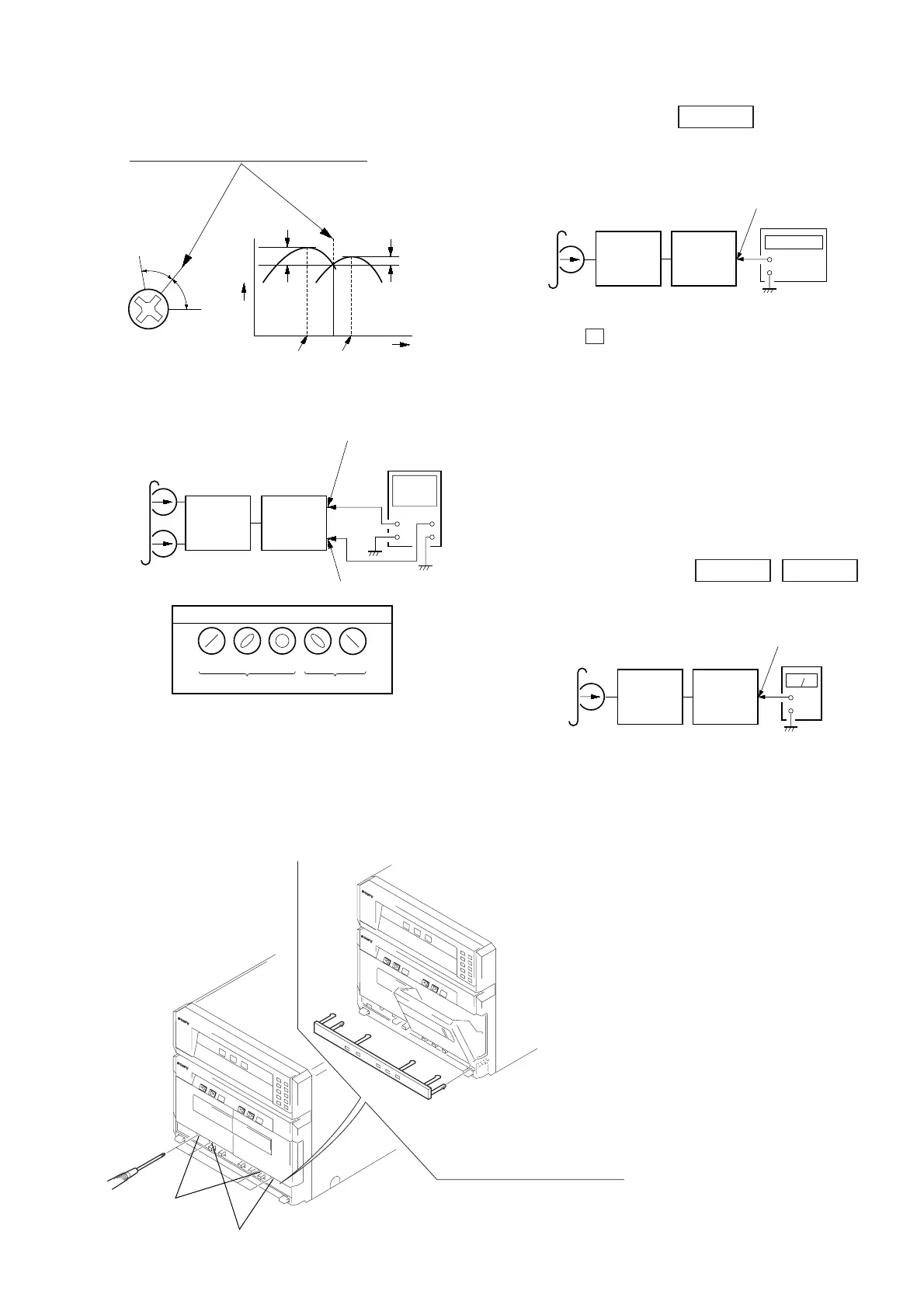

2. Turn the adjustment screw and check output peaks. If the peaks
do not match for L-CH and R-CH, turn the adjustment screw
so that outputs match within 1dB of peak.
3. Mode: Playback
4. Repeat step 1 to 3 in playback (REV) mode.
5. After the adjustments, apply suitable locking compound to the
pats adjusted.
Adjustment Location: Playback Head (Deck A).
Record/Playback/Earth Head (Deck B).
Screw
position
L-CH
peak
within
1dB
Output
level
L-CH
peak
R-CH
peak
within
1dB
Screw
position
R-CH
peak
test tape
P-4-A100
(10 kHz, –10 dB)
oscilloscope
AUDIO OUT (R) jack
L-CH
R-CH
V
H
waveform of oscilloscope
in phase 45
°
90
°
135
°
180
°
good
wrong
AUDIO OUT (L) jack
L-CH
R-CH
PFJ-1
or
STR-NX1/
NX3
set
forward
reverse
Open the cassette holder
and unhock six claws of
the sub panel (TC2)
with tweezers or something,
then remove the sub panel (TC2).
+
–
AUDIO OUT jack
test tape
WS-48B
(3 kHz, 0 dB)
frequency counter
set
STR-NX1/
NX3
+
–
test tape
P-4-L300
(315 Hz, 0 dB)
level meter
AUDIO OUT jack
PFJ-1
or
STR-NX1/
NX3
set
