MHC-V3/V4D
11

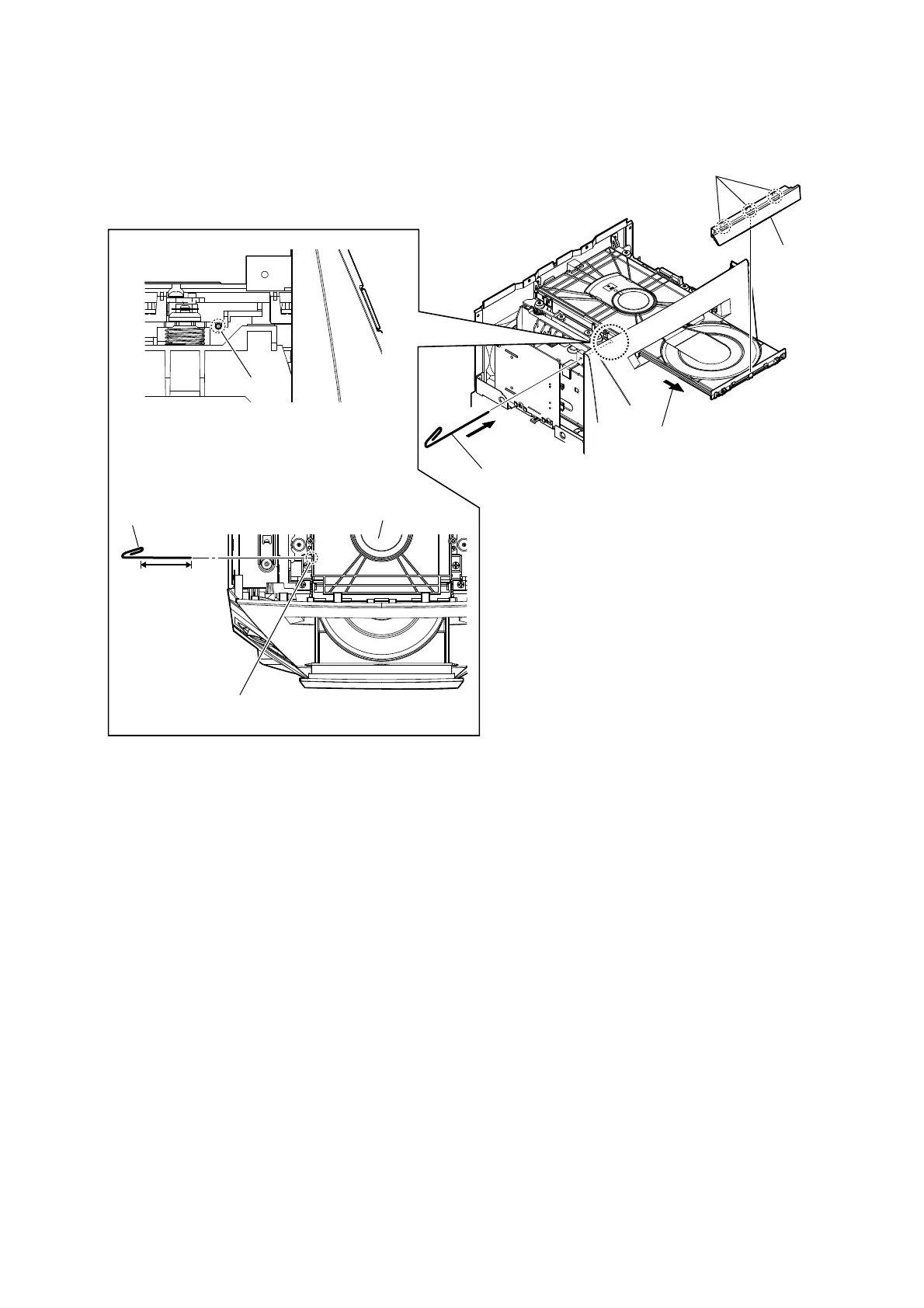

2-4.
LOADING P
ANEL BLOCK
1
Insert the clip etc.
2
Draw out the tray
.
3
three claws
4
panel, loading
block
– Left view –
– T
op view –
hole
CD mechanism deck
8 cm or more
tray
Insert the clip etc. processed to the
length of 8 cm or more in the hole
on the side of the chassis and push.
Note:
Push after it inserts it
in this hole well.
Ve
r.
1
.
1
10
12
Table of Contents
Default Chapter
3
Table of Contents
3
1 Servicing Notes
4
2 Disassembly
9
Disassembly Flow
9
Side L, R Panel
10
Top Panel Block
10
Loading Panel Block
11
CDM Block
12
Back Panel Block
13
TUNER Board
14
ARAGON Board
15
DAMP Board
16
Chassis Block
17
Bluetooth Module, SMPS Board
18
Front Panel Block
19
RC-S801/A5 (WW), SPEAKER LED Board, IR Board, Front Panel Assy
20
LOUDSPEAKER (20Cm) (WOOFER) (SP5)
21
LOUDSPEAKER (8Cm) (MID: L-CH) (SP1), LOUDSPEAKER (8Cm) (MID: R-CH) (SP3)
22
Service, Optical Device(7G), Wire (Flat Type)
23
Volume Knob Block
24
3 Test Mode
25
4 Electrical Check
31
5 Troubleshooting
33
6 Diagrams
38
Block Diagram - CD/USB Section
39
Block Diagram - MAIN Section
40
Block Diagram - AMP Section
41
Block Diagram - PANEL/POWER SUPPLY Section
42
ARAGON Board (Component Side)
44
ARAGON Board (Conductor Side)
45
Schematic Diagram - ARAGON Board (1/6)
46
Schematic Diagram - ARAGON Board (2/6)
47
Schematic Diagram - ARAGON Board (3/6)
48
Schematic Diagram - ARAGON Board (4/6)
49
Schematic Diagram - ARAGON Board (5/6)
50
Schematic Diagram - ARAGON Board (6/6)
51
Printed Wiring Board - PANEL Board
52
Schematic Diagram - PANEL Board
53
Printed Wiring Board - DAMP Board
54
Schematic Diagram - DAMP Board
55
Printed Wiring Board - TUNER Board
56
Schematic Diagram - TUNER Board
57
Printed Wiring Board - USB Board
58
Schematic Diagram - USB Board
58
Printed Wiring Board - MIC Board (V4D)
58
Schematic Diagram - MIC Board (V4D)
59
Printed Wiring Board - IR Board
60
Schematic Diagram - IR Board
60
Printed Wiring Board - SPEAKER LED Board
60
Schematic Diagram - SPEAKER LED Board
60
7 Exploded Views
76
Side Panel Section
76
Loading Panel Section
77
Back Panel Section
78
ARAGON Board Section
79
Chassis Section
80
Front Panel Section
81
Speaker Cabinet Section
82
Top Panel Section
83
CDM Block Section
84
CD Mechanism Section (CDM90-DVBU204//M)
85
8 Electrical Parts List
86
Other manuals for Sony MHC-V3
