Sony MHC-V3 Service Manual

MHC-V3/V4D
12

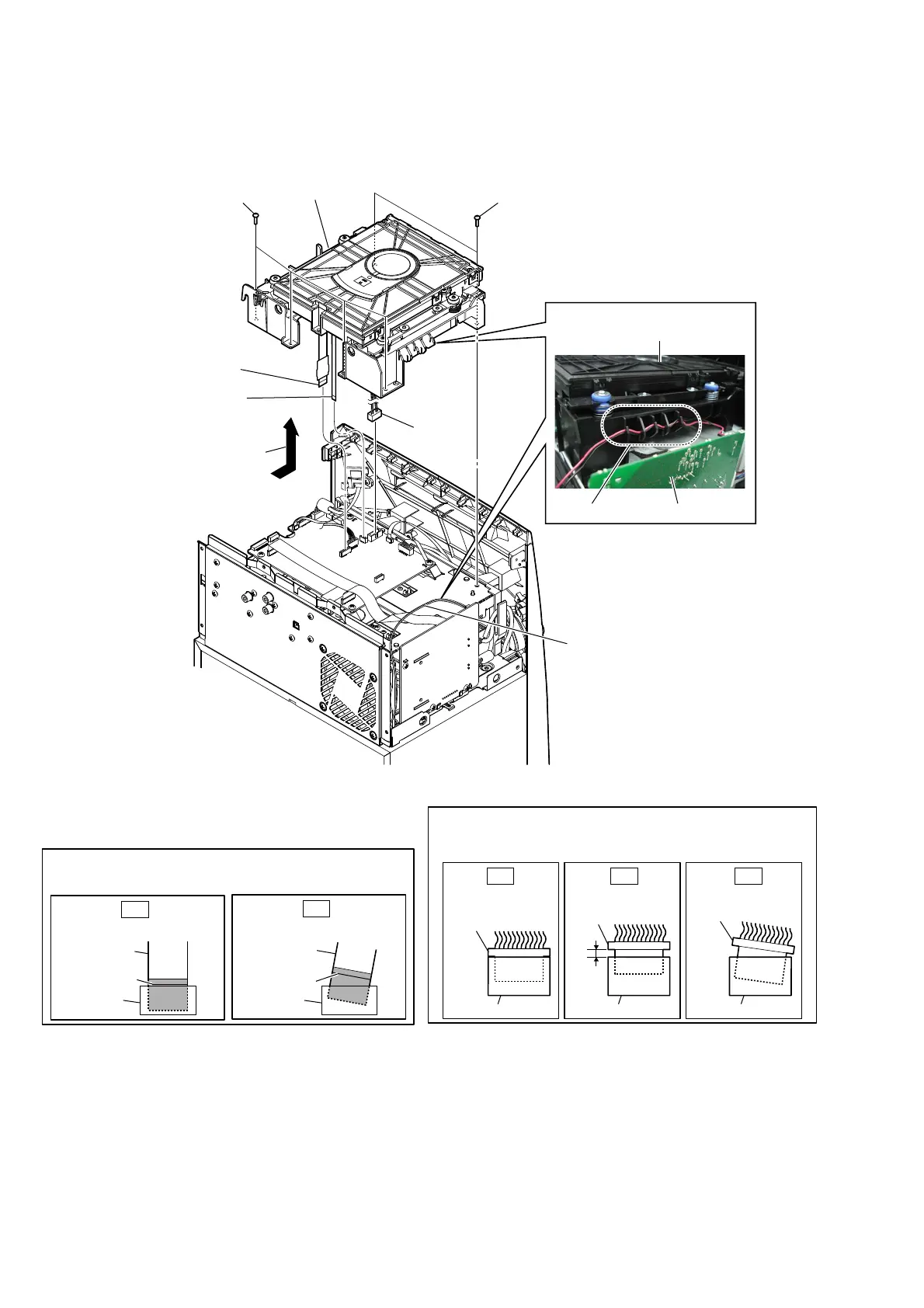

2-5. CDM BLOCK
2 two screws
(+BVTP 3 u 8)
3 Remove the CDM block
in the direction of the arrow.
2 four screws
(+BVTP 3 u 8)
4 wire (flat type)
(24 core) (CN302)
5 wire (flat type)
(5 core) (CN303)
6 CN401
(6P)
7 CDM block
CDM block
– Top rear view –
Note 2: When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
Note 1: When installing the wire (flat type), ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
wire (flat type)
wire (flat type)
connectorconnector
1 Remove the wire from the hook.
:LUHVHWWLQJ
hook DAMP board
OK
NG
OK NG NG
Ver. 1.1
