8
GB

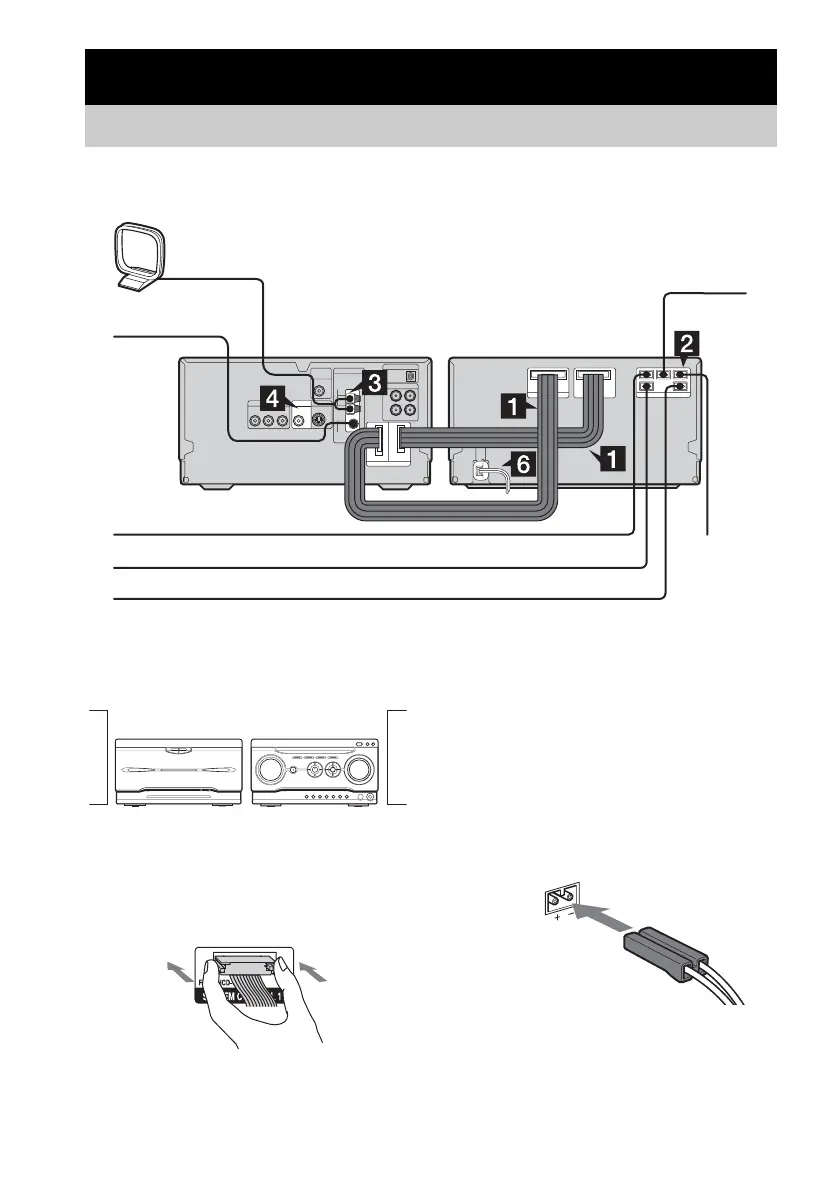

Perform the following procedures 1 to 7 to hook up your system using the supplied cords and
accessories. European model is used for illustration purpose.
Preparation
Place the components as shown below.
1 Connect the system control cables to
the SYSTEM CONTROL connectors on
the tape deck.
Connect to the same numbered jack in the
order indicated on the rear panel.
Note
The system cable is used to send signals and electricity
between the components for interlinked operation.
Be sure to insert the connector horizontally until it
clicks into place. Otherwise the system will not operate
correctly.
2 Connect the speakers.
Be sure to match the appropriate speaker
cords from the speaker terminals to the
corresponding SPEAKER terminals on the
tape deck.
Getting Started
Hooking up the system
AM loop antenna
To front speaker (right)
To front speaker
(left)
FM lead antenna
CD/DVD player/Tuner Amplifier/Tape deck
To surround speaker (right)
To surround speaker (left)
To center
speaker
Amplifier/
Tape deck
CD/DVD player/
Tuner
To Next Page
