MPK-DVF7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.

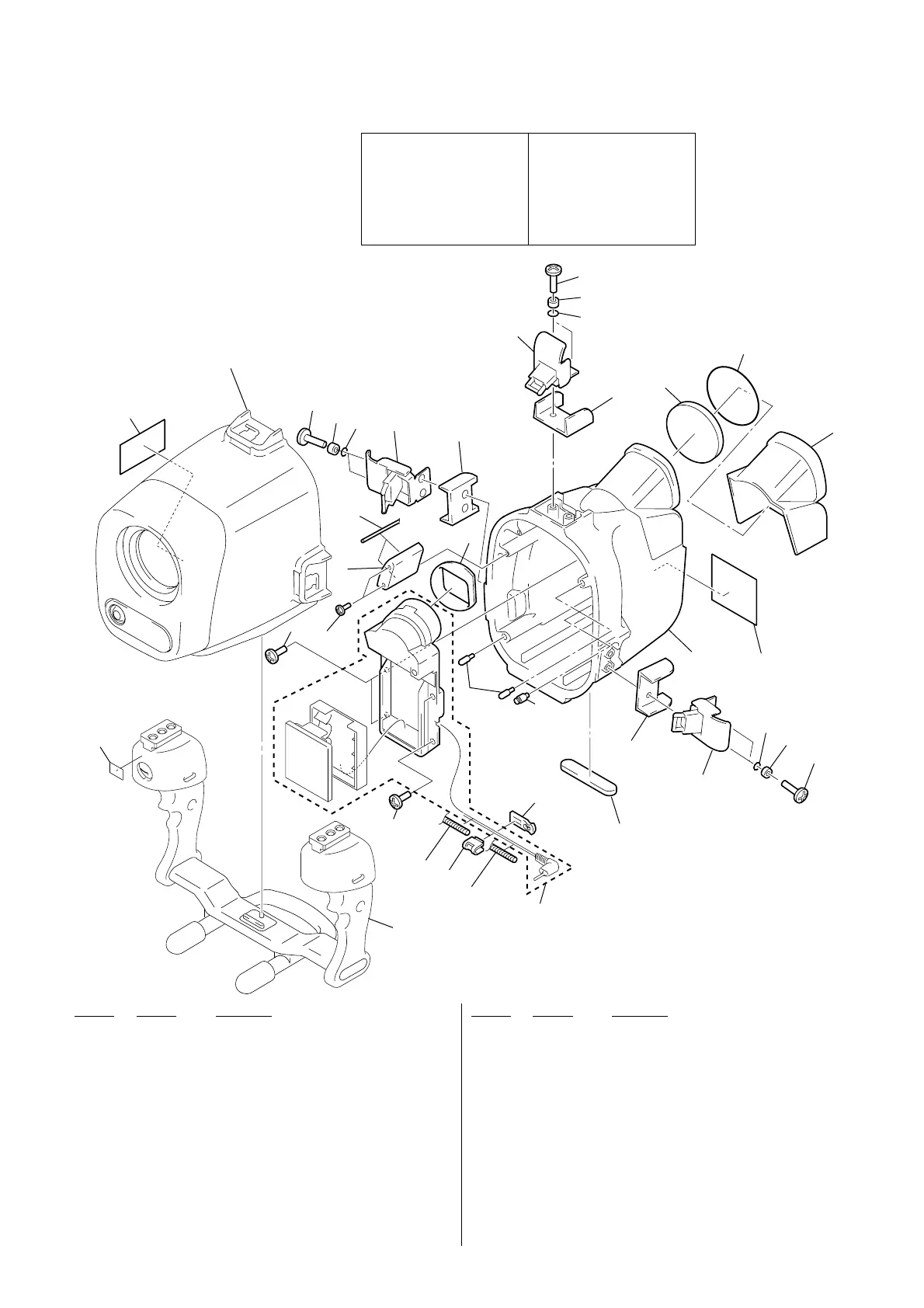

1. REAR CABINET SECTION
1 3-977-369-01 SCREW M3X8
2 3-052-092-01 SCREW M2.6X6
3 3-051-577-01 COVER, FIVER
4 3-051-698-01 FIVER, PLASTIC
5 3-976-710-01 COVER (R), BUCKLE
6 2-390-778-02 BUCKLE
9 3-976-695-01 GLASS, REAR
10 3-977-361-01 O RING G58
11 3-976-694-01 PROTECTOR, REAR CASE
12 3-051-575-01 CASE, REAR
13 3-976-698-01 FOOT, MAIN RUBBER
14 3-977-265-01 PIN, POSITIONING
2
3
4
15
1
1
21
14
18
17
16
6
5
6
16
5
9
16
17
18
6
5
12
13
10
11
18
17
20
19
26
22
23
27
25
Grip section
(See page 5.)
Monitor (PAL) block section
(See page 4.)
Front case section
(See page 3.)
15 3-061-211-01 PACKING, LCD
16 3-052-427-01 O RING S5
17 3-052-426-01 COLLAR, SNAP LOCK STOPPER
18 3-977-370-11 SCREW M3.5X12
19 3-051-583-01 PIN, CABLE FIXED
* 20 3-051-584-01 STRAP (A), CABLE
* 21 3-051-585-01 STRAP (B), CABLE
* 22 3-054-713-01 TUBE (A), SPIRAL
* 23 3-054-714-01 TUBE (B), SPIRAL
25 3-978-265-01 LABEL, WARNING
26 3-989-313-01 LABEL, TEMPERATURECAUTION
27 3-704-256-01 LABEL, CAUTION (US/CND)
Ref. No. Part No. Description Ref. No. Part No. Description
Note :
The marked “
0
” are parts in
relation to waterproof.
Replace these components with
Sony parts.
Be sure to check up waterproof
after repair.
Note :
La 0 marquée sont des pièces par
rapport à imperméable à l’ eau.
Ne les remplacer que par une
pièce portant le numéro spécifié.
Soyez sûr de vérifier vers le haut
d’ imperméable à l’ eau après la
réparation.
Ver 1.1 2005. 12
