Chapter 2 Location and Function of Parts
2-18 Chapter 2 Location and Function of Parts

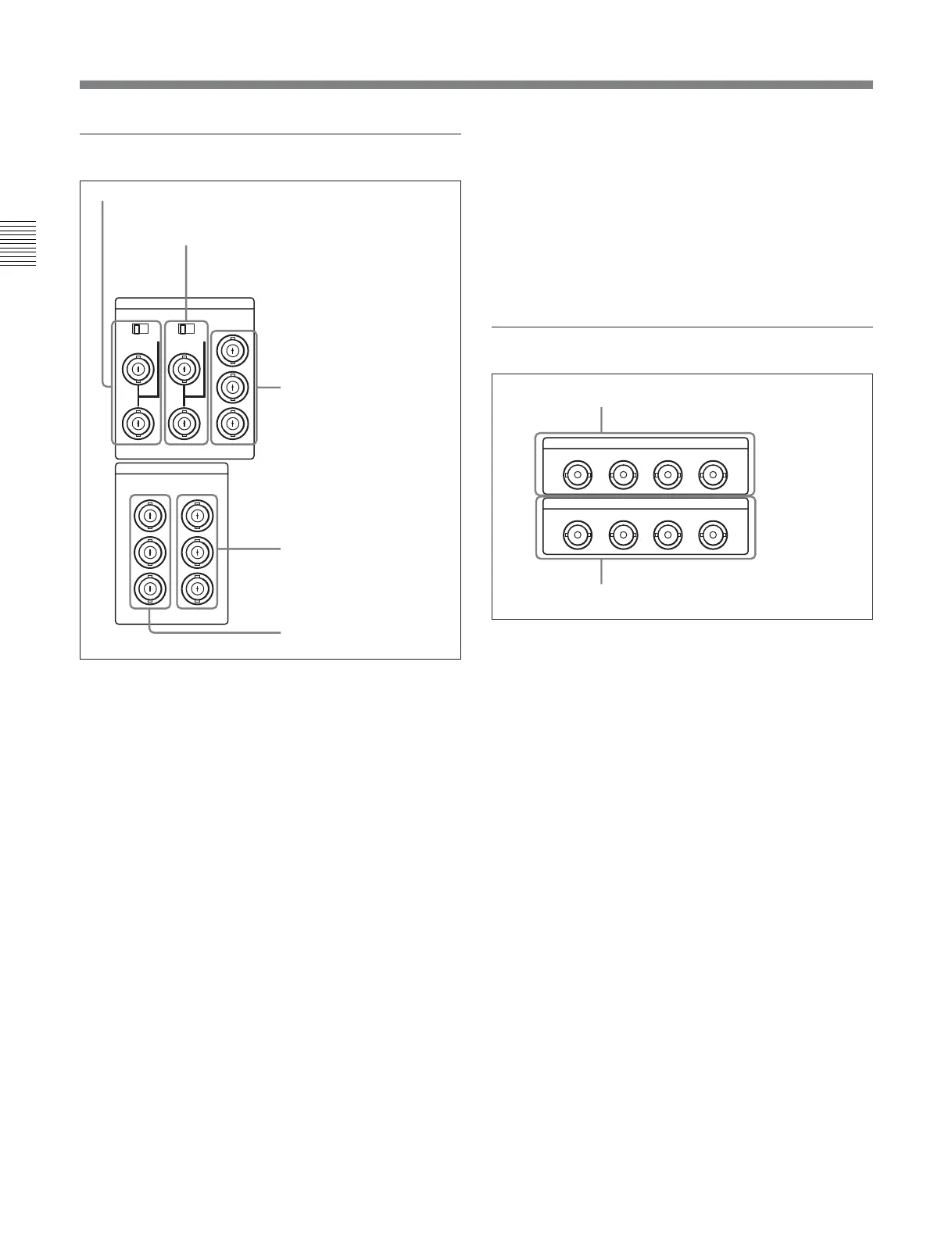

2-2 Connector Panel
2 Analog video input/output section
1 REF. (reference) VIDEO INPUT connectors
(BNC type) and 75 Ω termination switch
Input a reference video signal. Input a video signal
with chroma burst (VBS) or a monochrome video
signal (VS). When using the loop-through connection
set the switch to the OFF position, and otherwise to the
ON position.
2 COMPOSITE VIDEO INPUT connectors (BNC
type) and 75 Ω termination switch
Input analog composite video signals.
When using the loop-through connection set the switch
to the OFF position, and otherwise to the ON position.
3 COMPONENT VIDEO INPUT connectors
(BNC type)
Input analog component video signals (Y/R–Y/B–Y).
4 COMPONENT VIDEO OUTPUT connectors
(BNC type)
These connectors output analog component video
signals (Y/R–Y/B–Y).
75 75
VIDEO INPUT
REF.VIDEO COMPOSITE COMPONENT
OFF ON OFF ON
B-Y
R-Y
Y
VIDEO OUTPUT
COMPOSITE COMPONENT
3
(SUPER)
2
1
B-Y
R-Y
Y
1 REF.VIDEO INPUT connectors and 75 Ω termination switch
2 COMPOSITE VIDEO INPUT connectors
and 75 Ω termination switch
3 COMPONENT VIDEO
INPUT connectors
4 COMPONENT VIDEO
OUTPUT connectors
5 COMPOSITE VIDEO
OUTPUT connectors
5 COMPOSITE VIDEO OUTPUT connectors
(BNC type)
These connectors output analog composite video
signals.
When the setting of F4 (CHARA) in function menu
page 4 is ON, connector 3 (SUPER) outputs a signal
with superimposed time code, menu settings, alarm
messages, and other text information.
3 Digital audio input/output section
1 AUDIO INPUT (AES/EBU) connectors (BNC
type)
Input up to four sets (8 channels: channels 1/2, 3/4, 5/6
and 7/8) of AES/EBU format digital audio signals.
2 AUDIO OUTPUT (AES/EBU) connectors (BNC
type)
These connectors output up to four sets (8 channels:
channels 1/2, 3/4, 5/6 and 7/8) of AES/EBU format
digital audio signals.
AUDIO INPUT(AES/EBU)
CH1/2 CH3/4 CH5/6 CH7/8
AUDIO OUTPUT(AES/EBU)
CH1/2 CH3/4 CH5/6 CH7/8
1 AUDIO INPUT (AES/EBU) connectors
2 AUDIO OUTPUT (AES/EBU) connectors
To Next Page
