Sony MSW-M2000 - Chapter 3 Preparations; 3-1 Connections to External Devices

Chapter 3 Preparations
Chapter 3 Preparations 3-1
This unit can input serial digital signals (video and
audio) from another digital VTR such as the DNW-75/
75P/65/65P, DNW-A75/A75P/A65/A65P and DVW-
REMOTE-IN(9P)
REMOTE 1-OUT(9P)
SDI OUTPUT
SDI OUTPUT 3
(SUPER)
SDI INPUT
REF. VIDEO INPUT
REF. VIDEO INPUT
3-1 Connections to External Devices
Chapter 3 Preparations

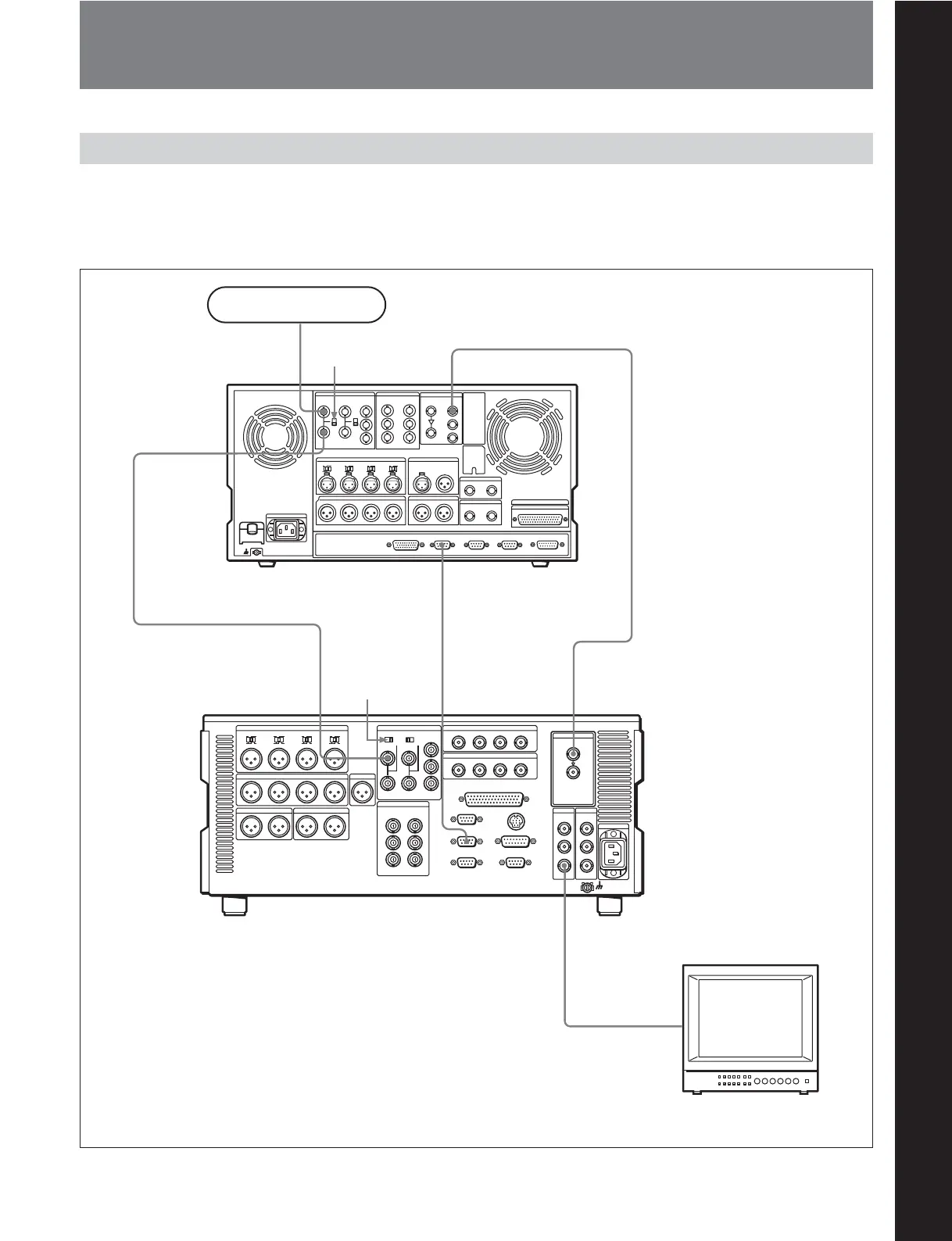

3-1-1 Connections to Digital Devices
Reference signal
DNW-A75/A75P (player)
A500/A500P/500/500P. The following example shows
the connections with a DNW-A75/A75P unit as a
player, with this unit used as recorder.
75Ω termination
switch: ON
75 Ω termination
switch: OFF
MSW-A2000/A2000P/M2000/M2000P/2000/
M2000E/M2000EP (recorder)
a)
BVM-1454 series video
monitor
a) The figure shows the MSW-M2000/M2000P.
