Sony MZ-N505 Service Manual

56
MZ-N505

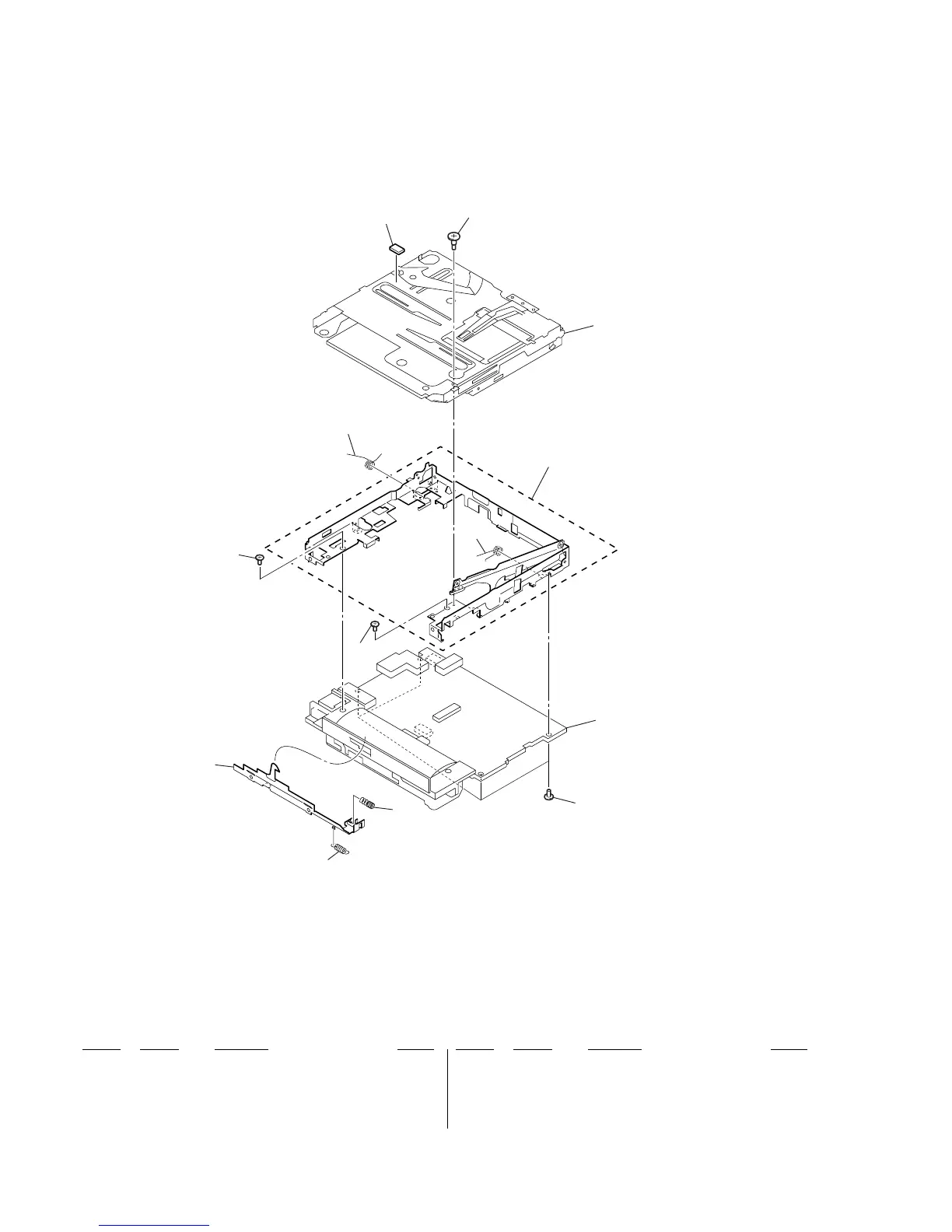

7-2. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 3-237-072-01 SCREW (MD), STEP
52 3-238-127-01 SPACER (HOLDER)
53 X-3381-385-1 CHASSIS (5188) ASSY, SET
54 3-237-083-01 SPRING (POP UP-R), TORSION
55 3-237-075-01 SPRING (POP UP-L), TORSION
57 3-318-382-91 SCREW (1.7X2.5), TAPPING
58 3-237-080-01 SLIDER, OPEN
59 3-237-082-11 SPRING (LOCK), TENSION
60 3-237-081-01 SPRING (LIMITTER), COMPRESSION
61 3-335-797-01 SCREW (M1.4X2), TOOTHED LOCK
MT-MZN707-177
main board section
51
52
55
53
57
57
54
60
61
59
58

Sony MZ-N505 Specifications

Power

input voltage	3 V
power requirements	AC Adaptor (AC-ES305)
battery type	AA Alkaline

Battery Life

battery life SP mode	42 hrs
battery life LP2 mode	48 hrs
battery life LP4 mode	56 hrs

Audio Specifications

sampling frequency	44.1 kHz
frequency response	20-20, 000Hz +/-3dB
data compression method	ATRAC/ATRAC3

Weight and Dimensions

weight	104 g
width	81.0 mm
height	74.4 mm
depth	27.9 mm
