— 86 —
Mechanism deck
51
52
52
53
54
55
56
57
58
59
59
59
60
61
62
63
64
65
66
67
not
supplied
71
68
69
70

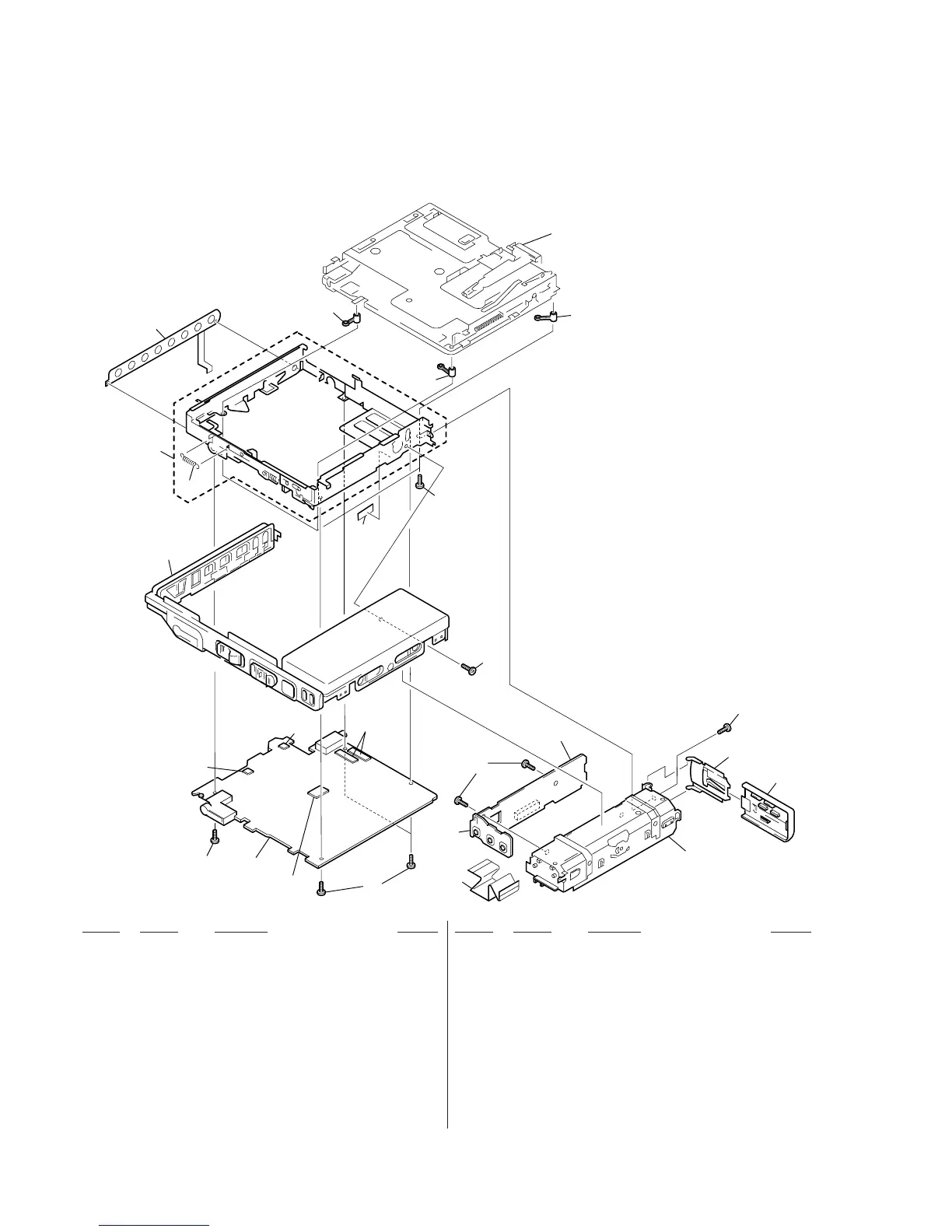

7-2. MAIN BOARD SECTION
51 A-3293-769-A MAIN BOARD ASSY
52 3-335-797-91 SCREW (M1.4), TOOTHED LOCK
53 4-995-436-01 SCREW (HP), STEP
54 X-4949-155-1 BELT ASSY, ORNAMENTAL
55 4-995-437-01 SCREW (DAMPER)
56 X-4949-154-1 CHASSIS (MAIN ST) ASSY
57 4-995-402-01 SPRING (LOCK), TENSION
58 1-475-368-11 SW UNIT
59 4-995-435-01 DAMPER (R50)
60 3-349-825-51 SCREW
* 61 1-667-219-11 SW BOARD
62 A-3293-770-A POWER BOARD ASSY
63 1-782-708-11 WIRE (FLAT TYPE) (20 CORE)
64 X-4949-116-1 CASE ASSY, BATTERY
65 4-963-883-61 SCREW (M1.4), PRECISION PAN
66 4-995-432-01 HINGE, BATTERY
67 4-995-722-01 LID, BATTERY CASE
68 4-998-405-01 SHEET (CLV)
69 4-998-407-01 HIMERON TAPE (DAMPER)
70 4-998-844-01 SHEET (SW)
71 4-998-406-01 SHEET (LCD)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
