72
1 VOL (volume) dial (23)
Adjusts the volume.
2 PHONES jack (23)
Used when connecting
headphones.
3 PCM/MPEG/DOLBY DIGITAL
connector (50, 51)
Connects to an audio component
using the optical digital cable.

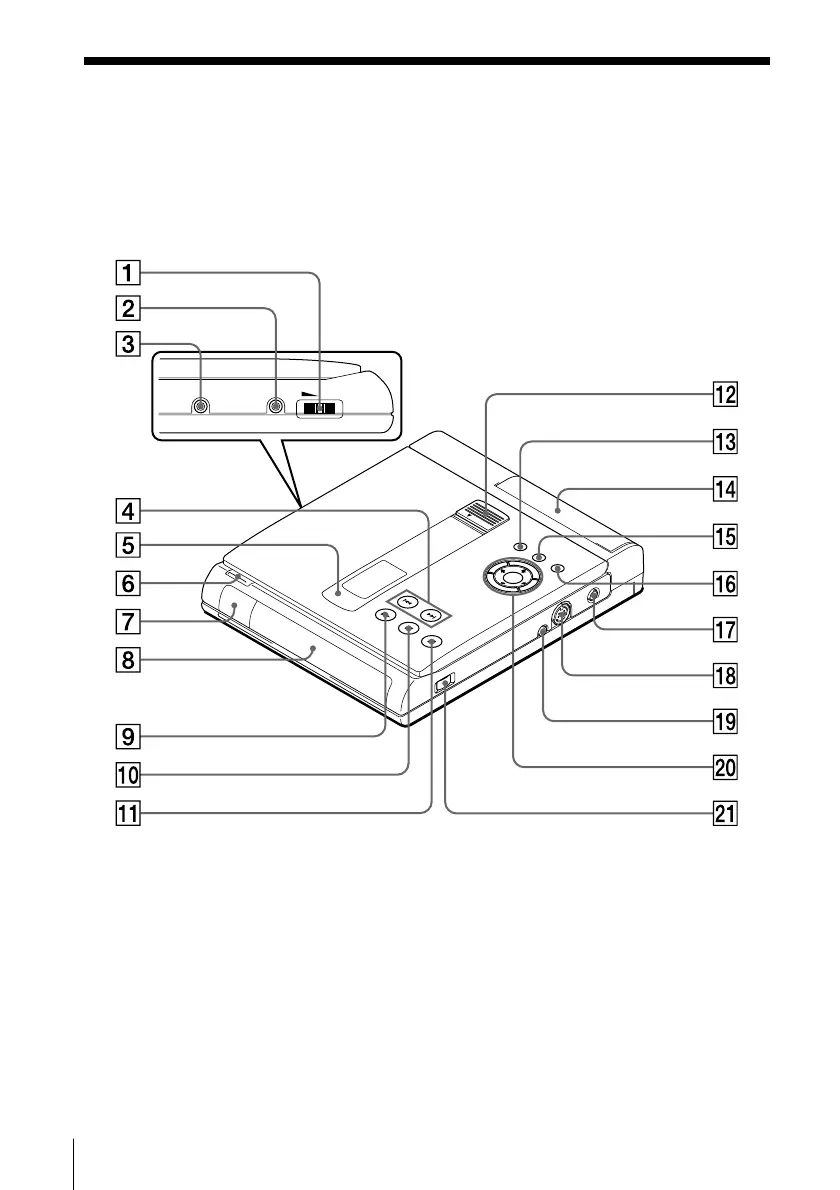

Index to parts and
controls
Refer to the pages indicated in parentheses for details.
Front and side panel
4 =/+ (previous/next)
buttons (16, 24)
Go back/forward to the
previous/next chapter or track,
or to search.
5 POWER indicator (14, 22)
Lights up in green when turning
on the power.
DIGITAL OUT (OPTICAL)
PCM/MPEG/
DOLBY DIGITAL
PHONES VOL
