Specifications
21
MPEG IMX: 4 ch/24 bits/48 kHz or
4 ch/16 bits/48 kHz
DVCAM: 4 ch/16 bits/48 kHz
Recording Format (Proxy Video)
MPEG-4
Recording Format (Proxy Audio)
A-law (4 ch/8 bits/8 kHz)
Recording/Playback Time (MPEG HD422)
50 Mbps:
Approx. 95 min (PFD50DLA)
Approx. 43 min (PFD23A)
Recording/Playback Time (MPEG HD)
35 Mbps, 4-ch audio:
More than 145 min (PFD50DLA)
More than 65 min (PFD23A)
35 Mbps, 2-ch audio (playback only):
More than 150 min (PFD50DLA)
More than 68 min (PFD23A)
25 Mbps, 4-ch audio:
Approx. 190 min (PFD50DLA)
Approx. 85 min (PFD23A)
25 Mbps, 2-ch audio (playback only):
Approx. 200 min (PFD50DLA)
Approx. 90 min (PFD23A)
18 Mbps, 4-ch audio (playback only):
More than 248 min (PFD50DLA)
More than 112 min (PFD23A)
18 Mbps, 2-ch audio (playback only):
More than 265 min (PFD50DLA)
More than 122 min (PFD23A)
Recording/Playback Time (MPEG IMX)
50 Mbps:
Approx. 100 min (PFD50DLA)
Approx. 45 min (PFD23A)
40 Mbps:
Approx. 120 min (PFD50DLA)
Approx. 55 min (PFD23A)
30 Mbps:
Approx. 150 min (PFD50DLA)
Approx. 68 min (PFD23A)
Recording/Playback Time (DVCAM)
25 Mbps:
Approx. 185 min (PFD50DLA)
Approx. 85 min (PFD23A)

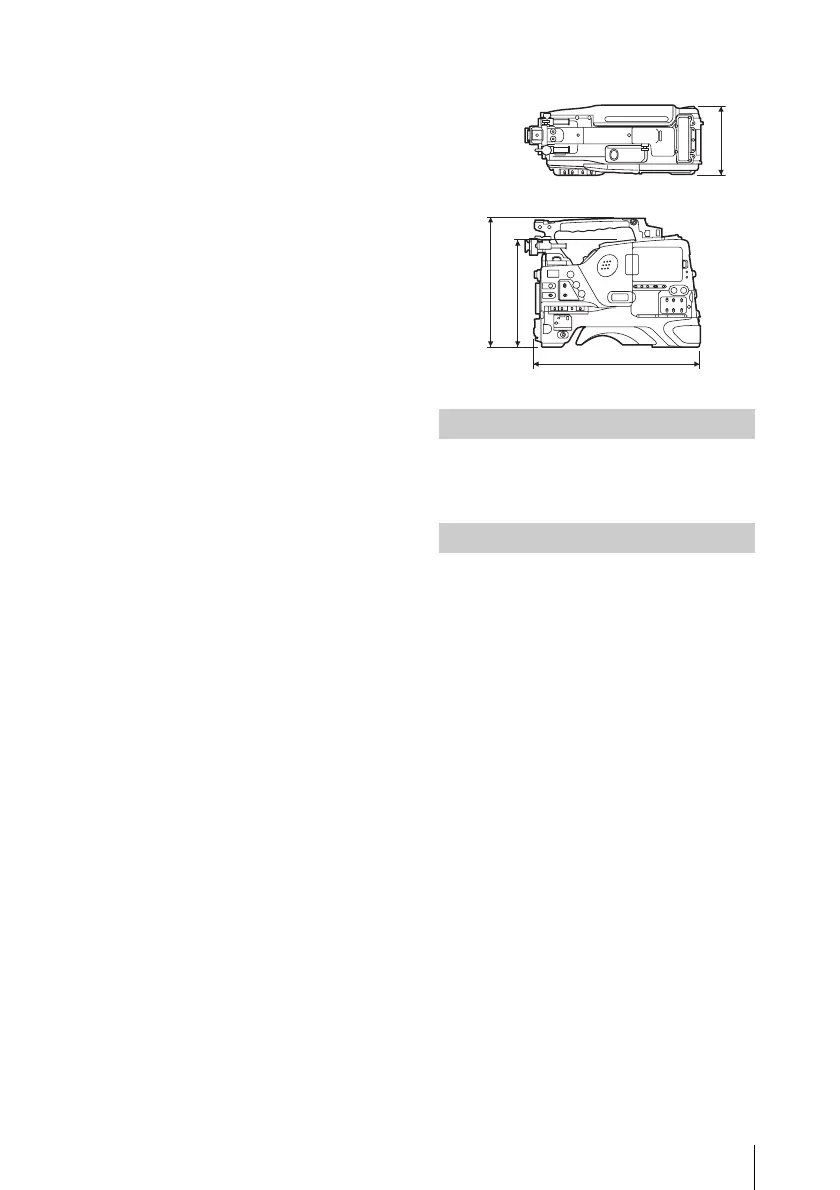

Dimensions in mm (inches)
Lens Mount
2
/
3
-inch type 48 bayonet mount
Genlock Input
BNC (×1), 1.0 Vp-p, 75 Ω
Timecode Input
BNC (×1), 0.5 Vp-p to 18 Vp-p, 10 kΩ
SDI Input
With CBK-HD01, BNC (×1)
HD/SD switchable;
HD-SDI: SMPTE 292M (with
embedded audio)
SD-SDI: SMPTE 259M (with embedded
audio)
Audio Input
CH-1/CH-2: XLR-type 3-pin (female)
(×2), Line/Mic/Mic +48V/AES/EBU
selectable
Mic Input
XLR-type 5-pin (female, stereo) (×1)
Test Output
BNC (×1), switchable;
HD: Y
SD: composite (character on/off)
Lens
Input/Output
222(8
3
/
4
)
269(10
5
/
8
)
124(5)
332(13
1
/
8
)
