Sony PMC-D305 - CASE (LOWER) SECTION

– 22 –

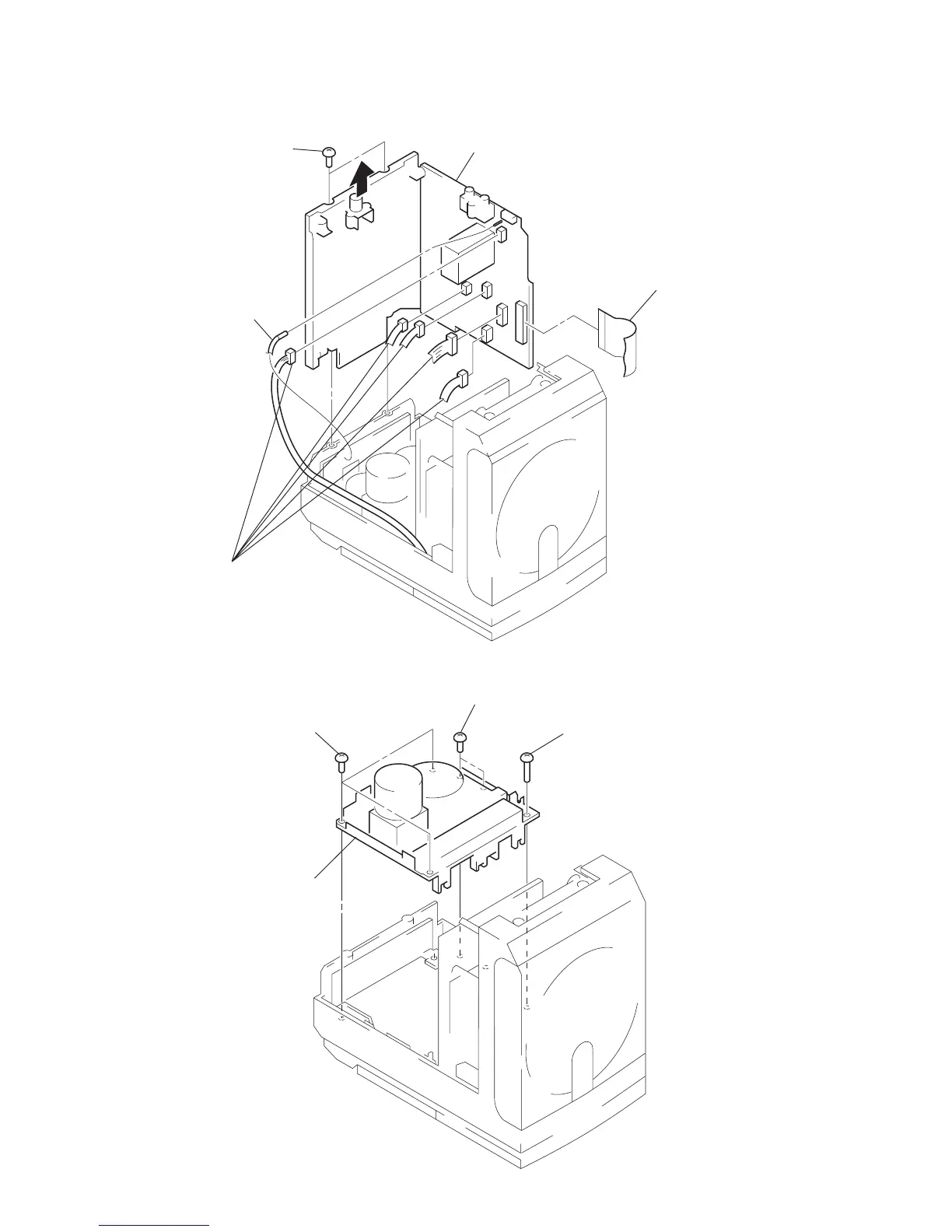

CASE (LOWER) SECTION
TAPE MECHANISM DECK SECTION
2 five connectors
(CN301, CNP302, 304, 306, 307)
3 earth lead
4 two screws
(BVTP 3
× 10)
5 cabinet (lower) section
1 Parallel wire (27 core)
(CN303)
2 three screws
(BVTP 3
× 10)
2 screw
(BVTP 3
× 10)
3 tape mechanism
deck section
1 three screws
(P 2.6
× 8)
