Sony PMC-D305 - CASE AND FRONT CABINET VIEWS

– 76 –
SECTION 7
EXPLODED VIEWS
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

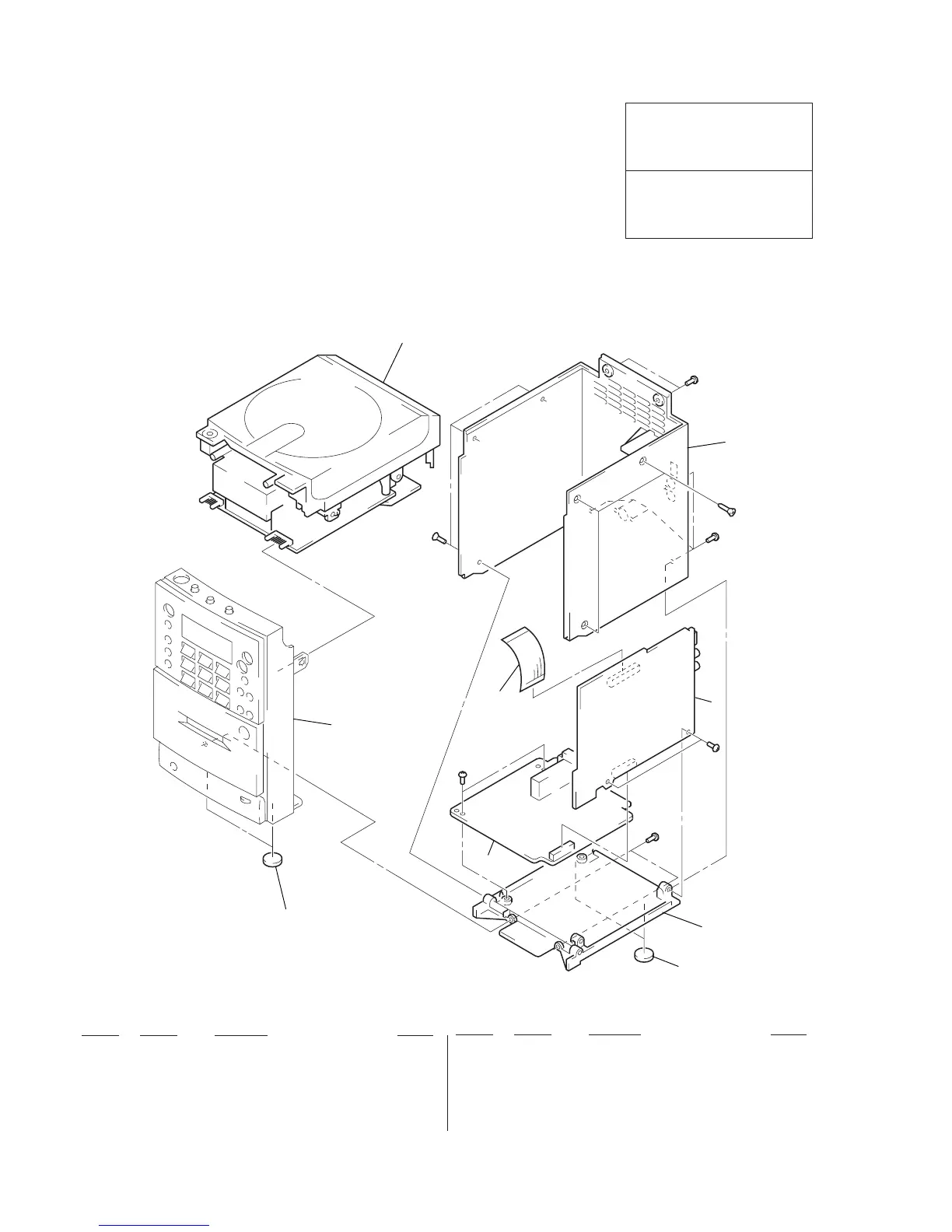

(1) CASE SECTION
CD cabinet section
front cabinet
section
1
2
3
5
6
1
4
#2
#1
#1
#1
#1
#2
#1
1 3-014-503-01 FOOT
* 2 A-3306-626-A TUNER BOARD, COMPLETE (D305L)
* 2 A-3306-831-A TUNER BOARD, COMPLETE (D305: AUS)
* 2 A-3306-834-A TUNER BOARD, COMPLETE
(D305: US, CND, E)
3 1-782-296-11 WIRE, PARALLEL (FFC) (27 CORE)
4 3-014-125-01 CABINET (REAR)
* 5 A-3306-627-A AUDIO BOARD, COMPLETE (D305L)
* 5 A-3306-835-A AUDIO BOARD, COMPLETE (D305)
6 3-014-127-01 CASE (LOWER)
• Abbreviation
CND : Canadian CET : East European, Russian
IT : Italian AUS : Australian
