Sony PMC-D305 - Page 53

– 77 –
#4
#3
#3
#3
#5
#1
#3
#1
MF-D305
#1
#3
#
6
56
55
53
54
52 51
66
65
64
63
62
60
61
59
58
57
67
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-3373-799-1 LID (TERMINAL) ASSY
52 X-3373-798-1 LID (CASSETTE) ASSY (D305L)
52 X-3374-255-1 LID (CASSETTE) ASSY (D305)
53 X-3373-797-1 PANEL (FRONT) ASSY (D305L)
53 X-3374-254-1 PANEL (FRONT) ASSY (D305)
54 3-014-091-01 BUTTON (MAIN)
55 3-014-090-01 CABINET (FRONT)
56 3-014-092-01 BUTTON (UPPER)
* 57 1-666-185-11 SW (B) BOARD
* 58 1-666-184-11 SW (A) BOARD
59 3-014-097-01 PLATE (CASSETTE), LOCK
60 3-014-098-01 RETAINER (CASSETTE), LOCK
61 3-013-735-01 SPRING (CASSETTE LOCK)
62 3-014-100-01 HOLDER (TERMINAL)
* 63 A-3306-625-A LINE BOARD, COMPLETE (D305L)
* 63 A-3306-833-A LINE BOARD, COMPLETE (D305)
64 3-014-102-01 SPRING (CASSETTE)
65 3-014-096-01 HOLDER (CASSETTE)
66 3-014-103-01 SPRING (TERMINAL LID)
67 3-343-248-01 DAMPER (P), SMALL

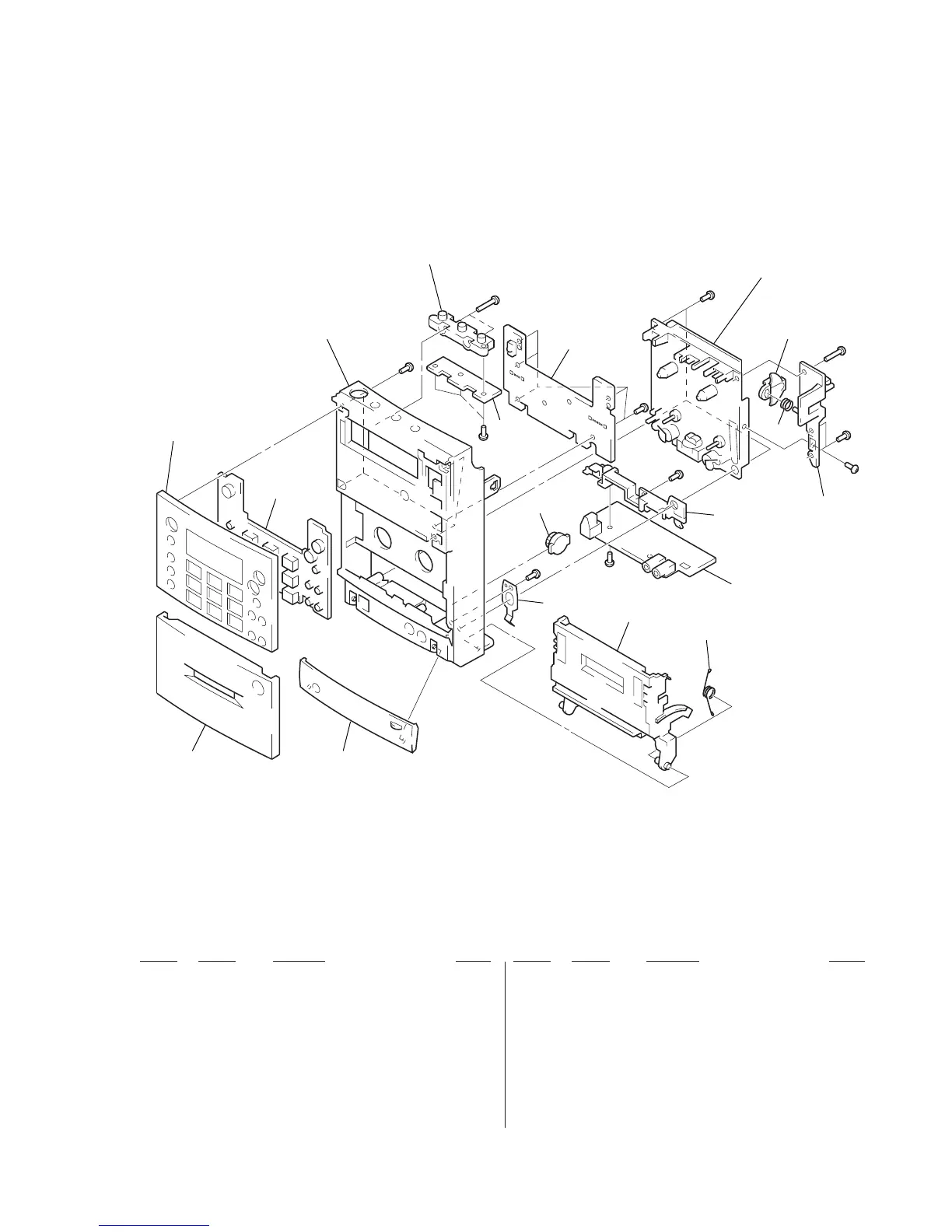

(2) FRONT CABINET SECTION
