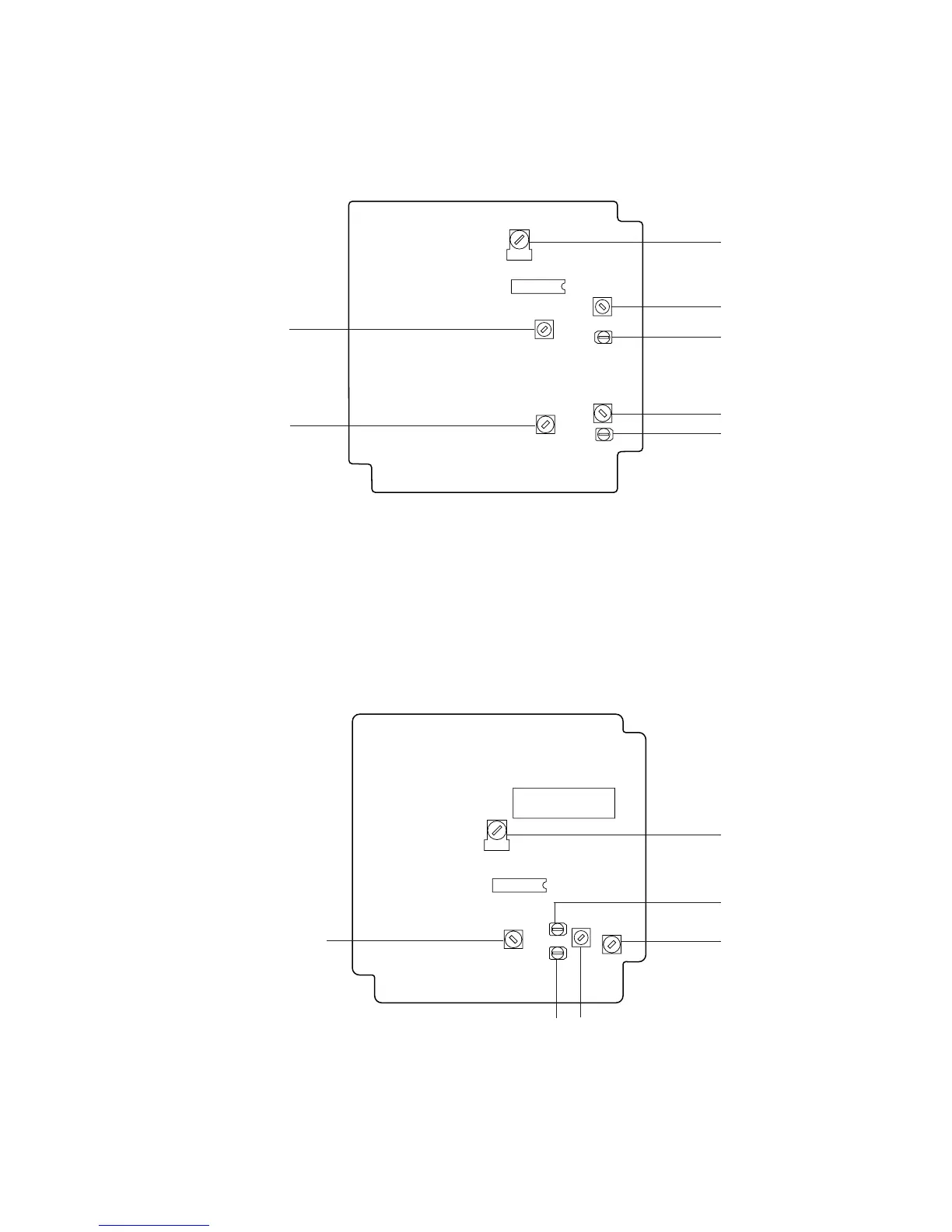

Adjustment Location:
• PMC-D305
[TUNER BOARD]
(Component Side)
[TUNER BOARD]
(Component Side)
• PMC-D305L
IC1
CFT1
AM IF Adjustment
L1
CT1





FM Tracking
Adjustment
L3
CT2



AM Tracking
Adjustment
L2
FM Frequency
Coverage
Adjustment
L4
AM Frequency
Coverage
Adjustment
TU1
IC1
CFT1
AM IF Adjustment
CT5
L5
LW Tracking
Adjustment
CT4
L3
    
MW Tracking
Adjustment
L4
MW/LW Frequency
Coverage
Adjustment







