LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
1. Turn POWER switch on with to disc inserted and make Func-
tion switch to CD position.
2. Open the lid for CD.

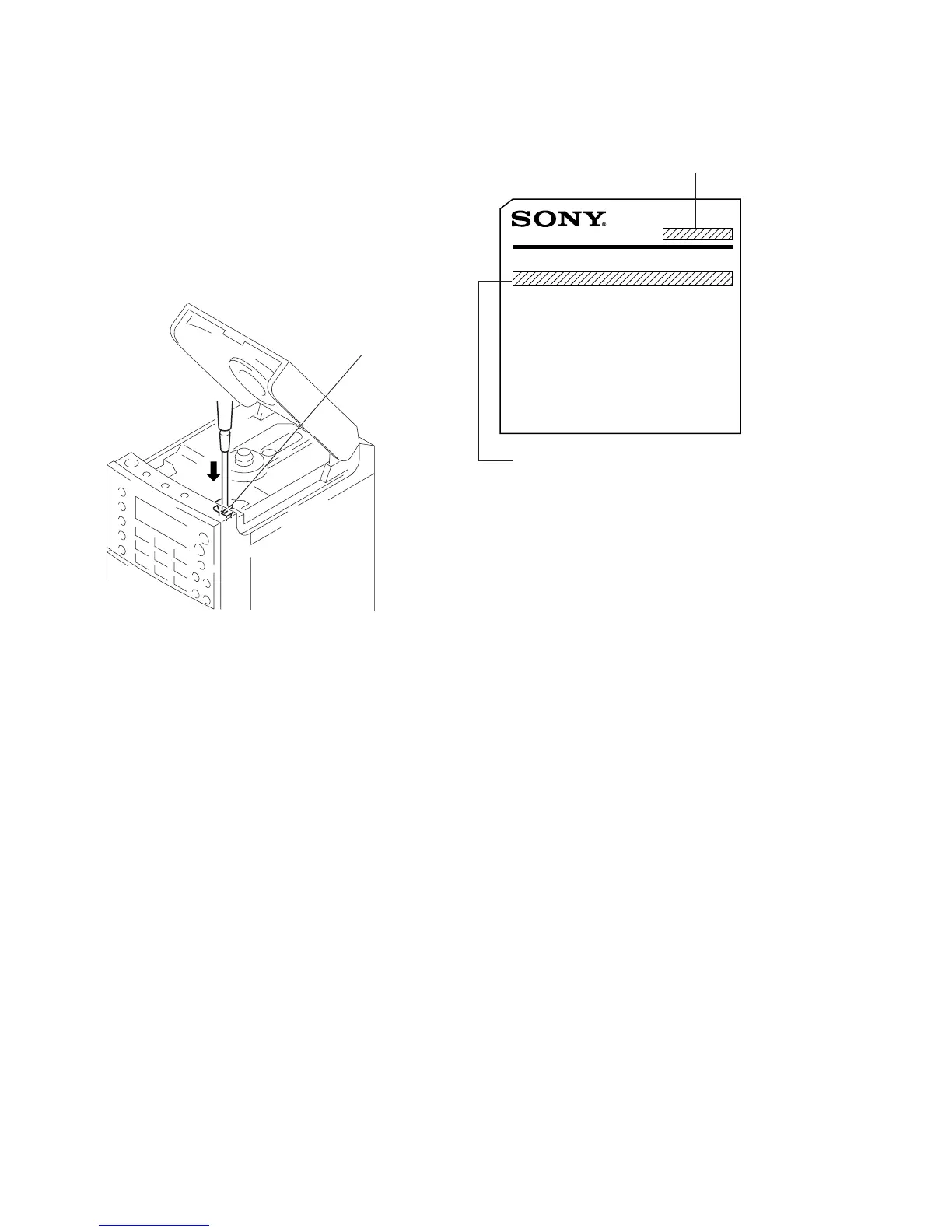

3. Turn on S801 as following figure.
4. Press the · button.
5. Confirm the laser diode emission while observing the objecting
lens. When there is no emission, Auto Power Control circuit or
Optical Pick-up is broken.
Objective lens moves up and down three times for focus search.
HOW TO CHANGE THE FM CERAMIC FILTERS
This model is used two ceramic filters of CF1, 2 and CF3.
Therefore, the ceramic filter must change two pieces together since
it's supply two pieces in one package as a spare parts.
S801
PERSONAL COMPONENT SYSTEM
MADE IN INDONESIA
MODEL. No.
MODEL IDENTIFICATION
– Model Number Label – Carved on rear cabinet
PMC-D305
PMC-D305L
US, Canadian, E models
AC: 120 V 60 Hz 35 W
AEP, UK, Italian, CET, Australian models
AC: 230 V
⁄
50 Hz 35 W
• Abbreviation
CET: East European, Russian
To Next Page
