Sony PRS-350 - Main Board

PRS-350
5

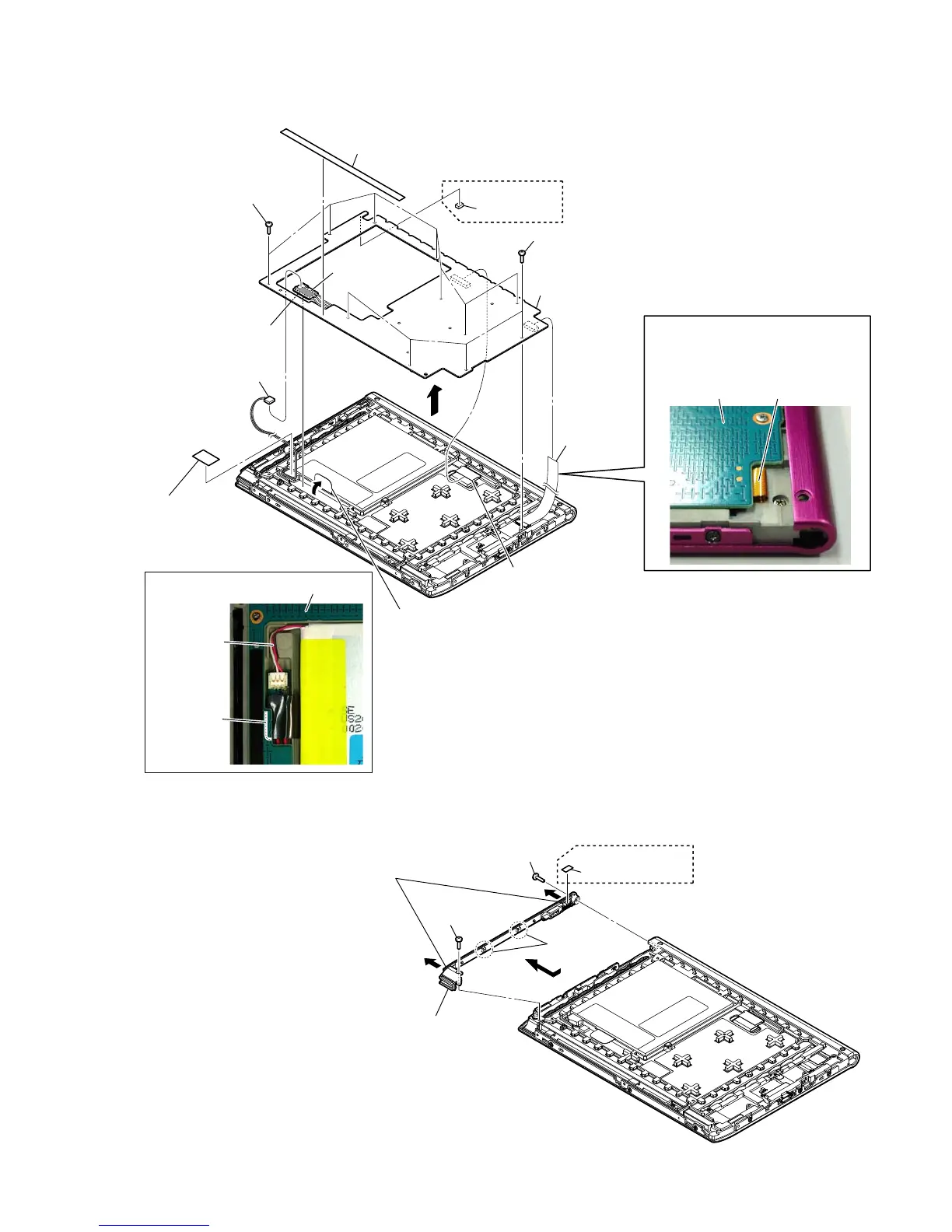

2-5. MAIN BOARD
2 Turn over the sheet (BATT).
3 battery connector
BATT board
9 sheet (stylus)
0 sheet (LED)
qa MAIN board (including BATT board)
7 ink indicator element
flexible board
8 23 pin FPC
23 pin FPC
5 adhesive
(CONN_PWB)
6
4 seven screws
(M1.4)
4 four screws
(M1.4)
MAIN board
– Rear side view –
Note: The state of the 23 pin FPC when the
MAIN board is installed must curve.
Do not dig into under the MAIN board
and do not bend.
(for PINK)
1 sheet (cable)
sheet (BATT)
battery wire
MAIN board
:LUHSURFHVVLQJ
2-6. ORNAMENT TOP ASSY
1 screw
(M1.4)
4
2 screw
(M1.4)
5 two claws
3 Shifting these parts of ornament top assy
slightly in the direction of arrow A and B.
7 ornament top assy
6 sheet (ornament)
A
B
– Rear side view –
(for PINK)
