Sony PRS-350 - Case Upper Block; Chassis Assy

PRS-350
6

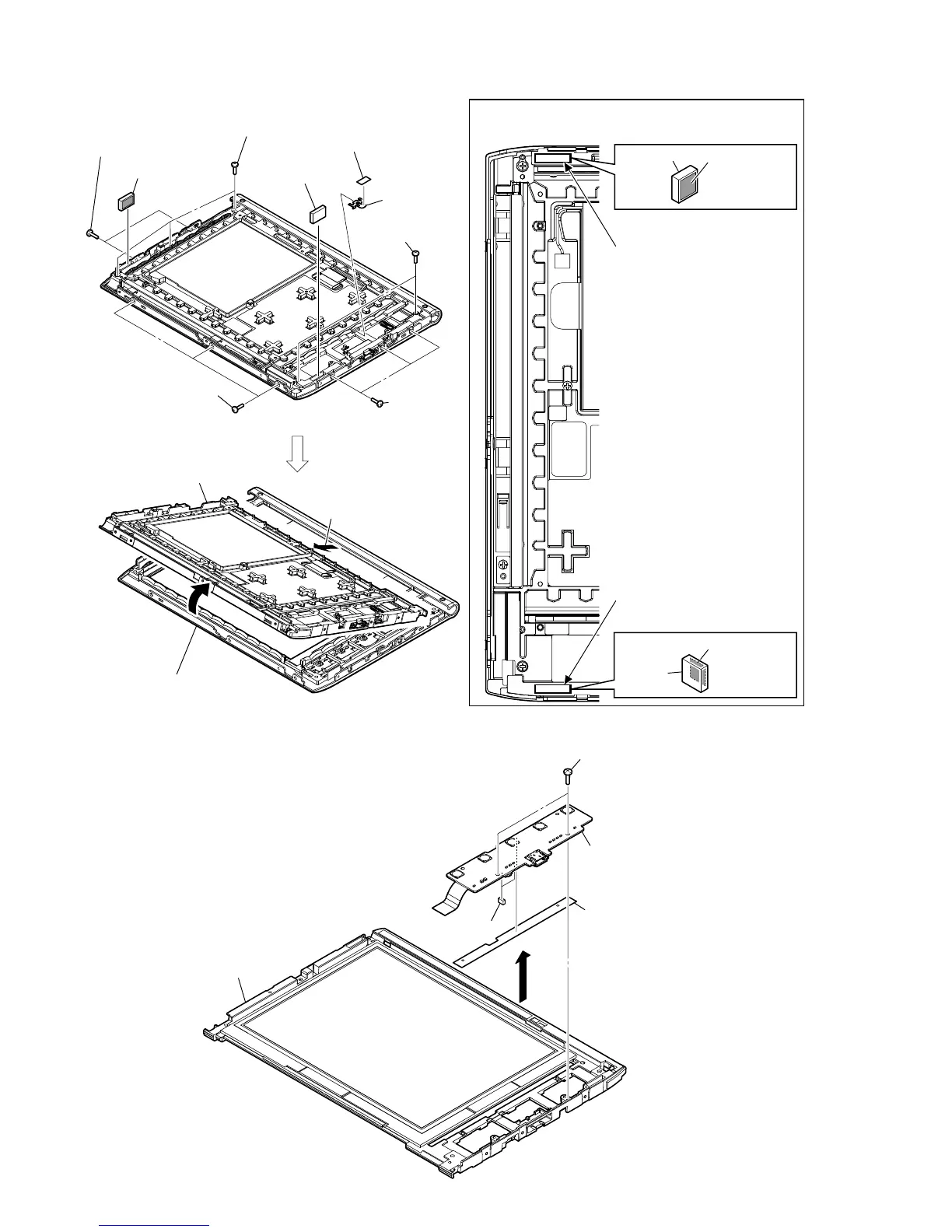

2-8. CHASSIS ASSY
1 two screws
(M1.4)
5 KEY board block
3 adhesive (SW_PWB)
4 two cushions
(stylus)
6 chassis assy
– Front side view –
2
2-7. CASE UPPER BLOCK
8 chassis assy block
7
4 three step screws
5 three screws
(M1.4)
4 two step screws
4 three step
screws
1 magnet assy
1 magnet assy
3 plate
2 sheet (LED)
5 two screws
(M1.4)
9 case upper block
6
– Rear side view –
Note: When installing the magnet assy, note the position of
cushion (magnet) of the magnet assy.
cushion (magnet) side
cushion (magnet) side
cushion (magnet)
magnet
cushion (magnet)
magnet
