PS-LX430/430C€/431/431N/433

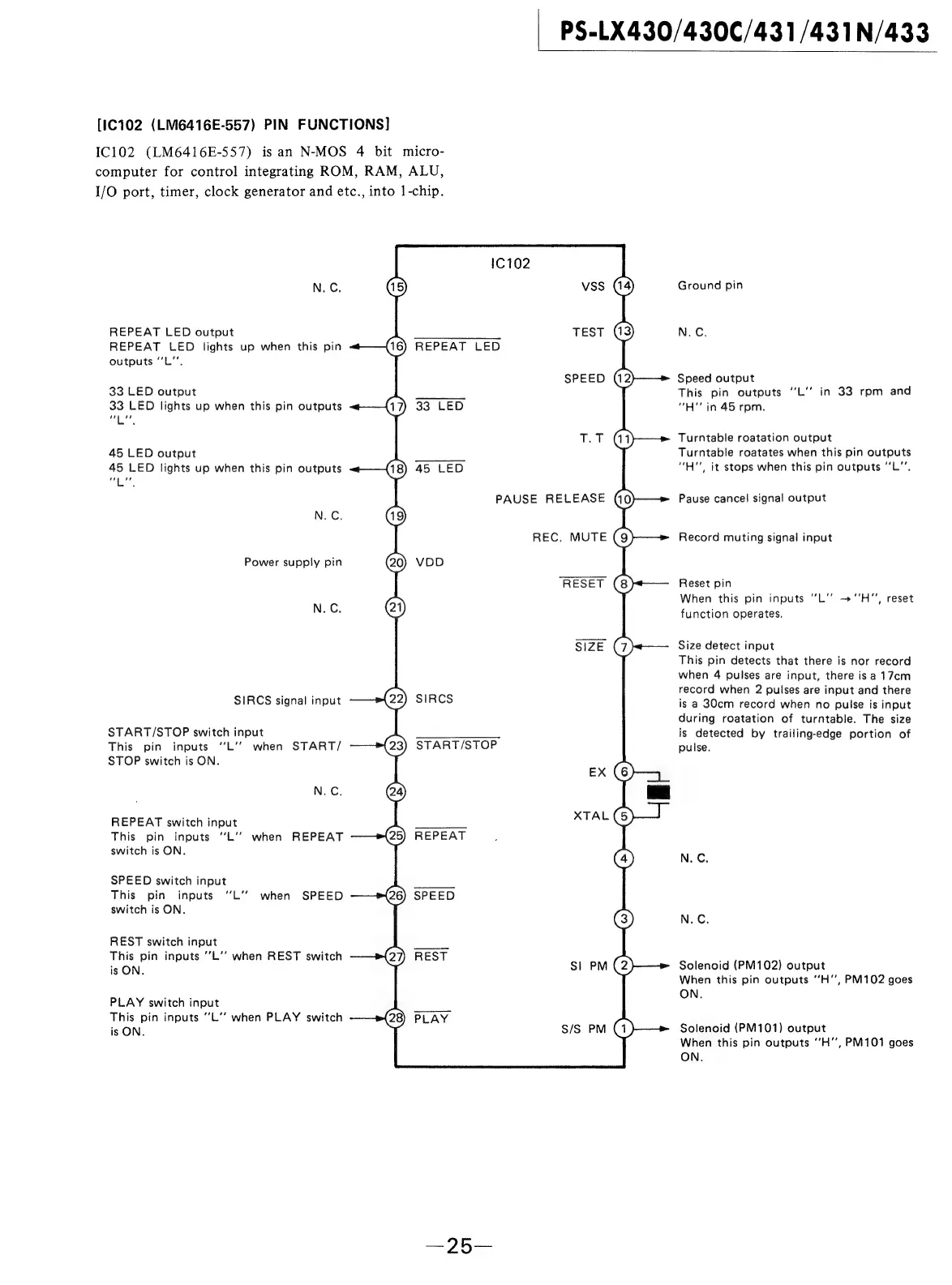

[1C102 (LM6416E-557) PIN FUNCTIONS]
IC102 (LM6416E-557) is an N-MOS 4 bit micro-
computer for control integrating ROM, RAM, ALU,
I/O port, timer, clock generator and etc., into 1-chip.
REPEAT LED output
REPEAT LED lights up when this pin
outputs “’L”’.
33 LED output
33 LED lights up when this pin outputs
ses Ceacars
45 LED output
45 LED lights up when this pin outputs
ir a
Power supply pin
N.C.
SIRCS signal input
START/STOP switch input
This pin inputs ‘‘L'’ when START/
STOP switch is ON.
REPEAT switch input
This pin inputs ‘L’’ when REPEAT
switch is ON.
SPEED switch input
This pin inputs “L’’ when SPEED
switch is ON.
REST switch input
This pin inputs ''L’’ when REST switch
is ON.
PLAY switch input
This pin inputs ‘’L’’ when PLAY switch
is ON.
REPEAT LED
PAUSE RELEASE
REC. MUTE
START/STOP
REPEAT
Ground pin
Speed output
This pin outputs ‘L’’ in 33 rpm and
"H'’ in 45 rpm.
Turntable roatation output
Turntable roatates when this pin outputs
“H'" it stops when this pin outputs “L"’.
Pause cancel signal output
Record muting signal input
Reset pin
When this pin inputs ‘L’’ -+’'H"’, reset
function operates.
Size detect input
This pin detects that there is nor record
when 4 pulses are input, there is a 17cm
record when 2 pulses are input and there
is a 30cm record when no pulse is input
during roatation of turntable. The size
is detected by trailing-edge portion of
pulse.
Solenoid (PM102) output
When this pin outputs ’’H’’, PM102 goes
ON.
Solenoid (PM101) output
When this pin outputs ‘'H’’, PM101 goes
ON.
