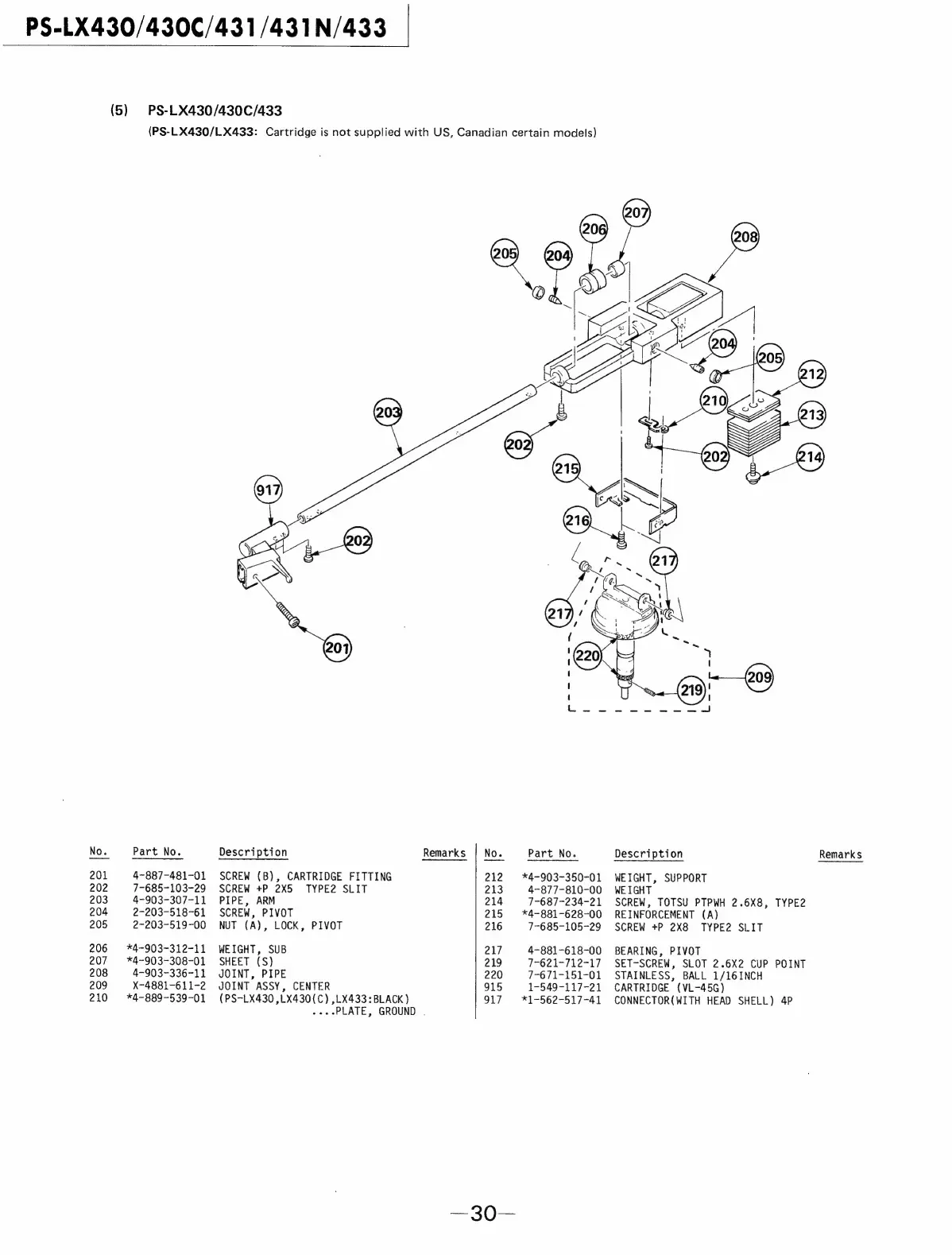

PS-LX430/430C€/431/431N/433
(5)
No.
201
202
203
204
205
206
207
208
209
210
PS-LX430/430C/433
(PS-LX430/LX433: Cartridge is not supplied with US, Canadian certain models)
Part No.
4~887-481-01
7-685-103-29
4-903-307-11
2-203-518-61
2-203-519-00
*4-903-312-11
*4-903-308-01
4-903-336-11
X-4881-611-2
*4-889-539-01
Description
SCREW (B), CARTRIDGE FITTING
SCREW +P 2X5 TYPE2 SLIT
PIPE, ARM
SCREW, PIVOT
NUT (A), LOCK, PIVOT
WEIGHT, SUB
SHEET (S)
JOINT, PIPE
JOINT ASSY, CENTER
(PS-LX430,LX430(C) ,LX433:BLACK)
.+eePLATE, GROUND |
—30—
Remarks
212
213
214
215
216
217
219
220
915
917
Part No.
*4-903-350-01
4-877-810-00
7-687-234-21
*4-881-628-00
7-685-105-29
4-881-618-00
7-621-712-17
7-671-151-01
1-549-117-21
*1-562-517-41
Description
Remarks
WETGHT, SUPPORT
WE TIGHT
SCREW, TOTSU PTPWH 2.6X8, TYPE2
REINFORCEMENT (A)
SCREW +P 2X8 TYPE2 SLIT
BEARING, PIVOT
SET-SCREW, SLOT 2.6X2 CUP POINT
STAINLESS, BALL 1/16INCH
CARTRIDGE (VL-45G)
CONNECTOR(WITH HEAD SHELL) 4P
