Sony PS-LX430 Service Manual

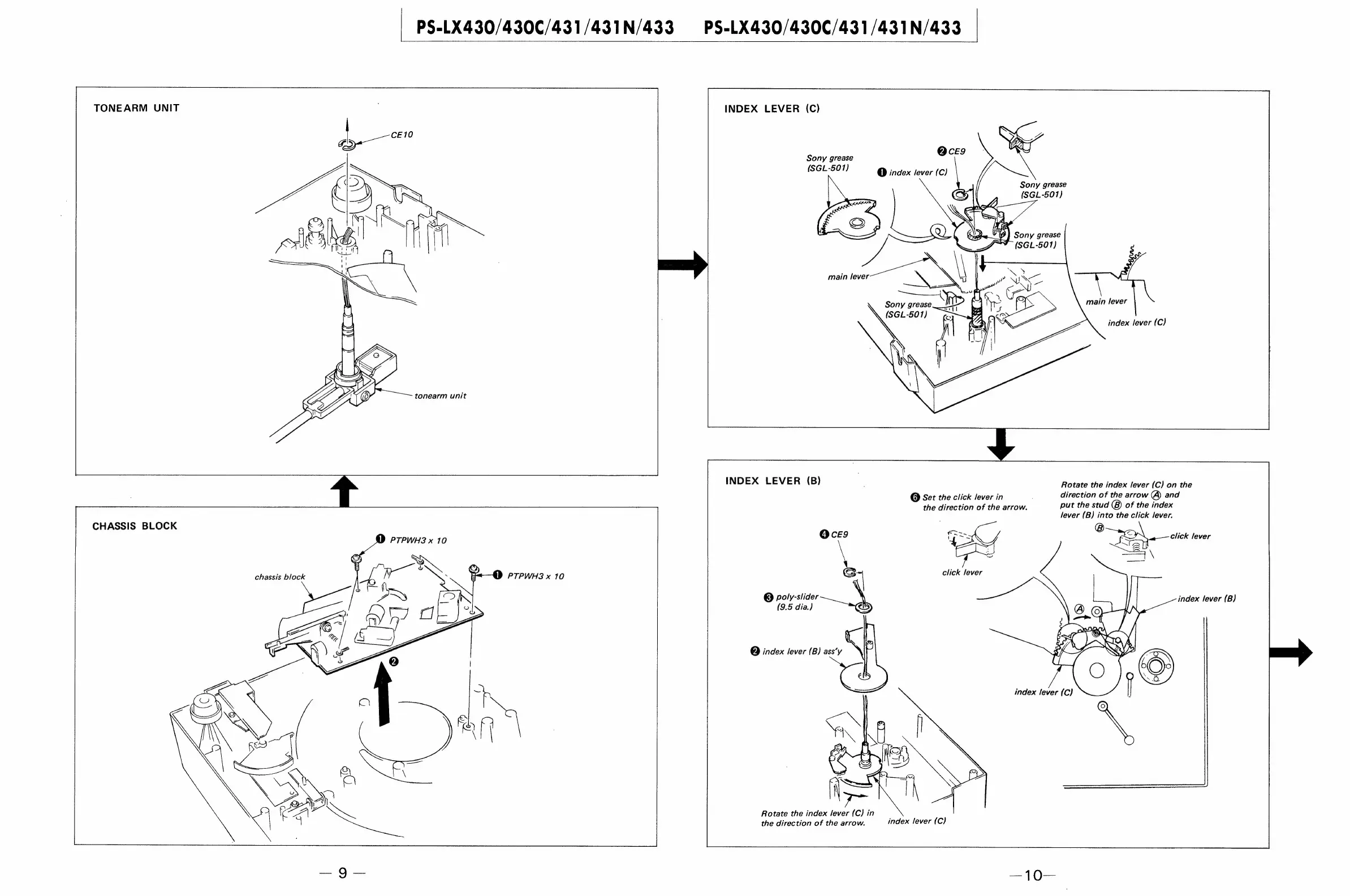

TONEARM UNIT
CHASSIS BLOCK
chassis block
| PS-LX430/430C/431/431N/433
tonearm unit
PTPWH3 x 10
PS-LX430/430€/431/431N/433
INDEX LEVER (C)
@cE9
Sony grease
(SGL-501)
@
index
lever
(C)
aN
main lever
PT
\
Sony grease
Xe L-501)
«\
INDEX LEVER (B)
@ Set the click lever in
the direction of the arrow.
QcE
at click lever
@ poly-slider \.
(9.5 dia.) ely
@ index lever (B) ass’y
Rotate the index lever (C) in
the direction of the arrow. index lever (C)
Sony grease
(SGL-501)
main lever
index lever (C)
Rotate the index lever (C) on the
direction of the arrow @ and
put the stud (6) of the index
lever (B) into the click lever.
On, .
= a— Click lever
index lever (B)
