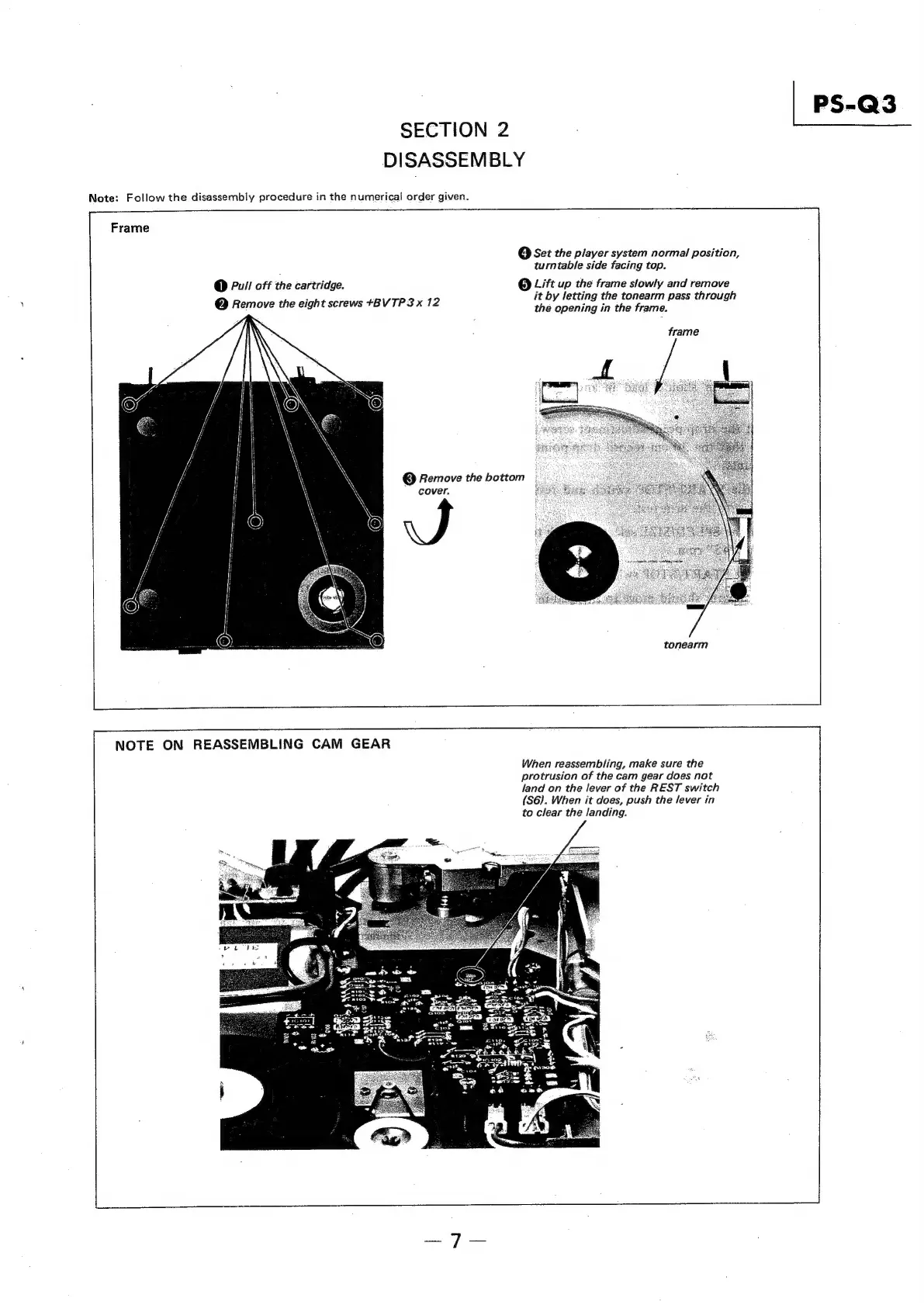

SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
O Set the player system normal position,
turntable side facing top.
@ Pull off the cartridge. @ Lift up the frame slowly and remove
. it by letting the tonearm pass through
@ Remove the eight screws +BVTP3 x 12 thé operilig in the frame.
frame
@ Remove the bottom
cover.
tonearm
NOTE ON REASSEMBLING CAM GEAR
When reassembling, make sure the
protrusion of the cam gear does not
land on the lever of the REST switch
{S6). When it does, push the lever in
to clear the landing.
