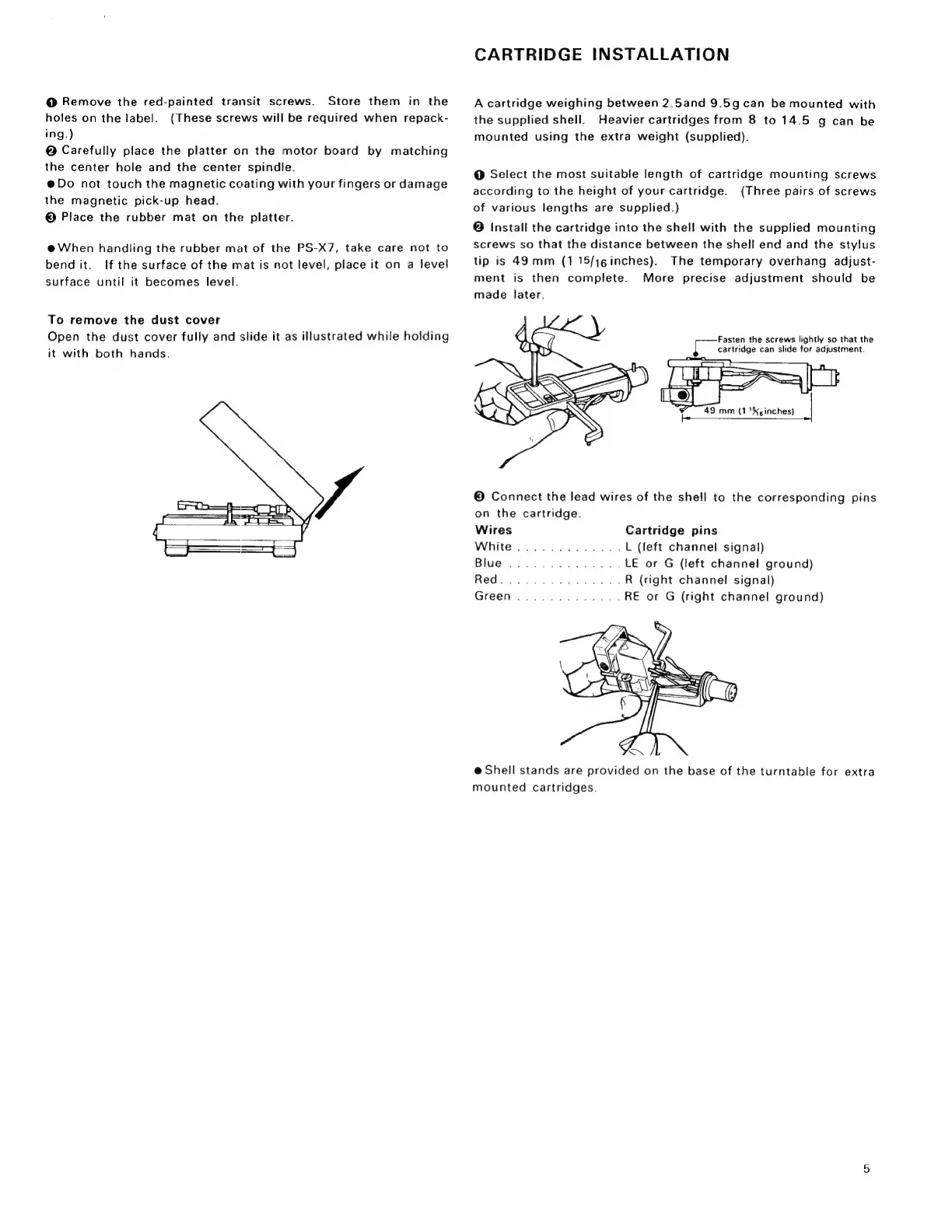

Sony PS-X6 - Cartridge Installation

@ Remove the red-painted transit screws. Store them in the
holes on the label. (These screws will be required when repack-
ing.)
@ Carefully place the platter on the motor board by matching
the center hole and the center spindle.
@Do not touch the magnetic coating with your fingers or damage
the magnetic pick-up head.
© Place the rubber mat on the platter.
e@ When handling the rubber mat of the PS-X7, take care not to
bend it. If the surface of the mat is not level, place it on a Jevel
surface until it becomes level.
To remove the dust cover
Open the dust cover fully and slide it as illustrated while holding
it with both hands.
a
on
CARTRIDGE INSTALLATION
A cartridge weighing between 2.5and 9.5g can be mounted with
the supplied shell. Heavier cartridges from 8 to 14.5 g can be
mounted using the extra weight (supplied).
@ Select the most suitable length of cartridge mounting screws
according to the height of your cartridge. (Three pairs of screws
of various lengths are supplied.)
@ Install the cartridge into the shell with the supplied mounting
screws so that the distance between the shell end and the stylus
tip is 49 mm (1 15/16 inches).
ment is then complete.
made later.
The temporary overhang adjust-
More precise adjustment should be
Fasten the screws lightly so that the
cartridge can slide for adjustment.
® Connect the lead wires of the shell to the corresponding pins
on the cartridge.
Wires Cartridge pins
Whites coe vee Sea Ss L (left channel signal)
BlU@)..0.25 a clatt ase idee LE or G (left channel ground)
Reding: gates Sa et nt R (right channel signal)
Green ............. RE or G (right channel ground)
@ Shell stands are provided on the base of the turntable for extra
mounted cartridges.
