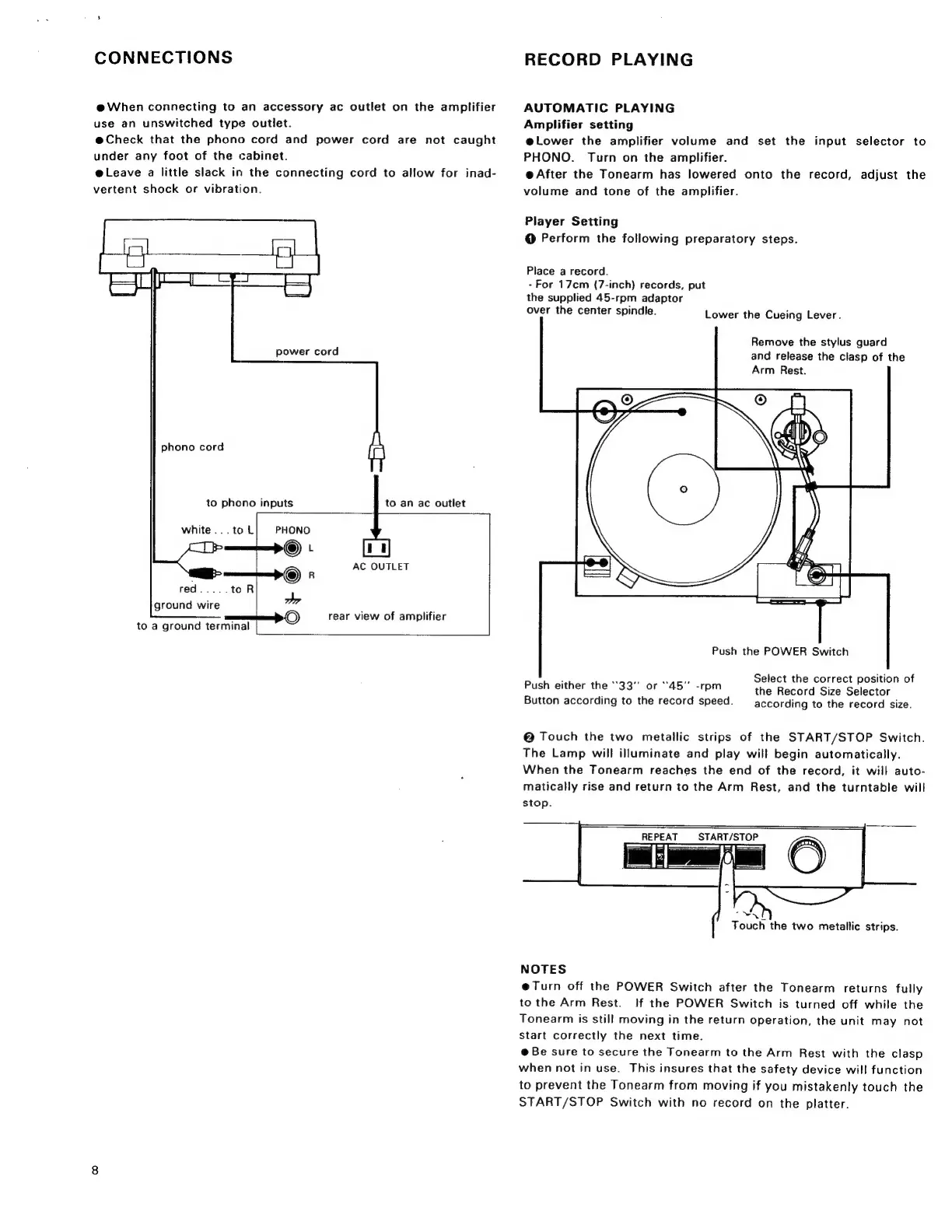

Sony PS-X6 - Connections; Record Playing; Automatic Playing; Player Setting

CONNECTIONS
@When connecting to an accessory ac outlet on the amplifier
use an unswitched type outlet.
@ Check that the phono cord and power cord are not caught
under any foot of the cabinet.
eLeave a little slack in the connecting cord to allow for inad-
vertent shock or vibration.
a
power cord
phono cord
to phono inputs to an ac outlet
PHONO
© +
white... to L
AC OUTLET
ground wire
. rear view of amplifier
to a ground terminal
RECORD PLAYING
AUTOMATIC PLAYING
Amplifier setting
@Lower the amplifier volume and set the input selector to
PHONO. Turn on the amplifier.
e@After the Tonearm has lowered onto the record, adjust the
volume and tone of the amplifier.
Player Setting
@ Perform the following preparatory steps.
Place a record.
- For 17cm (7-inch) records, put
the supplied 45-rpm adaptor
over the center spindle. Lower the Cueing Lever.
Remove the stylus guard
and release the clasp of the
Arm Rest.
Push the POWER Switch
Select the correct position of
the Record Size Selector
according to the record size.
Push either the "33" or “45” -rpm
Button according to the record speed.
@ Touch the two metallic strips of the START/STOP Switch.
The Lamp will illuminate and play will begin automatically.
When the Tonearm reaches the end of the record, it will auto-
matically rise and return to the Arm Rest, and the turntable will
stop.
START/STOP
REPEAT
-A}
Touch the two metallic strips.
NOTES
e@Turn off the POWER Switch after the Tonearm returns fully
to the Arm Rest. If the POWER Switch is turned off while the
Tonearm is still moving in the return operation, the unit may not
start correctly the next time.
@ Be sure to secure the Tonearm to the Arm Rest with the clasp
when not in use. This insures that the safety device will function
to prevent the Tonearm from moving if you mistakenly touch the
START/STOP Switch with no record on the platter.
