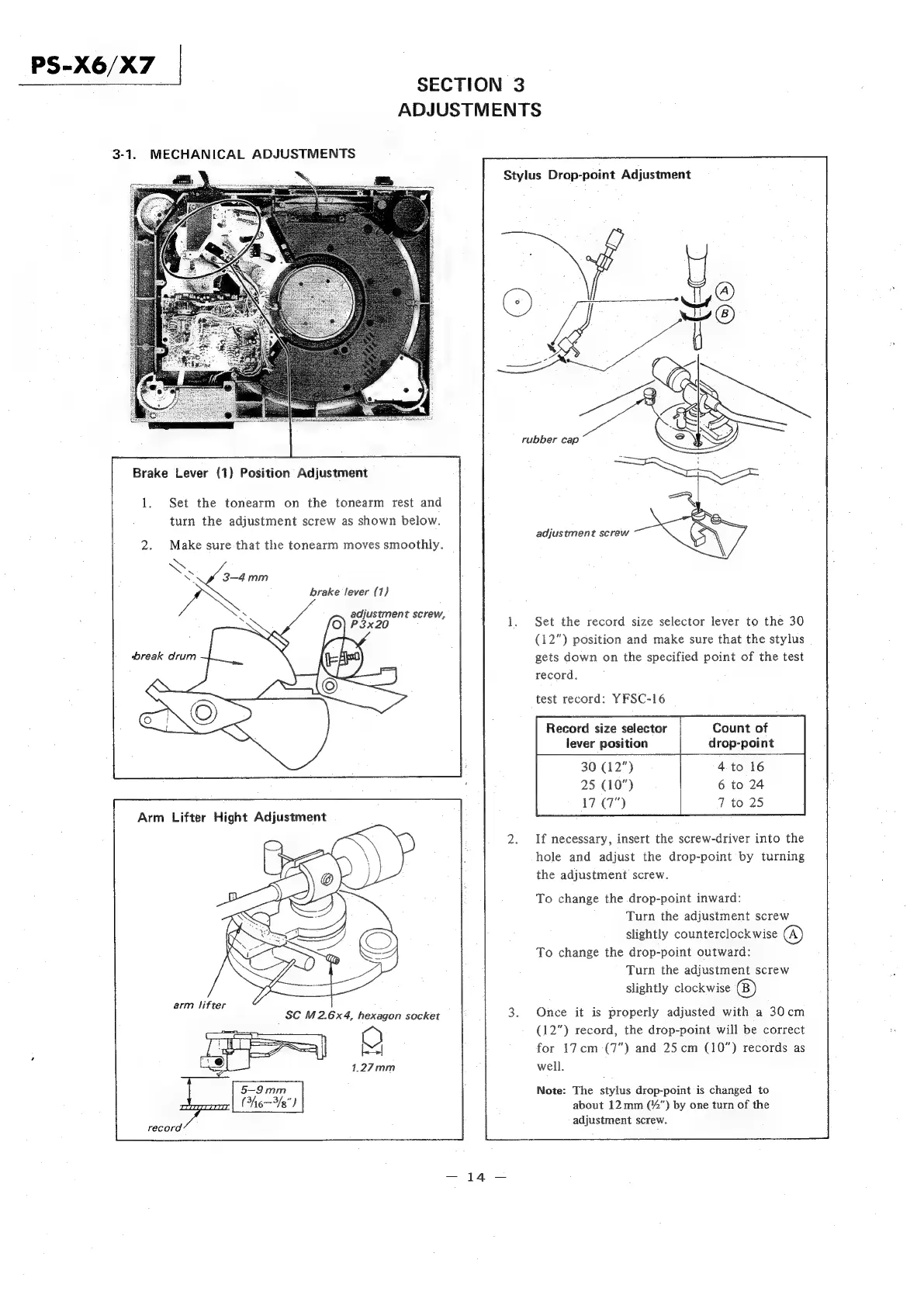

Sony PS-X7 - SECTION 3 ADJUSTMENTS; 3-1. MECHANICAL ADJUSTMENTS

PS-X6/X7 |
3-1.
SECTION 3
ADJUSTMENTS
MECHANICAL ADJUSTMENTS
Brake Lever (1) Position Adjustment
1.
Set the tonearm on the tonearm rest and
turn the adjustment screw as shown below.
Make sure that the tonearm moves smoothly.
~~
s SS 3-4mm
brake fever (7)
adjustment screw,
20
Arm Lifter Hight Adjustment
Stylus Drop-point Adjustment
rubber cap
LoS ss 2)
--?R
adjustment
we
1. Set the record size selector lever to the 30
(12”) position and make sure that the stylus
gets down on the specified point of the test
record.
test record: YFSC-16
Count of
drop-point
4 to 16
6 to 24
7 to 25
Record size selector
lever position
30 (12”)
25 (10")
17 (7")
2. If necessary, insert the screw-driver into the
hole and adjust the drop-point by turning
the adjustment screw.
To change the drop-point inward:
Turn the adjustment screw
slightly counterclockwise (A)
To change the drop-point outward:
Turn the adjustment screw
slightly clockwise
3. Once it is properly adjusted with a 30cm
(12”) record, the drop-point will be correct
for 17cm (7") and 25cm (10") records as
well.
Note: The stylus drop-point is changed to
about 12mm (4”") by. one turn of the
adjustment screw.
