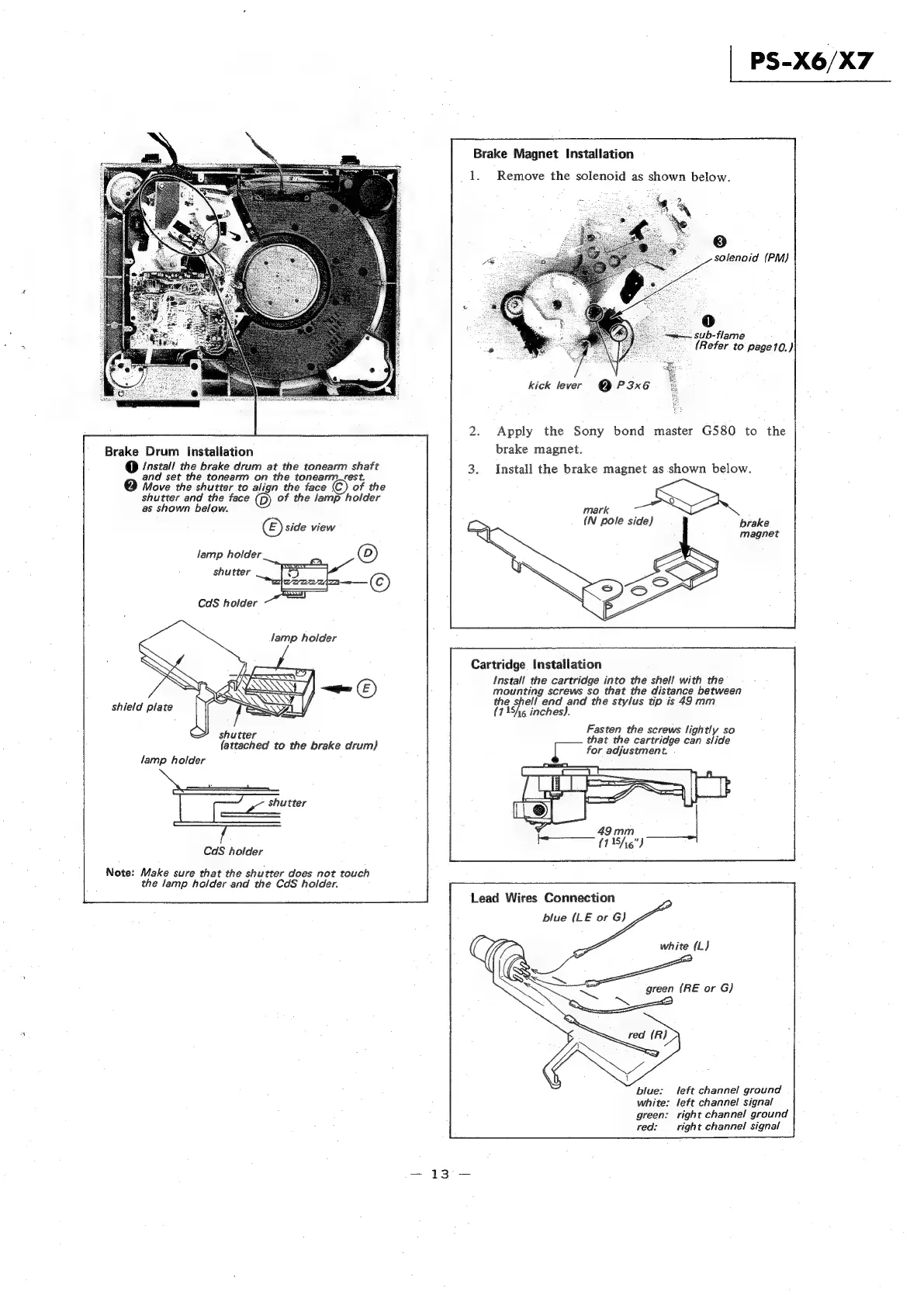

PS-X6/X7
Brake Magnet Installation
_1. Remove the solenoid as shown below.
solenoid {PM}
sub-flame
(Refer
to
page10.)
kick lever @ P3x6
2. Apply the Sony bond master G580 to the
Brake Drum Installation brake magnet.
@ Install the brake drum at the tonearm shaft 3. Install the brake magnet as shown below.
and set the tonearm an the tonearm rest. .
@ Move the shutter to align the face (C) of the
shutter and the face O of the lamp holder
as shown below. mark —
(E)
side
view
(N
pole
side)
brake
magnet
lamp holder
shutter
CdS holder
Cartridge Installation
Install the cartridge into the shell with the
mounting screws so that the distance between
the shell end and the stylus tip is 49mm
(1 5/6 inches).
Fasten the screws lightly so
that the cartridge can slide
for adjustment.
shutter
(attached to the brake drum)
famp holder
ee shutter
CdS holder
Note: Make sure that the shutter does not touch
the lamp holder and the CdS holder.
Lead Wires Connection
blue (LE or G)
white (L)
green {RE or G)
left channel ground
left channel signal
right channel ground
right channel signal
