PS-X6/X7

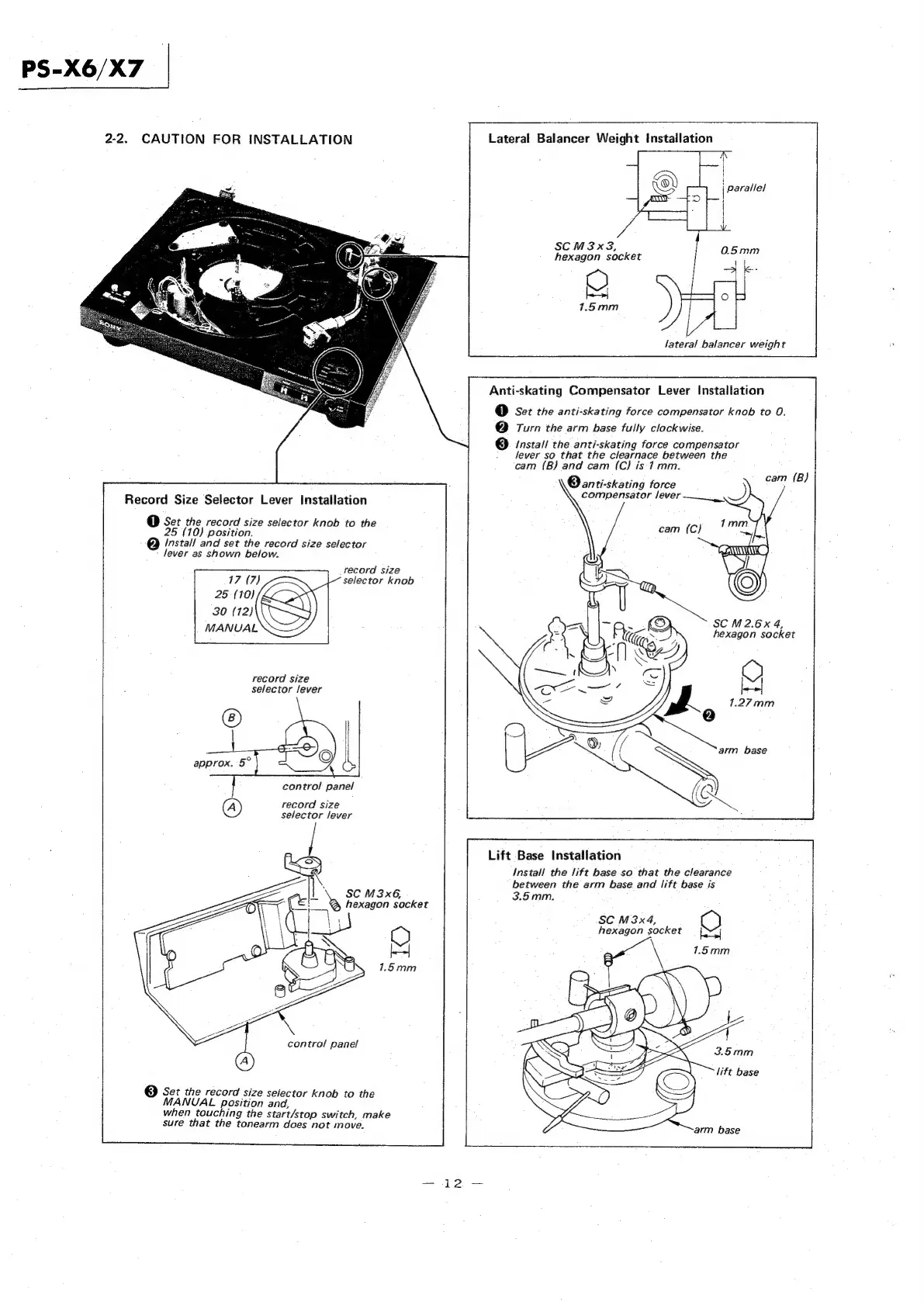

2-2. CAUTION FOR INSTALLATION
Record Size Selector Lever Installation
@ Set the record size selector knob to the
25 (10) position.
Install and set the record size selector
’ lever as shown below.
record size
selector knob
record size
selector lever
control panel
record size
selector lever
| \ SC M3x6,
hexagon socket
control panel
@ Set the record size selector knob to the
MANUAL position and,
when touching the start/stop switch, make
sure that the tonearm does not move.
12 —
Lateral Balancer Weight Installation
RUT,
SCM3x3,
hexagon socket
Q
7.5mm
fateral balancer weight
Anti-skating Compensator Lever Installation
C1) Set the anti-skating force compensator knob to 0.
@ Turn the arm base fully clockwise.
8 install the anti-skating force compensator
lever so that the clearnace between the
cam (B) and cam (C) is: 1mm.
@anti-skating force
compensator lever —____ :
cam (C)
\2
cam (B)
Lift Base Installation
Install the lift base so that the clearance
between the arm base and lift base is
3.5mm.
SC M3x4,
hexagon socket
