PS-X6/X7

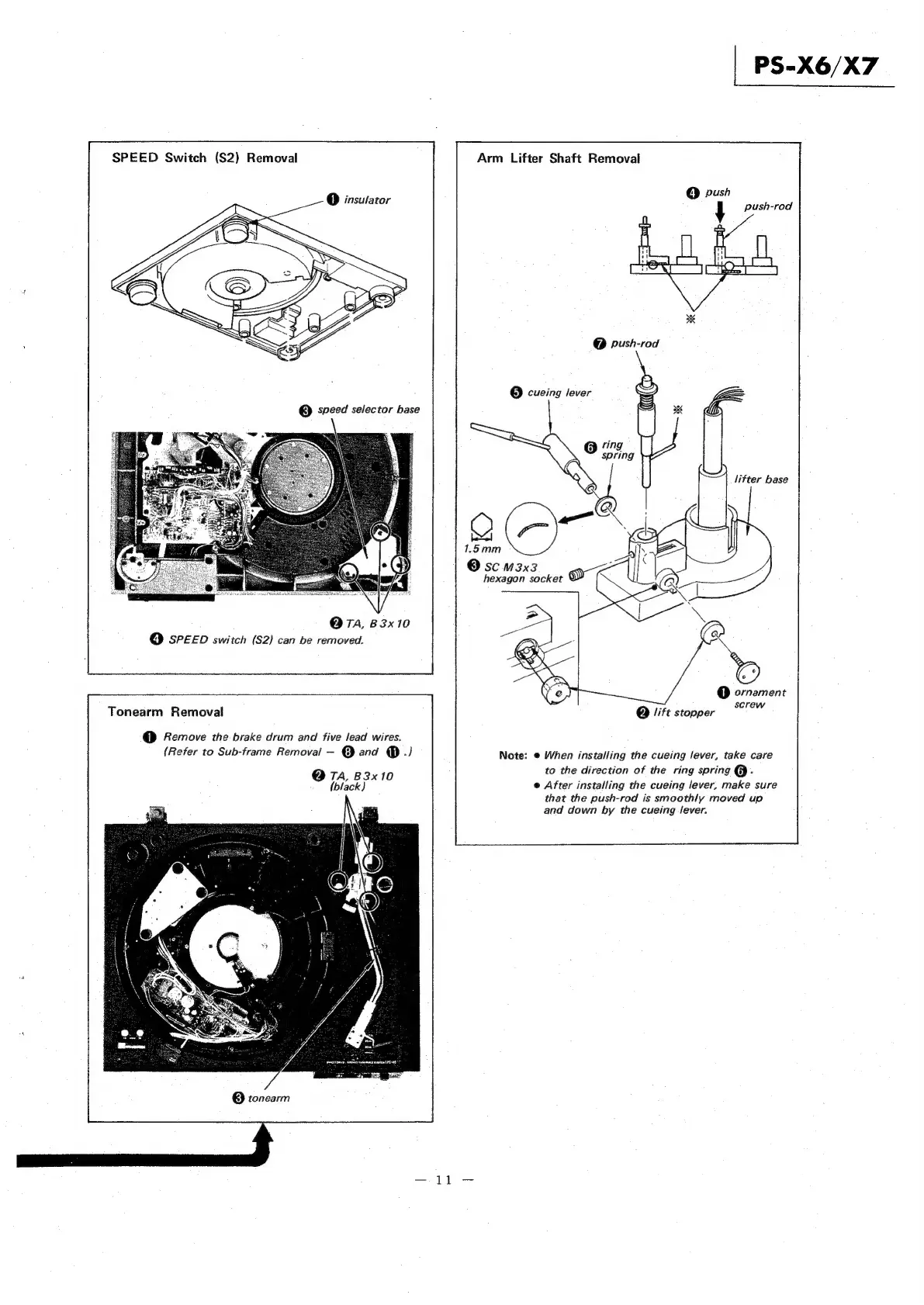

SPEED Switch (S2) Removal Arm Lifter Shaft Removal
C1) insulator
@ push-rod
@ cueing lever
6 ring
Ole
spring
7, rp mm
lifter base
‘Q |
a an
@ sc M3x3
hexagon Scker OK
@ TA, 83x10
© SPEED switch (S2) can be removed.
@ ornament
screw
Tonearm Removal @ lift stopper
@ Remove the brake drum and five lead wires.
(Refer to Sub-frame Removal — @ and @.) Note: @ When installing the cueing lever, take care
@ TA, 83x10 to the direction of the ring spring @.
(black) ® After installing the cueing lever, make sure
that the push-rod is smoothly moved up
and down by the cueing lever.
