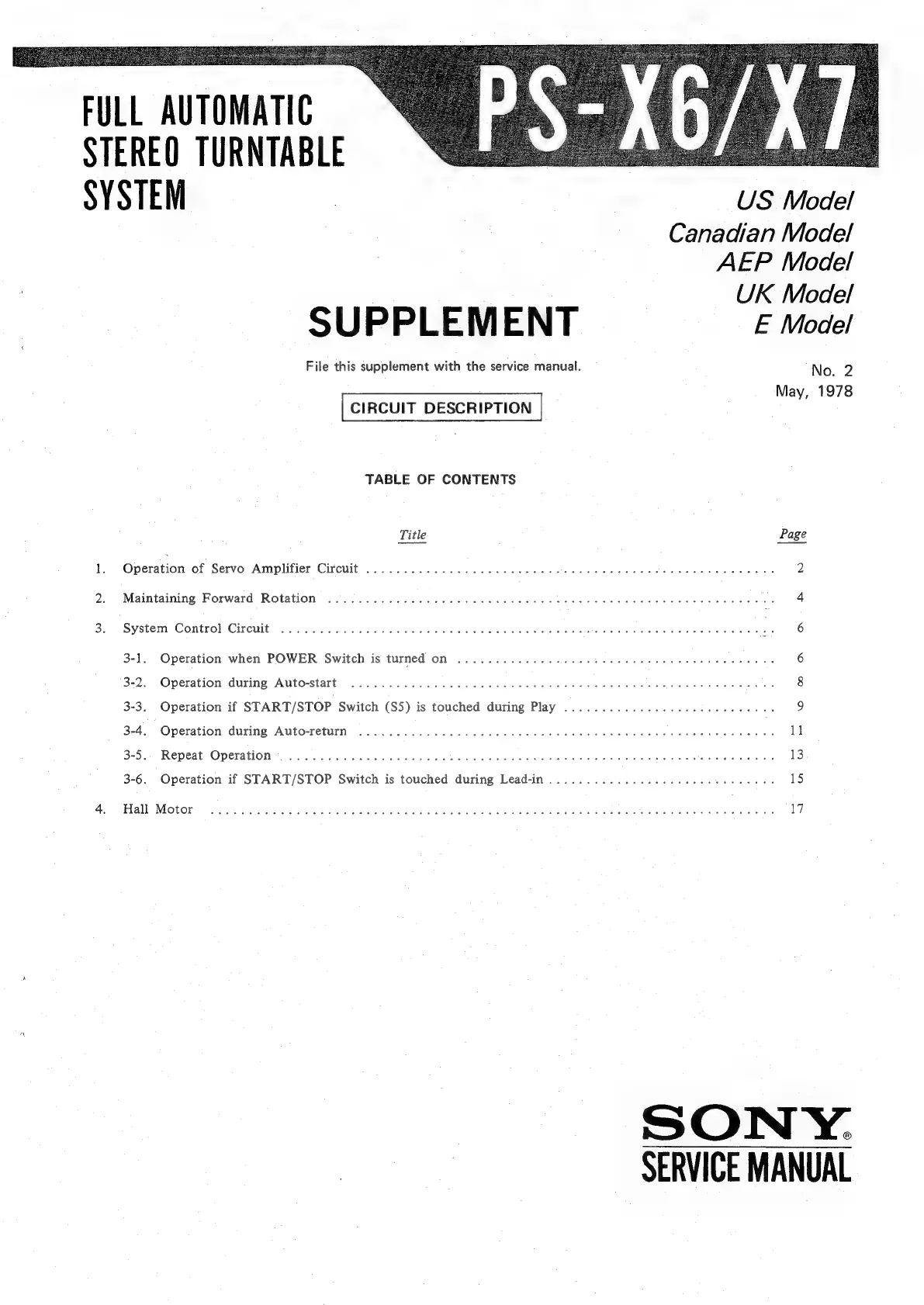

FULL AUTOMATIC
STEREO TURNTABLE
SYSTEM
SUPPLEMENT
File this supplement with the service manual.
CIRCUIT DESCRIPTION
TABLE OF CONTENTS
US Model
Canadian Model
AEP Model
UK Model
E Model
No. 2
May, 1978
Title Page
1. Gpetstion of ‘Servo Amplifier: Circuit: 20.504 ows sie Se Pale oe Sed aS AL ee Le ae eee gk a 2
2. Maintaining Forward Rotation 1.2.2.0... 0. ccc eee eee eee 4
3.. system. ‘Control Circuit: cia. ioe cs faethe ee Wee VE See eee Sia ek wR neelath etc weeps Paces 6
3-1. Operation when POWER Switch is turned On ... 2.2... ccc tees 6
3-2. Operation during Auto-start 22.1... cee eee ene nee nee te eens 8
3-3. Operation if START/STOP. Switch (S5) is touched during Play ........ 0.0... cece eee eee 9
3-4. Operation during Auto-return 22.0... center n eee eens 1}
355.0 Repeat Operation: *, ..22 ede Se ok so ee ee EE ee a Re bbw Be ee Ve wnat ieee alee 13
3-6. Operation if START/STOP Switch is touched during Lead-in.......... 0.0.0... 0.020 02 eee 15
4. Hall Motor’ igh uhitan annette ine Grae sade aint a geisye ae aie Red Sed dno tel ar i pelcay eigen ve aon vane oes core See eae gee ae D 17
SONTYY.
SERVICE MANUAL
