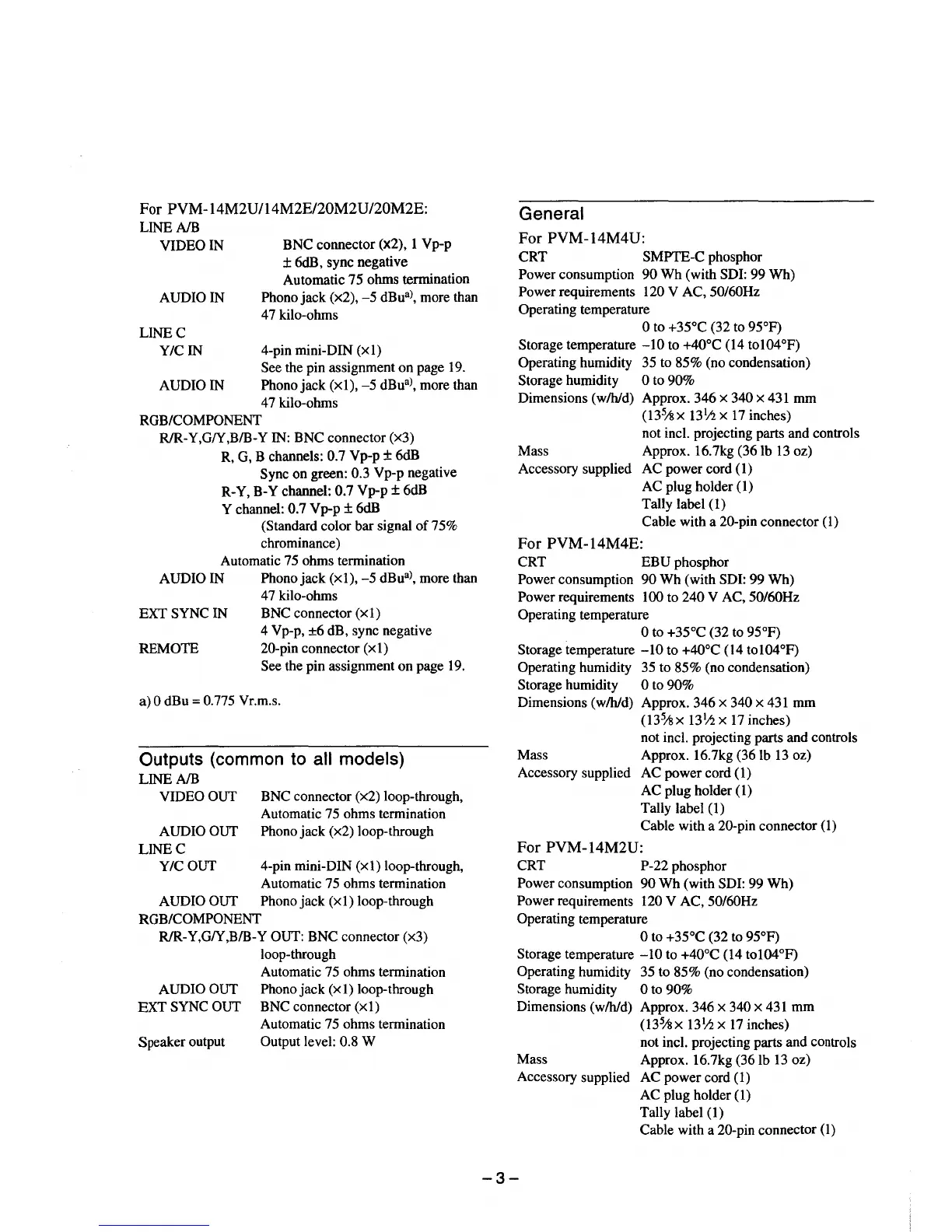

Sony PVM-20M2U - Page 3

For PVM-14M2U/14M2E/20M2U/20M2E:
LINE AlB
VIDEO IN
AUDIO IN
LINEC
BNC connector (X2), 1 Vp-p
± 6dB, sync negative
Automatic
75 ohms termination
Phono jack (x2), -5 dBua>, more than
47 kilo-ohms
Y/C IN 4-pin mini-DIN (x1)
See the pin assignment on page 19.
AUDIO IN
Phono jack (xl), -5 dBua>, more than
4 7 kilo-ohms
ROB/COMPONENT
R/R-Y,G/Y,B/B-Y IN: BNC connector (x3)
R, G, B channels: 0.7
Vp-p ± 6dB
Sync on green: 0.3 Vp-p negative
R-Y, B-Y channel: 0.7 Vp-p
± 6dB
Y channel: 0.7
Vp-p ± 6dB
(Standard color bar signal
of 75%
chrominance)
Automatic 75 ohms termination
AUDIO IN Phono jack (x1), -5 dBua>, more than
47 kilo-ohms
EXT
SYNC IN
REMOTE
BNC connector (x1)
4 Vp-p, ±6 dB, sync negative
20-pin connector (x1)
See the pin assignment on page 19.
a)
0 dBu = 0.775 Vr.m.s.
Outputs (common to all models)
LINE AlB
VIDEO OUT
AUDIO OUT
LINEC
Y/COUT
BNC connector (x2) loop-through,
Automatic 75 ohms termination
Phono jack (x2) loop-through
4-pin mini-DIN (x1) loop-through,
Automatic 75 ohms termination
AUDIO
OUT Phono jack (xl) loop-through
ROB/COMPONENT
R/R-Y,G/Y,B/B-Y OUT: BNC connector (x3)
loop-through
Automatic 75 ohms termination
AUDIO
OUT Phono jack (x1) loop-through
EXT SYNC OUT BNC connector (x1)
Automatic 75 ohms termination
Speaker output Output level: 0.8 W
General
For PVM-14M4U:
CRT SMPTE-C phosphor
Power consumption 90 Wh (with SDI: 99 Wh)
Power requirements 120 V AC, 50/60Hz
Operating temperature
0 to +35°C (32 to 95°F)
Storage temperature -10 to +40°C (14 to104°F)
Operating humidity 35 to 85% (no condensation)
Storage humidity
0 to 90%
Dimensions (w/h/d) Approx. 346 x 340 x 431 mm
(13%x 13Y2 x 17 inches)
not incl. projecting parts and controls
Mass Approx. 16.7kg
(36lb 13 oz)
Accessory supplied AC power cord
(1)
AC plug holder (1)
Tally label (1)
Cable with a 20-pin connector
(1)
For PVM-14M4E:
CRT EBU phosphor
Power consumption 90 Wh (with SDI: 99 Wh)
Power requirements 100 to 240 V AC, 50/60Hz
Operating temperature
0 to +35°C (32 to 95°F)
Storage temperature -10 to +40°C (14 to104°F)
Operating humidity 35 to 85% (no condensation)
Storage humidity
0 to 90%
Dimensions (w/h/d) Approx. 346 x 340 x 431 mm
(13%x 13\12 x 17 inches)
not incl. projecting parts and controls
Mass Approx. 16.7kg
(36lb 13 oz)
Accessory supplied AC power cord (1)
AC plug holder (1)
Tally label (1)
Cable with a 20-pin connector
(l)
For PVM-14M2U:
CRT P-22 phosphor
Power consumption 90 Wh (with SDI: 99 Wh)
Power requirements 120 V AC, 50/60Hz
Operating temperature
0 to +35°C (32 to 95°F)
Storage temperature -10 to +40°C (14 to104°F)
Operating humidity 35 to 85% (no condensation)
Storage humidity
0 to 90%
Dimensions (w/h/d) Approx. 346 x 340 x 431 mm
(13%x 13\12 x 17 inches)
not incl. projecting parts and controls
Mass Approx. 16.7kg
(36lb 13 oz)
Accessory supplied AC power cord (1)
AC plug holder (1)
Tally label
(1)
Cable with a 20-pin connector (1)
-3-
