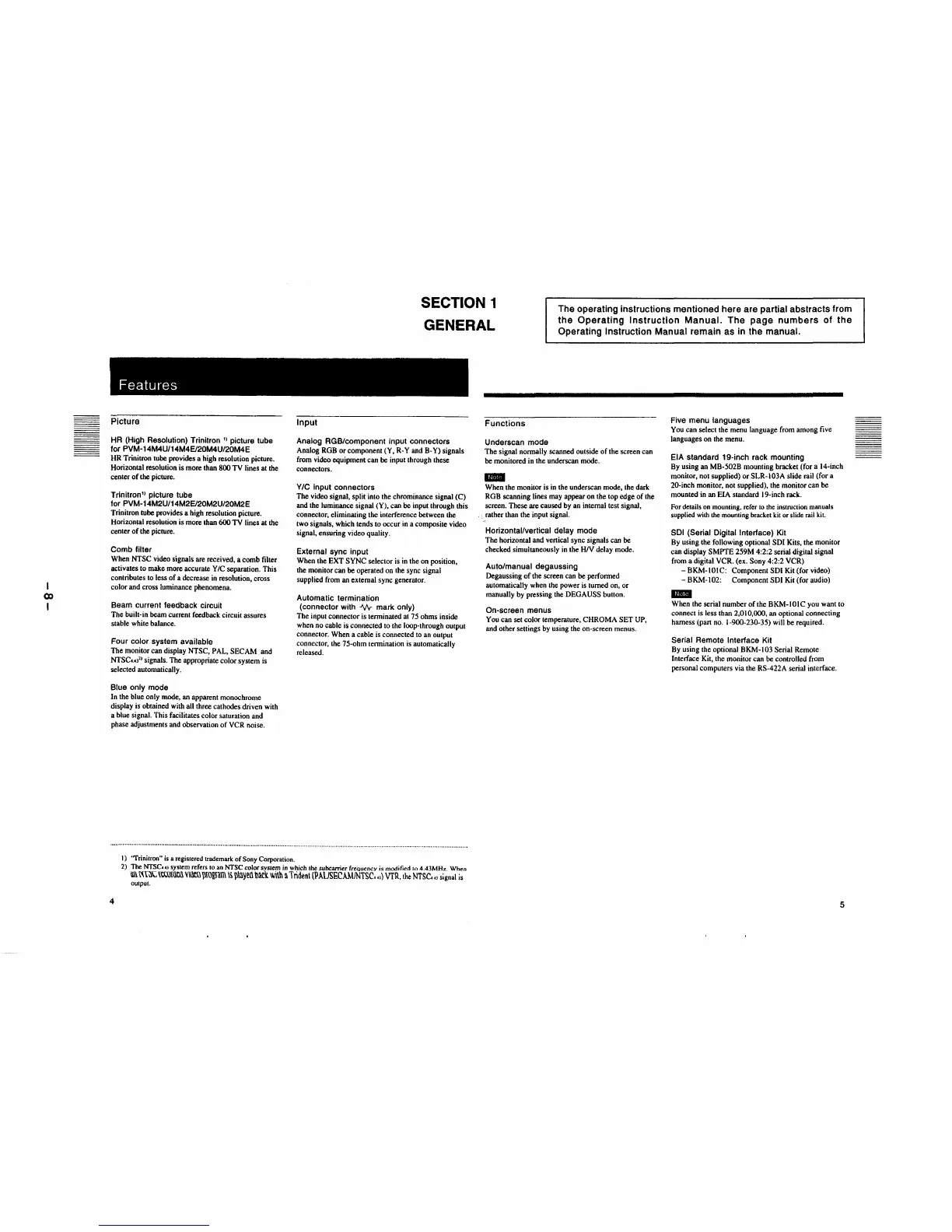

SECTION 1
GENERAL
The operating instructions mentioned here are partial abstracts from
the
Operating
Instruction
Manual.
The page
numbers
of
the
Operating Instruction Manual remain as in the manual.
Features
HR (High
Resolution)
Trinitron
•1
tube
for
PVM-14M4U/14M4E/20M4U/20M4E
HR Trinitron tube provides a high resolution picture.
Horizontal resolution is more than
800 TV lines at the
center
of
the picture.
Trinitron'l
tube
for
PVM-14M2U/14M2E/20M2U/20M2E
Trinitron tube provides a high resolution picture.
Horizontal resolution is more than
600
TV
lines at the
center
of
the picture.
Comb
filter
When
NTSC video signals are received, a comb filter
activates to make more accurate
Y /C separation. This
contributes to less
of
a decrease
in
resolution, cross
color and cross luminance phenomena.
Beam
current
feedback
circuit
The built-in beam current feedback circuit assures
stable white balance.
Four
color
system
available
The monitor can display NTSC, PAL, SECAM and
NTSCw
21
signals. The appropriate color system is
selected automatically.
Blue
only
mode
In the blue only mode, an apparent monochrome
display
is
obtained with all three cathodes driven with
a blue signal. This facilitates color saturation and
phase adjustments and observation
of
VCR noise.
I) "Trinilron"
is
a
regisrered
crademark
of
Sony
Corporalion.
Input
Analog
RGB!component
input
connectors
Analog RGB
or
component (Y, R-Y and B-Y) signals
from video equipment can
be
input through lhese
connectors.
Y/C
input
connectors
The video signal, split into lhe chrominance signal
(C)
and the luminance signal (Y). can be input through this
connector, eliminating the interference between the
two signals, which tends to occur in a composite video
signal, ensuring video quality.
External
sync
input
When the EXT SYNC selector is in the on position,
the monitor can be operated on lhe sync signal
supplied from an external sync generalor.
Automatic
termination
(connector
with
.A./Ir
mark
only)
The input conneclor is terminaced at 75 ohms inside
when no cable is connected
10
rhe
loop-through output
connector. When a cable is connected to an output
connector, the 75-ohm termination
is
automatically
released.
2) The
NTSCuJ
system refers 10 an NTSC color system in which rhe subcarrier freQuency
is
modified
to
4.43MHz. When
\\\
\'\'D~
\t\.\l\1\t.\\
~1\\t\l
\}l\l%!0ID
1~
\}\ayen
\lack
with
a
Trident
(PAUSECAMINTSC..,)
VTR.
the
NTSC..,
signal
is
output.
4
Functions
Underscan
mode
The signal normally scanned outside
of
the screen can
be monitored in the underscan mode.
..
When the monitor is in the underscan mode, the dark
RGB scanning lines may appear on the top edge
of
lhe
screen. These are caused by an internal test signal,
: rather than the input signal.
Horizontal/vertical
delay
mode
The horizontal and venical sync signals can be
checked simultaneously in the
HIV delay mode.
Auto/manual
degaussing
Degaussing
of
the screen can be performed
automatically when the power is turned on,
or
manually by pressing the DEGAUSS button.
On-screen
menus
You can set color temperature, CHROMA SET UP,
and
ocher settings by using the on-screen menus.
Five
menu
languages
You can select the menu language from among five
languages on the menu.
EIA
standard
19-inch
rack
mounting
By
using an MB-502B mounting bracket (for a 14-inch
monitor, not supplied)
or
SLR-103A slide rail (for a
20-inch monitor, not supplied), the monitor can be
mounted in an EIA standard 19-inch rack.
For details on mounting, refer
to
the instruction manuals
supplied
wilh
lhe
mounling
brackel
kil
or slide
rail
kil.
SDI
(Serial
Digital
Interface)
Kit
By using the following optional SDI Kits, the monitor
can display
SMPTE 259M 4:2:2 serial digiral signal
from a digital
VCR. (ex. Sony 4:2:2 VCR)
- BKM-IOlC: Component
SDI Kit (for video)
-
BKM-102: Component SDI Kit (for audio)
...
When the serial number
of
the BKM-IOlC you want to
connect is less than
2,010,000, an optional connecting
harness
(pan
no. 1-900-230-35) will be required.
Serial
Remote
Interface
Kit
By using the oplional
BKM-103 Serial Remote
Interface Kit, the monitor can be controlled from
personal computers via the
RS-422A serial interface.
5
