Guide to Parts and Controls
For more information, see the pages in parentheses.

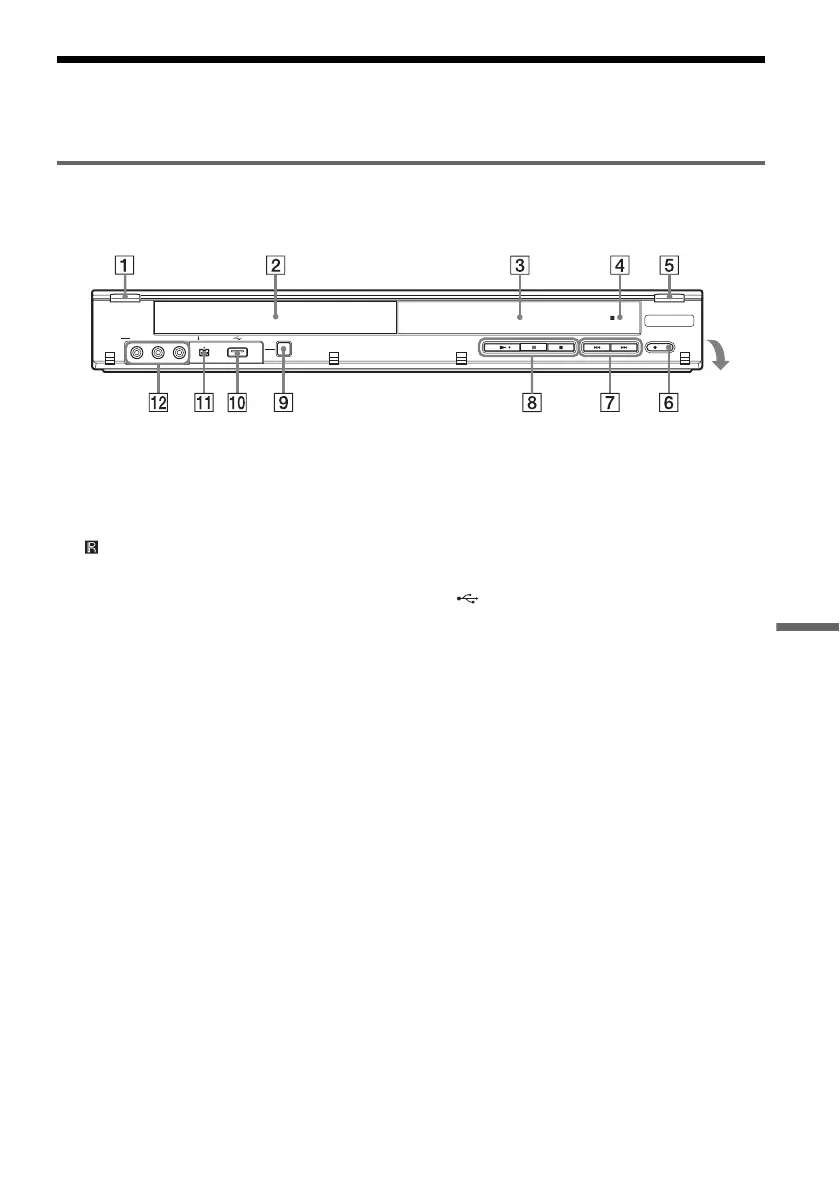

Front panel
Buttons on the recorder have the same function as the buttons on the remote if they have the same or
similar names.
A "/1 (on/standby) switch (23)
B Disc tray (34, 49)
C Front panel display (41)
D (remote sensor) (20)
E Z (open/close) button (34, 49)
F z REC (record) button (49)
G ./> (previous/next) buttons (35)
H N (play) button (34)
X (pause) button (35, 49)
x (stop) button (34, 49)
I ONE-TOUCH DUBBING button (69, 72,
73, 75)
J (USB) jack (71)
K DV IN jack (68)
L LINE 2 IN (VIDEO/AUDIO L (MONO)/
R) jacks (27)
LINE 2 IN DV IN
ONE-TOUCH
DUBBING
REC
VIDEO
L
(MONO)
AUDI O R
Open the
cover
