2. DISASSEMBLY AND REASSEMBLY
2-1 CABINET AND PCB
2-1-1 Cabinet Top Removal
2-1-2 Ass’y Front Panel Removal
RDR-GXD455
1 REMOVE 5 SCREWS
2 CABINET TOP

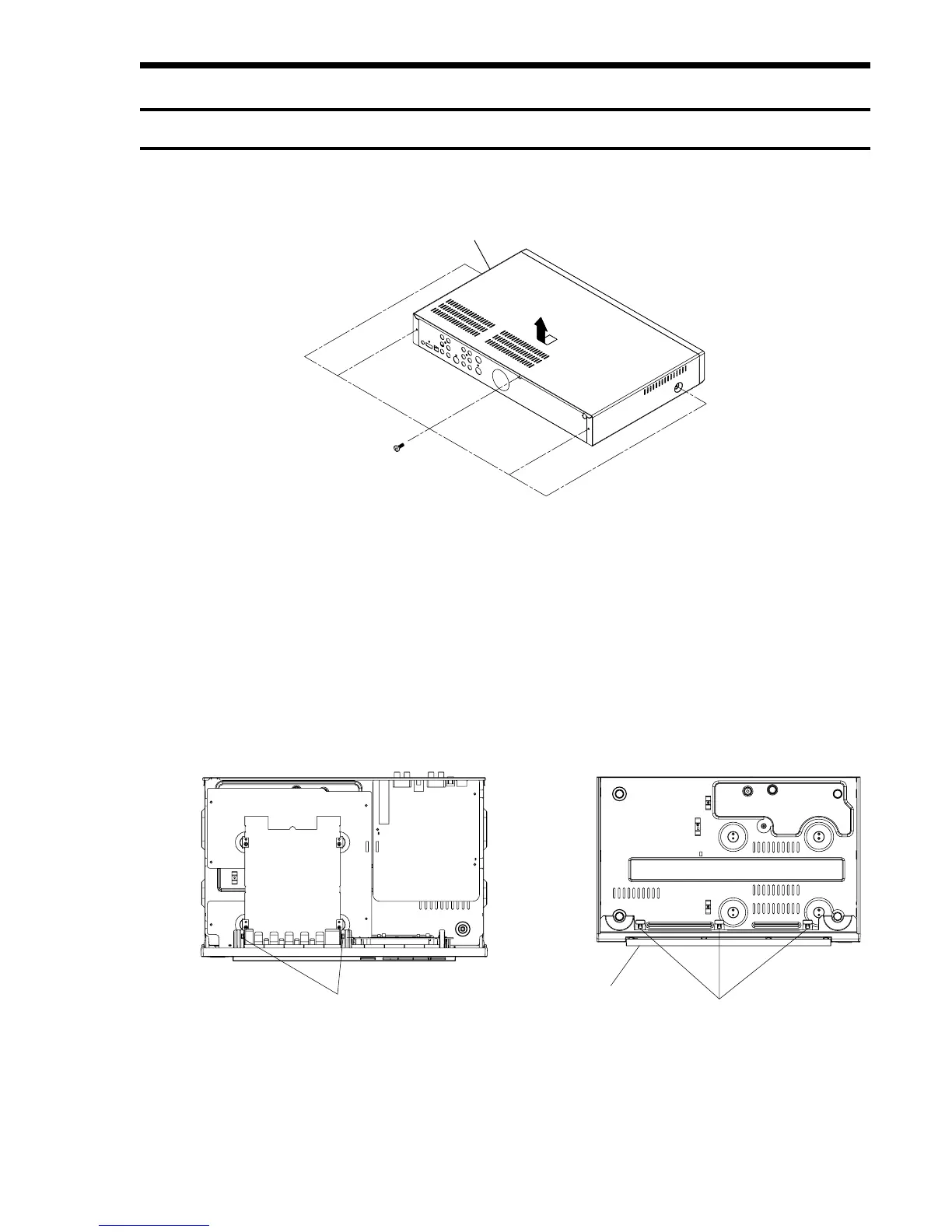

Fig. 2-1 Cabinet Top Removal
1 RELEASE 2 HOOKS
(Top View)
2 RELEASE 3 HOOKS
(Bottom View)
3
FRONT PANEL
Fig. 2-2 Ass’y Front Panel Removal
