Sony RDR-GXD455 - Chassis Removal

2-2
2-1-3 Chassis Removal

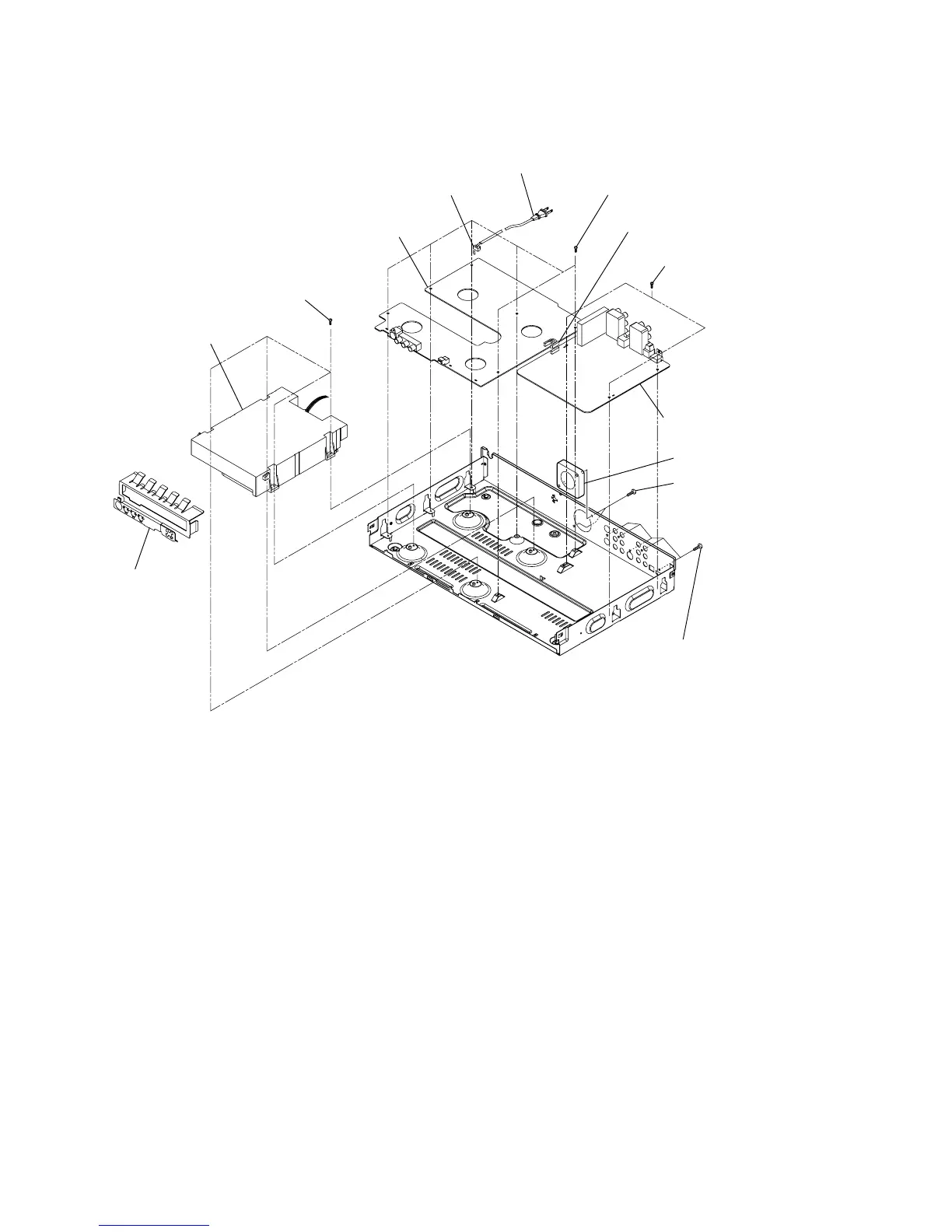

Fig. 2-3 Chassis Removal
1 REMOVE 4 SCREWS
3 ASSY LOADER
0 ASSY, PWB MAIN FRONT
6
REMOVE CONNECTOR
7 POWER CORD
9 REMOVE 6 SCREWS
qs REMOVE 3 SCREWS
qd ASSY, PWB MAIN DVD
4 REMOVE 2 SCREWS
5 FAN-DC
8 REMOVE CONNECTOR
qa REMOVE 5 SCREWS
2 SHIELD LOADER
