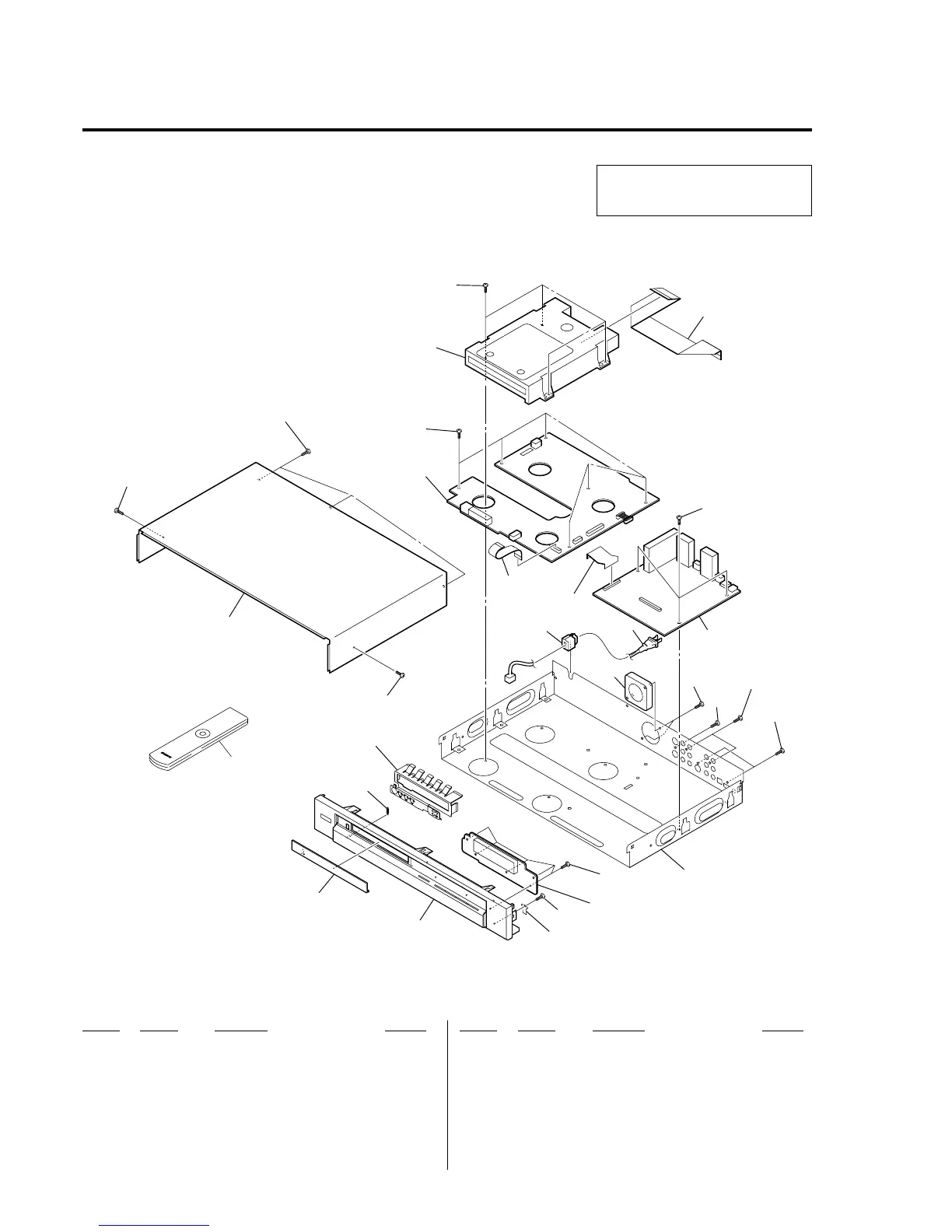

7-1 EXPLODED VIEW
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
2 9-885-112-24 ASSY-PANEL FRONT
3 9-885-111-43 DOOR TRAY
4 9-885-101-41 SPRING ETC-DOOR TRAY
5 9-885-111-31 ASSY LOADER;TS-P632A
6 9-885-102-43 CABLE-FLAT;30V, 80C, 360MM, 40P
0 8 1-824-674-11 POWER CORD EP2 SPT-2
10 9-885-084-32 SCREW-TAPTITE
11 9-885-090-91 FAN-DC
12 9-885-069-91 SCREW-SPECIAL
A001 9-885-112-22 REMOCON ASSY;RDR-GXD435 (RMT-D244A)
C015 9-885-112-23 CABINET TOP
W001 9-885-069-84 SCREW-TAPTITE BLK SWCH101
W002 9-885-069-88 SCREW-TAPTITE ZPC (WHT)
W270 9-885-037-09 SCREW TAP M3 L8 ZPC
W275 9-885-079-18 SCREW-TAPTITE
not supplied
not supplied
not supplied
not supplied
not supplied
W002
not supplied
A001
C015
W001
W270
W275
W002
not supplied
not supplied
not supplied
not supplied
W275
W275
3
4
5
6
not supplied
10
2
8
10
12
11
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
