2-2
2-1-3 Chassis Removal

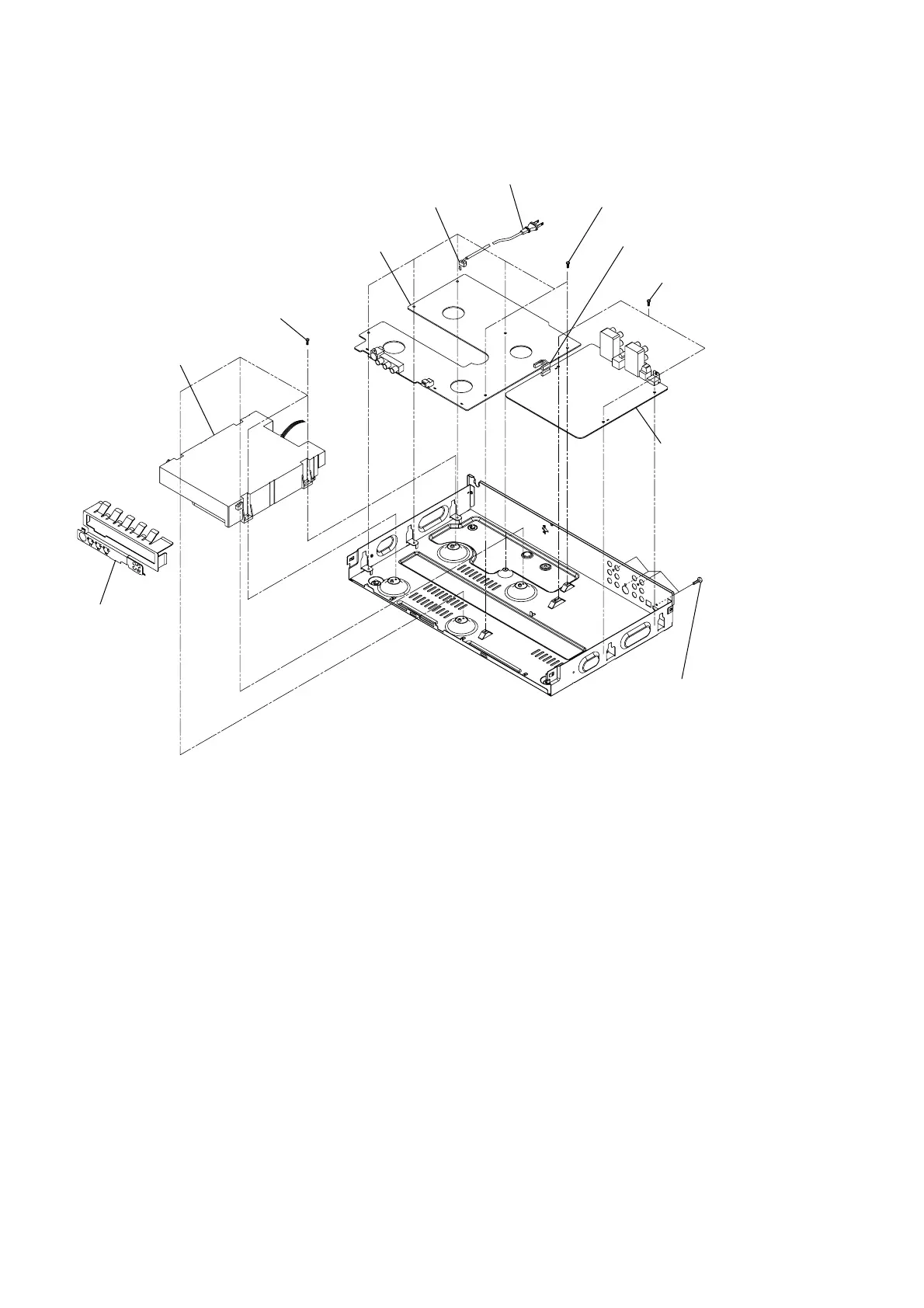

Fig. 2-3 Chassis Removal
1 REMOVE 4 SCREWS
3 ASSY LOADER
8 ASSY PWB MAIN FRONT
4
REMOVE CONNECTOR
5 POWER CORD
7 REMOVE 6 SCREWS
0 REMOVE 3 SCREWS
qa ASSY PWB MAIN DVD
6 REMOVE CONNECTOR
9 REMOVE 4 SCREWS
2 SHIELD LOADER
