8-2

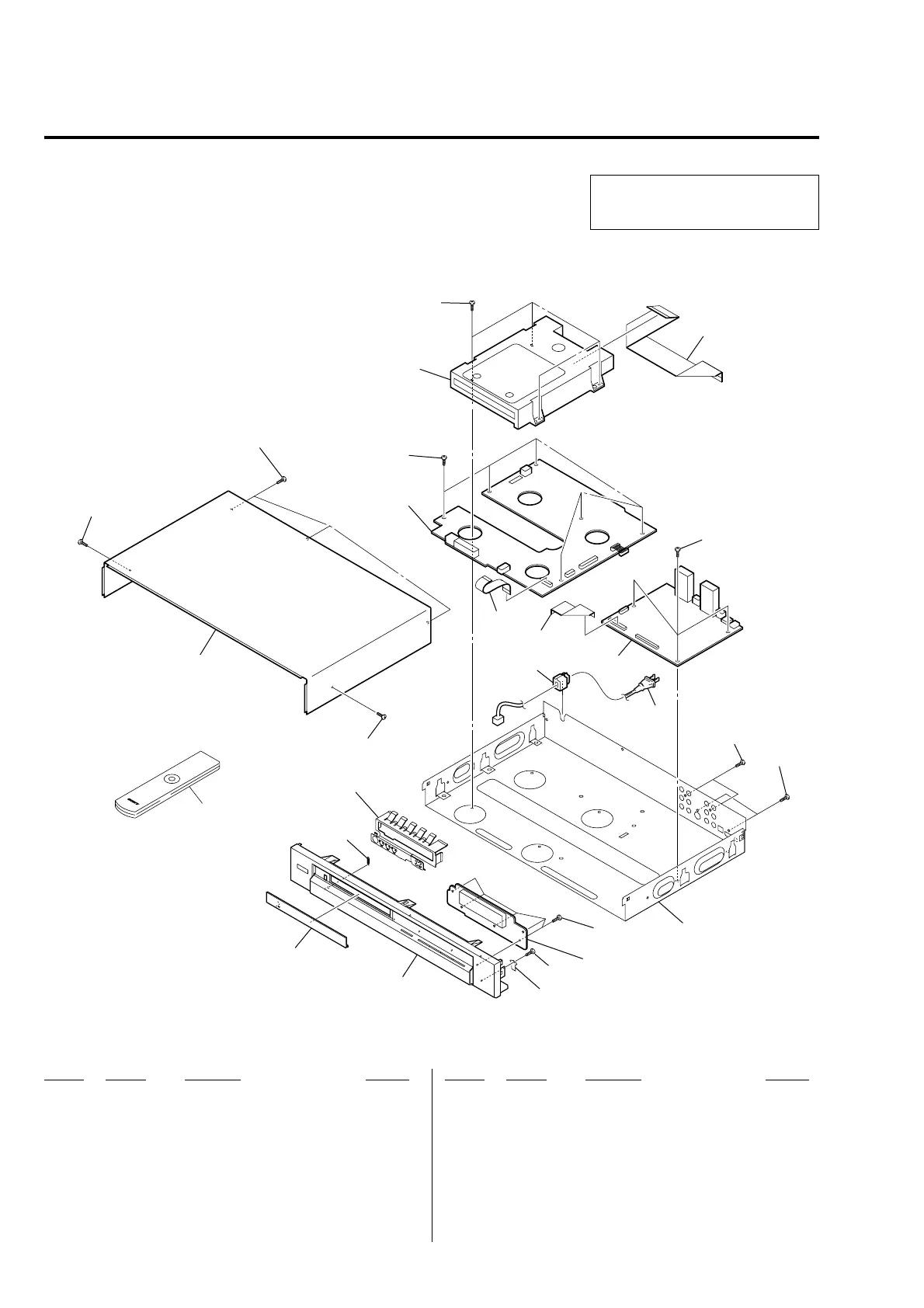

8-1 EXPLODED VIEW
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 9-885-079-18 SCREW-TAPTITE
2 9-885-111-42 ASSY PANEL FRONT
3 9-885-111-43 DOOR TRAY
4 9-885-101-41 SPRING ETC-DOOR TRAY
5 9-885-113-15 ASSY LOADER;TS-P632A
6 9-885-102-43 CABLE-FLAT;30V, 80C, 360MM, 40P
7 9-885-102-44 CBF CABLE-MONO PLUG TO LED
0 8 1-824-674-11 POWER CORD EP2 SPT-2
9 9-885-069-88 SCREW-TAPTITE ZPC (WHT)
10 9-885-084-32 SCREW-TAPTITE
A001 9-885-111-40 REMOCON ASSY;RDR-GX355 (RMT-D243A)
C015 9-885-111-41 CABINET TOP
P003 9-885-112-13 ASSY PWB MAIN DVD
W001 9-885-069-84 SCREW-TAPTITE BLK SWCH101
W002 9-885-069-88 SCREW-TAPTITE ZPC (WHT)
W270 9-885-037-09 SCREW TAP M3 L8 ZPC
W275 9-885-079-18 SCREW-TAPTITE
not supplied
not supplied
not supplied
not supplied
P003
not supplied
A001
C015
W001
W270
W275
W002
not supplied
not supplied
not supplied
not supplied
W275
1
3
4
5
6
7
9
10
2
8
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
To Next Page
