Appendix
Specifications
25
GB

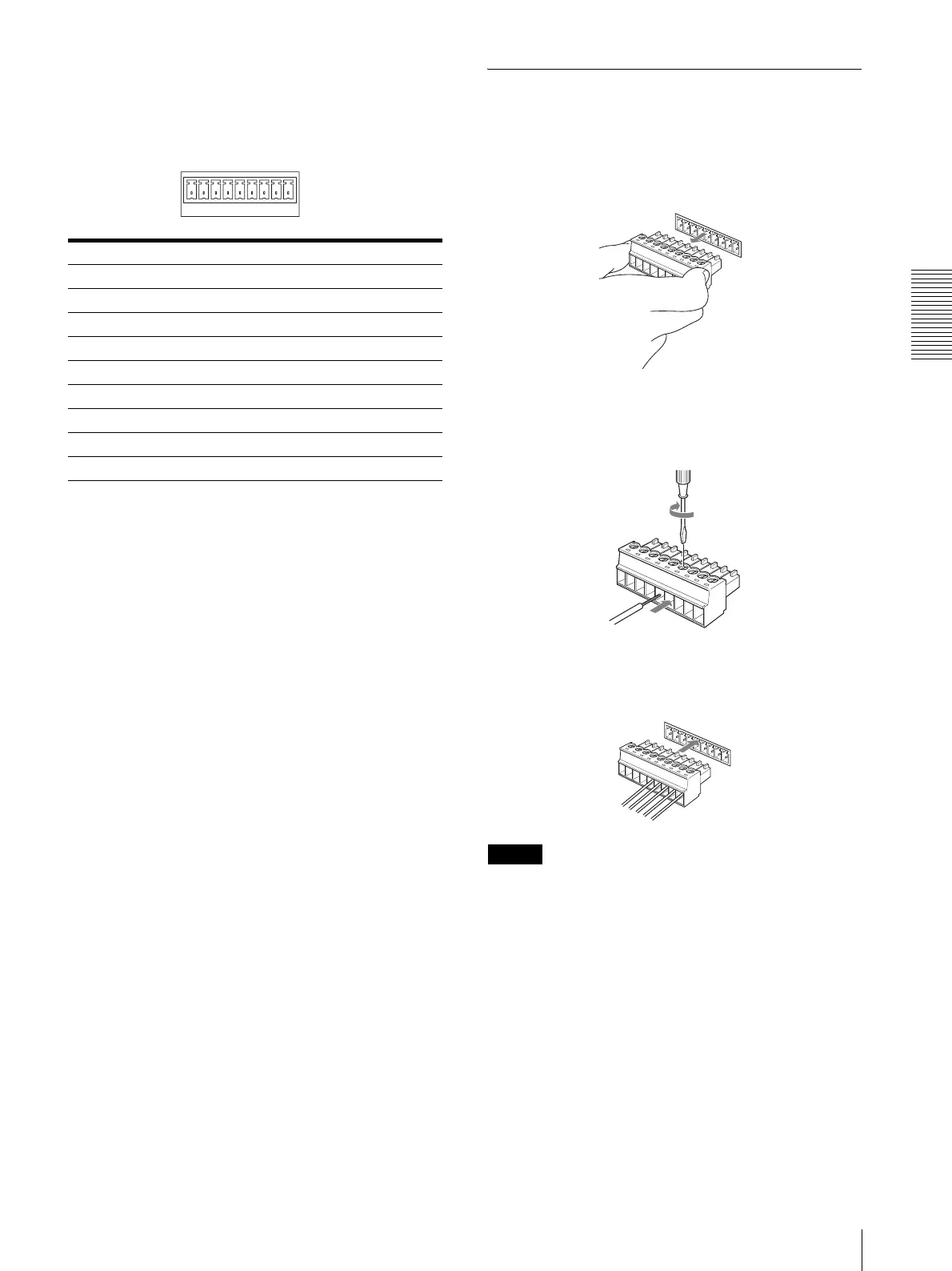

TALLY/CONTACT connector (connector plug,
9-pin)
Using the VISCA RS-422 connector
plug
1
Grasp both ends of the VISCA RS-422 connector
plug and pull it out as shown in the illustration.
2
Insert a wire (AWG Nos. 28 to 18) into the desired
wire opening on the plug, and tighten the screw for
that wire using a flat-head screwdriver.
3
Insert the VISCA RS-422 connector plug into the
VISCA RS-422 connector.
Notes
• In order to stabilize the voltage level of the signal,
connect both ends to GND.
• The maximum connection distance with the VISCA
RS-422 connection is approximately 1,200 m (3,937
feet).
Pin No. Function
1 CAMERA1
2 CAMERA2
3 CAMERA3
4 CAMERA4
5 CAMERA5
6 CAMERA6
7 CAMERA7
8 GND
9 GND
19
TALLY/CONTACT
1
9
Wire
Flat-head screwdriver
1
9
To Next Page
