Sony RMT-DS11 - Frame Schematic Diagram (1;2)

DSR-11
20PCN6002
1
PARSLEY_MODE
3
EJECT
5
XRESET
7
GND
9
B.UP_3V
11
UNSW_3V
13
UNSW_6V
15
XLANC_PWR_ON
17
LANC_OUT
19
LANC_IN
2
N.C.
4
N.C.
6
N.C.
8
GND
10
GND
12
ONBOAD80
14
TDOB/ONBOAD79
16
TDI/ONBOAD78
18
TCK/ONBOAD73
20
TMS/ONBOAD55
30P
CN6001
1 BACK_UP_3V 2 XIC_RST 3 XSLEEP 4 MO_XWAKEUP 5 GND 6 HI_SCK 7 GND 8 HI_SO 9 GND
10 HI_SI 11 GND 12 XCS_MO 13 GND 14 XSYS_RST 15 GND 16 MO_SCK 17 GND 18 MO_SO 19 GND 20 MO_SI 21 GND 22 XCS_UVIC 23 UVIC_BUSY 24 UVIC_SWIN 25 UVIC_GATE 26 OSD_SO_HI 27 GND 28 OSD_SCK_HI 29 OSD_SW 30 XCS_OSD_HI
6P
CN4400
1 GND
2TPA
3 NTPA
4 GND
5 TPB
6 NTPB
50PCN5005
1 MODE_SW_A 2 MODE_SW_B 3 MODE_SW_C 4 MODE_SW_D 5 GND 6 TAPE_LED_ON 7 TAPE_TOP 8 TAPE_END 9 GND
10 XC_IN 11 XCC_DOWN 12 L_CASSETTE 13 REC_PROOF 14 DEW_DET 15 GND 16 T_ELTN_ERR 17 S_ELTN_ERR 18 SREEL_FG 19 TREEL_FG 20 REEL_EVR 21 CAP_EVR 22 CHIME_SCK 23 CHIME_SDA 24 CHIME_VDD 25 GND 26 DRUM_ON 27 DRUM_FWD 28 DRUM_PWM 29 DRUM_FG 30 DRUM_PG 31 DRUM_MASTER_CLK 32 GND 33 CAP_ON 34 CAP_FWD 35 CAP_PWM 36 CAP_FG 37 GND 38 REEL_ON 39 REEL_FWD 40 REEL_PWM 41 REEL_M_FG 42 GND 43 CM(+) 44 CM(-) 45 CM_LIMIT_ON 46 CM_LIMIT_DET 47 CM_LIMIT_EVR 48 LM(+) 49 LM(-) 50 HI_C/R_SW
2PCN501
1 CM_UNLOAD 2 CM_LOAD
11P
CN500
1W 2W 3V 4V 5U 6U 7GND 8GND 9 SENSOR Vcc
10 FG 11 PG
21P
CN201
1 REEL_V 2 REEL_V 3 REEL_U 4 REEL_U 5 REEL_w 6 REEL_W 7GND 8GND 9FG1
10 5V 11 5V 12 FG2 13 SREEL_FG 14 TREEL_FG 15 REC_PROOF 16 CHIME_4(VDD) 17 CHIME_3(SDA) 18
CHIME_2(SCK)
19 GND 20 GND 21 TAPE_TOP
21P
CN200
1 TAPE_END 2 CC_DOWN 3 C_IN 4 MODE_A 5 MODE_B 6 MODE_C 7 MODE_D 8 S_ELETEN 9 T_ELETEN
10 5V 11 5V
12 TAPE_LED 13 GND 14 L_CASSETTE 15 DEW
16 W- 17 W+ 18 V- 19 V+ 20 U- 21 U+
2P
CN300
1LM+ 2LM-
18P
CN400
1
HW-
2
HW+
3
HV-
4
HV+
5
HU-
6
HU+
7
V
8
V
9
W
10
W
11
HE VCC
12
HE GND
13
U
14
U
15
MR GND
16 FG2 17
FG1
18
FG VCC
50PCN001
1HI_C/R_SW 2LM(-) 3LM(+) 4CM_LIMIT_EVR 5CM_LIMIT_DET 6CM_LIMIT_ON 7CM(-) 8CM(+) 9GND
10REEL_M_FG 11REEL_PWM 12REEL_FWD 13REEL_ON 14GND 15CAP_FG 16CAP_PWM 17CAP_FWD 18CAP_ON 19GND 20
DRUM_MASTER_CLK
21DRUM_PG 22DRUM_FG 23
DRUM_PWM
24DRUM_FWD 25DRUM_ON 26GND 27CHIME_VDD 28CHIME_SDA 29CHIME_SCK 30CAP_EVR 31REEL_EVR 32TREEL_FG 33SREEL_FG 34S_ELTN_ERR 35T_ELTN_ERR 36GND 37DEW_DET 38REC_PROOF 39L_CASSETTE 40XCC_DOWN 41XC_IN 42GND 43TAPE_END 44TAPE_TOP 45TAPE_LED_ON 46GND 47MODE_SW_D 48MODE_SW_C 49MODE_SW_B 50MODE_SW_A
8P
CN100
13V 2GND 35V 45V 5UNREG 12V 6UNREG 12V 7GND 8GND
18P
CN3
1V 2V 3U 4U 5W 6W 7MR_GND 8MR_FG1 9MR_Vcc
10MR_FG2 11U+ 12U- 13V+ 14V- 15W+ 16W- 17HE GND 18HE Vcc
21P
CN2
1TAPE_END 2CC_DOWN 3C_IN 4MODE_A 5MODE_B 6MODE_C 7MODE_D 8S_ELETEN 9T_ELETEN
105V 115V 12TAPE_LED 13GND 14L_CASSETTE 15DEW 16W- 17W+ 18V- 19V+ 20U- 21U+
21P
CN1
1REEL_V 2REEL_V 3REEL_U 4REEL_U 5REEL_W 6REEL_W 7GND 8GND 9FG1
105V 115V 12FG2 13SREEL_FG 14TREEL_FG 15REC_PROOF 16CHIME_4(VDD) 17CHIME_3(SDA) 18CHIME_2(SCK) 19GND 20GND 21TAPE_TOP
S203
J201
J252
S508
D535
D510
S509
D527
S501
D532
D521
D513
D514
D529
D516
S503
S505
S504
S510S506
S502
S507
D525
D519
4P
CN253
1NTPB
2TPB
3NTPA
4TPA
34P
CN501
1POWER_LED 2XPOWER_SW 3SIRCS_Vcc 4UNSW_6V 5SIRCS_DATA 6SW_3V 7INST/XVTR4 8V INPUT SEL 9S INPUT SEL
10DV INPUT SEL
11UNSW_+6V 12UNSW_+6V 13GND 14GND 15DVCAM 16STREAM 17TAPE 18NTSC 19PAL
20REW 21PLAY 22FF 23PAUSE 24REC 25XEJECT 26GND 27KS4
28KS3 29KS2 30KS1 31GND 32KEY2 33KEY1 34GND
16P
CN932
1MT_5V
2VC_F_BUSY
3VC_SI
4VC_SO
5XVC_SCK
6XCS_VC_STAR
7XCS_MC_FLASH
8XDRP_SCK
9DRP_SO
10DRP_SI
11MC_F_BUSY
12REG_GND
13HI_XRESET
14HI_RXD
15HI_TXD
16HI_TEST_A
7P
CN704
1 2 3 4 5 6 7
10P
CN705
1GND 2XRESET 3GND 4SIRCS DATA 5SIRCS Vcc 6GND 7GND 8LANC SIG 9LANC JK IN
10LANC Vcc
30P
CN703
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
7P
CN601
1P/CONT 2UNSW_6V 3UNSW_3V 4SW_5V 5SW_3V 6
GND
7UNSW_12V
34P
CN602
1 GND 2 KEY1 3
KEY2
4 GND 5 KS1 6 KS2 7 KS3 8 KS4 9 GND
10 XEJECT 11 REC 12 PAUSE 13 FF 14 PLAY 15 REW 16 PAL 17 NTSC 18 TAPE 19 STREAM 20 DVCAM 21 GND 22 GND 23 UNSW_+6V 24 UNSW_+6V 25 DV INPUT SEL 26 S INPUT SEL 27 V INPUT SEL 28
INST/XVTR4
29 SW_3V 30 SIRCS_DATA 31 UNSW_6V 32 SIRCS_Vcc 33 XPOWER_SW 34 POWER_LED
10P
CN201
1 2 3 4 5 6 7 8 9
10
6P
CN252
1 GND 2TPA 3 NTPA 4 GND 5 TPB 6 NTPB
M M
1
A
Q2
Q1
JD-002 BOARD
FR-175 BOARD
HD-024 BOARD
JC-20 BOARD (1/2)
MD-76 BOARD
CAUTION
NTSC PAUSE
DVCAM
REW
ON/STANDBY
PAL
PLAY
REC
F FWD
M904
REEL
MOTOR
DRUM
(2/2)
MOTOR
M901
CAPSTAN
M903
MOTOR
FMD-14 FLAT CABLEFMD-14 FLAT CABLE
M902
CAM MOTOR FL MOTOR
M905
FHF-001 FLAT CABLE
FHJ-001
FLAT CABLE
FJH-001 FLAT CABLE FJC-1 FLAT CABLE
DV
IN/OUT
2 16
L
I
K
12
G
68
D
E
B
7
05
151310 1711
C
H
F
3 18
J
14945
CONTINUED ON
PAGE 4-5
1
CONTINUED ON
PAGE 4-5
2
3
CONTINUED ON
PAGE 4-5
HV-053 HARNESS
HD-101 HARNESS
HD-100 HARNESS
JIG PIN
JJ-056 HARNESS
(TAPE LED)
D1
TAPE TOP
TAPE END
(CC DOWN)
(C IN)
(L/S-CAS)
S3
S2
S1
EJECT
LANC
RESET
CONTROL S
(FOR JIG)
REMOTE
CONTROL
INPUT SELECT
POWER
S701
(RESET)
V/L RECHARGEABL
BATTERY,
BT701
UVIC_Y
GND
VD_FROM_HI
VD_TO_HI
XVA_MUTE
NT/XPAL
AUTO_REPEAT
XCS_OSD_HI
OSD_SW
OSD_SCK_HI
GND
OSD_SO_HI
UVIC_GATE
UVIC_SWIN
UVIC_BUSY
XCS_UVIC
GND
MO_SI
GND
MO_SO
GND
MO_SCK
GND
XSYS_RST
GND
XCS_MO
GND
HI_SI
GND
HI_SO
GND
HI_SCK
GND
MO_XWAKEUP
XSLEEP
XIC_RST
BACK_UP_3V
LANC Vcc LANC JK IN LANC SIG GND GND SIRCS Vcc SIRCS DATA GND XRESET GND
4-3 4-4

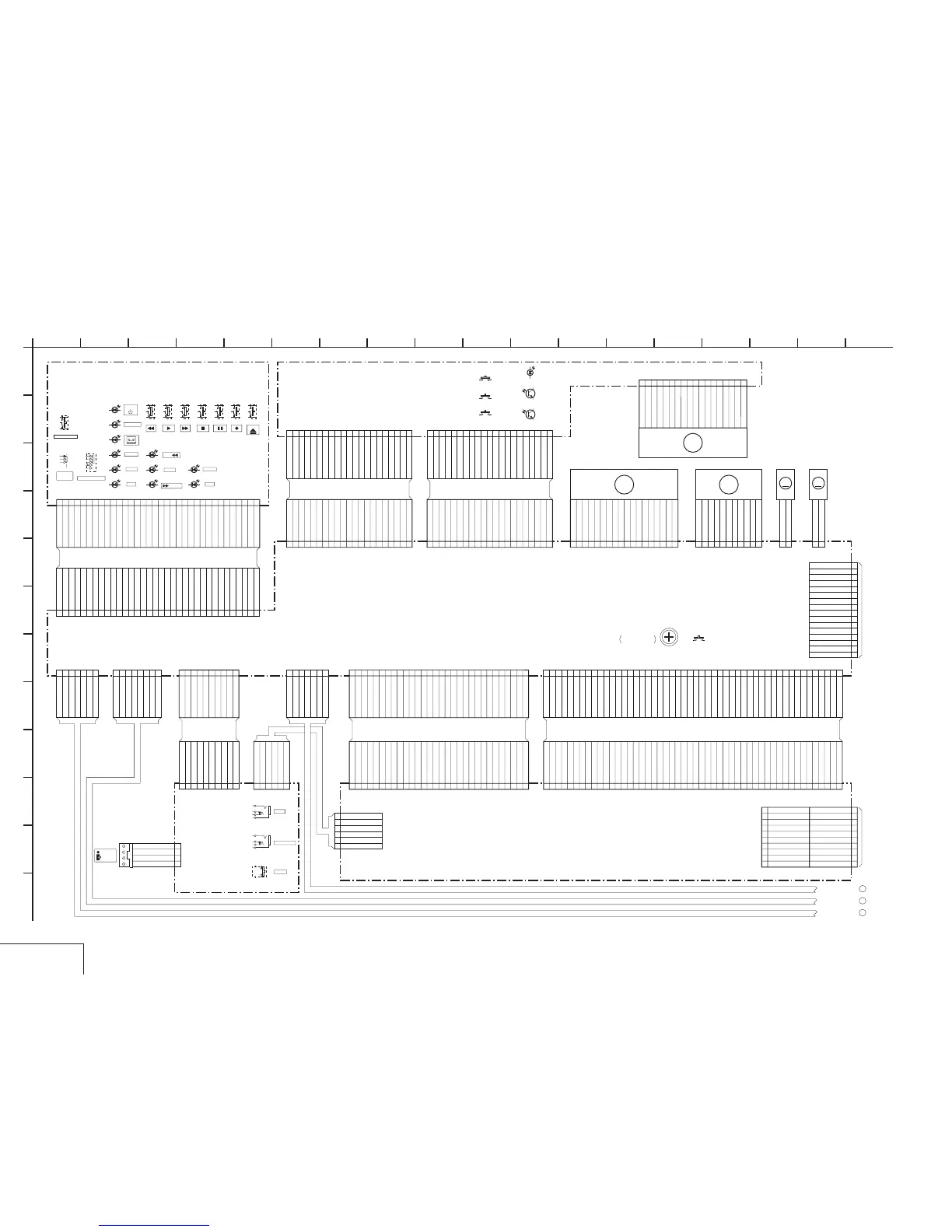

4-1. FRAME SCHEMATIC DIAGRAM (1/2)
FRAME (1/2)
