DSC-H50_L2
HELP
9
qa
qs
q;
Screw
(C205)
Aluminum Elect
Cap
Capacitor Holder,
ST-194 Board
Capacitor Holder
ST-194 Board
FP-900 Flexible
Board
Harnesses
Claw
Claw
ST Cover
Claw
Battery Holder Bloc
BT Holder Cover
Screw

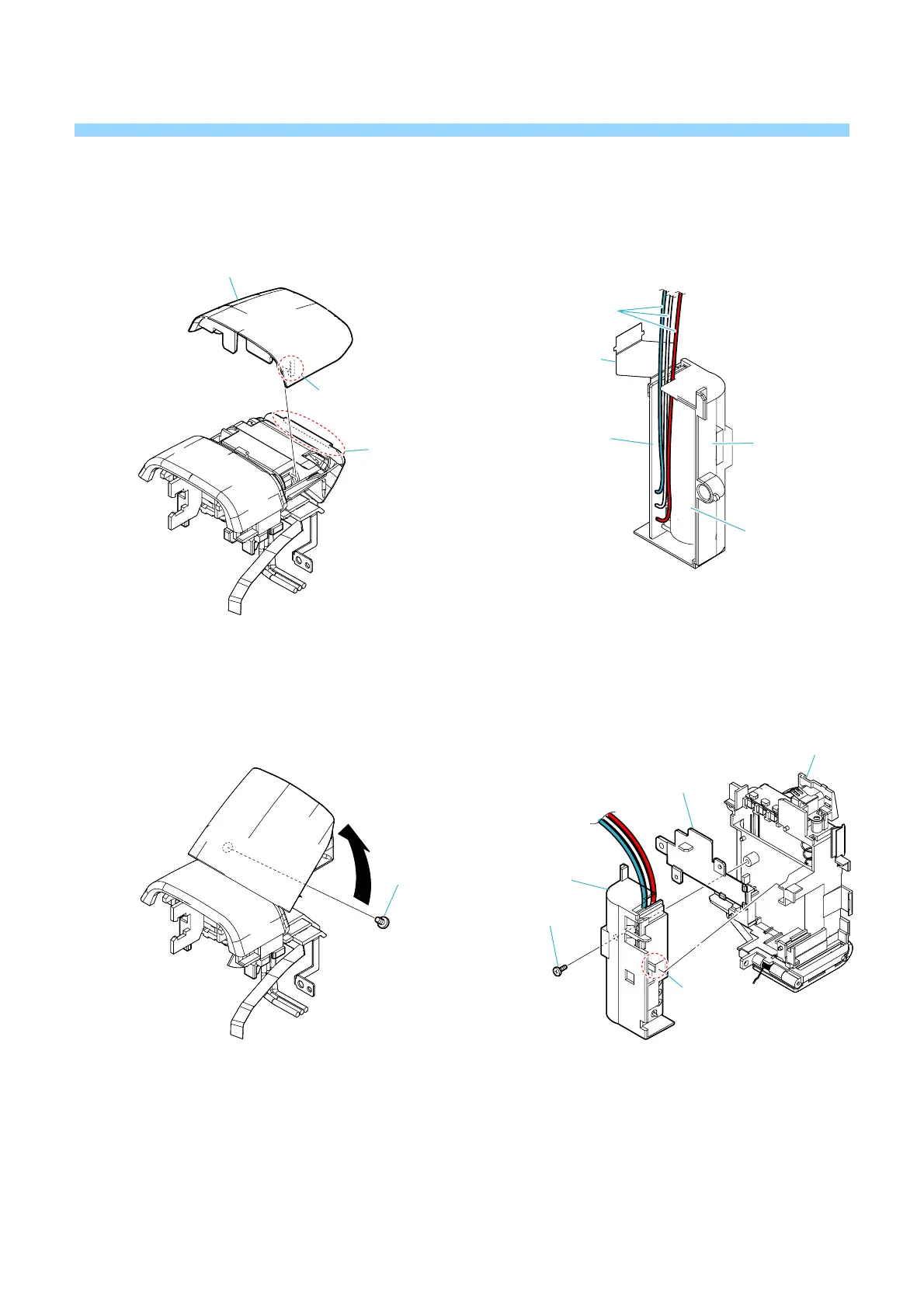

Attach ST cover.
Attach Capacitor holder and arrange three
harnesses as shown in the figure.
Assemble Capacitor holder and BT holder cover
with ST-194 board to Battery holder block and
secure them with a screw.
Pull up the popping up and secure a screw.
To Next Page
