DSC-H50_L2
HELP
Plunger Solenod
Solenoid Retainer
Pins
Soldering Points

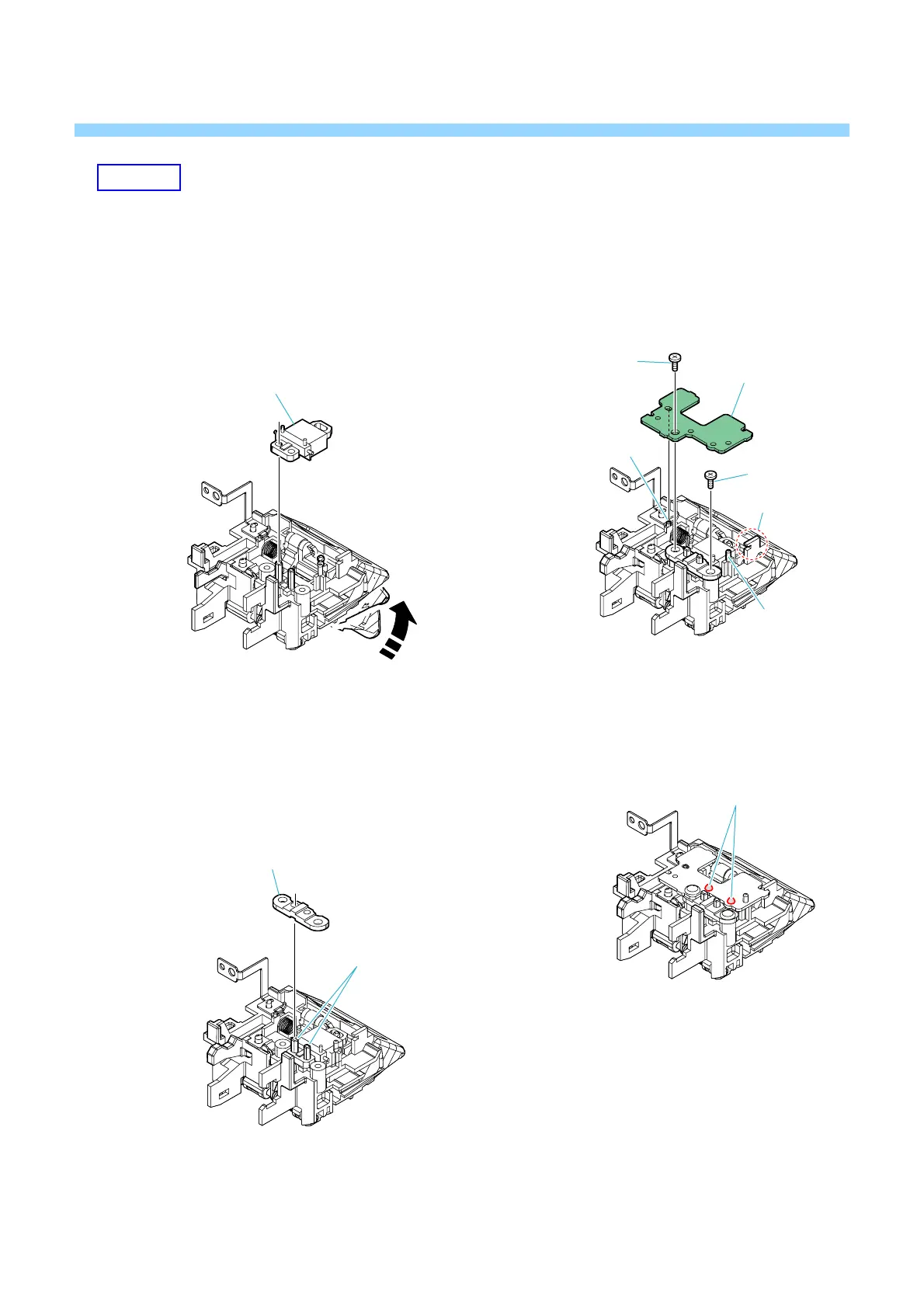

THE METHOD OF ATTACHMENT OF PLUNGER SOLENOID
HELP07
1
2
3
4
Screw
Screw
Boss
Boss
PL-051 Board
Claw
Attach Plunger solenoid to three pins while
closing the popping up.
Note : Be sure not to touch the copper leads or
contacts.
Attach PL-051 board while positioning to two
bosses and secure it with two screws.
Attach Solenoid retainer to two pins and secure
it with a screw.
Solder two points.
To Next Page
