2-5
DSC-H50_L2
2-2-3. FRONT PANEL SECTION-2
Follow the disassembly in the numerical order given.
1 Battery Holder/Stroboscope Block (1-1 to 1-5)
2 Battery Holder Block (2-1 to 2-4)
3 ST-195 Flexible Board (3-1 to 3-8)

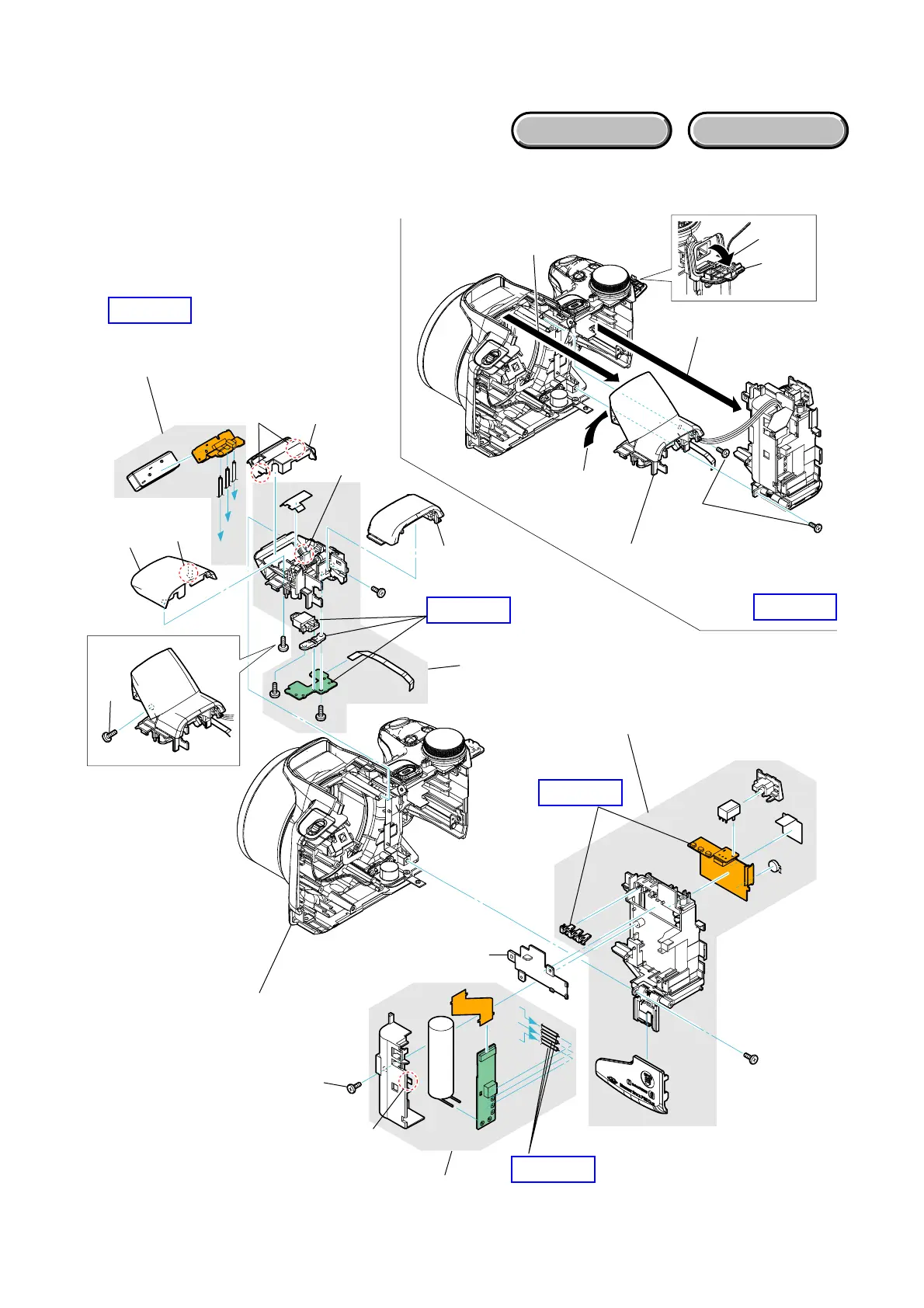

EXPLODED VIEW
HARDWARE LIST
C
B
C
A
B
A
1-1
(#76)
1-3
1-5
1-4
1-2
DC Lid
1 Battery Holder/
Stroboscope Block
2
Battery Holder Block
3
ST-195
Flexible Board
2-1 (#76)
2-3
2-4
2-2 (Claw)
3-1
(#12)
3-2
(Claw)
3-5
(Claw)
3-6
(Claw)
3-7
3-3
3-4
HELP06
HELP05
HELP08
HELP06
HELP07
Front Panel Section-3
(See Page 2-6)
3-8
