DSC-H50_L2
HELP
Harness
(HN-042)
(Pink)
Harness (HN-043)
(White)
ST-195 Flexible
Board
ST-195 Flexible Board
Claw
Claws
Flash Unit
Soldering
Points
Harness (HN-044)
(Blue)
HELP06
1
2
3
ST-194 Board
ST Base Assy
ST Base Assy
Lib
Pink
Pink
Blue
Blue
White
White
ST Insulating Sheet
Attach ST insulating sheet to ST base assy.
Soldering
Points
4
Lib

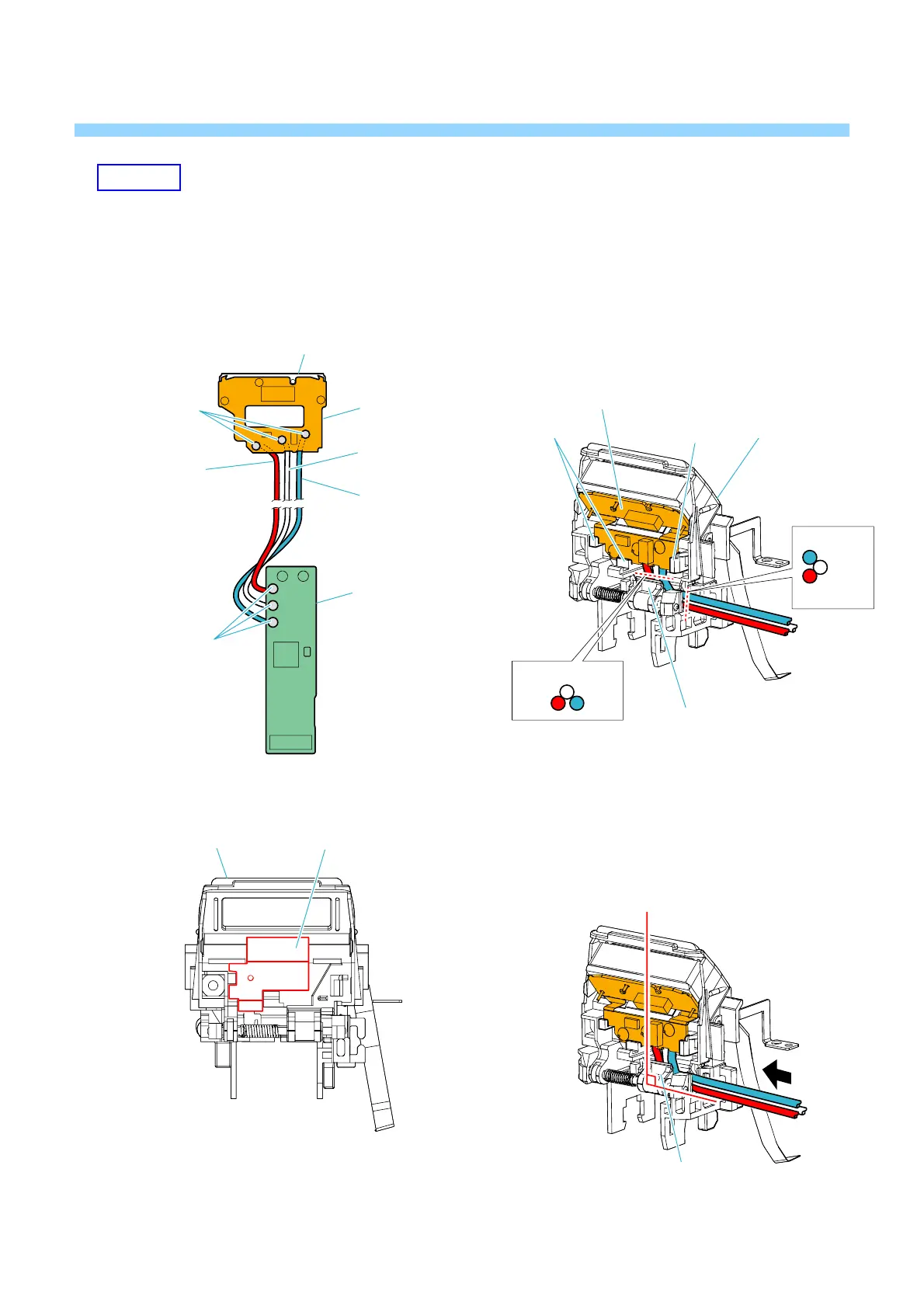

THE METHOD OF ATTACHMENT OF HARNESS (HN-042 to HN-044)
Solder three harnesses to ST-195 flexible board
and ST-194 board.
Note: Be careful about the colors of harnesses.
Attach ST-195 flexible board to ST base assy and
insert three harnesses to lib deeply.
Note: Be careful about the overlaps of harnesses.
Note: Be careful not to damage the covering of
harnesses.
Insert the harnesses in the arrow direction so that
the harnesses go to right angle in lib.
Note: Be sure to perform it under the popping up
is closed.
To Next Page
