DSC-H50_L2
HELP
2 Fold the notch 3 or 4 times repeatedly to break.

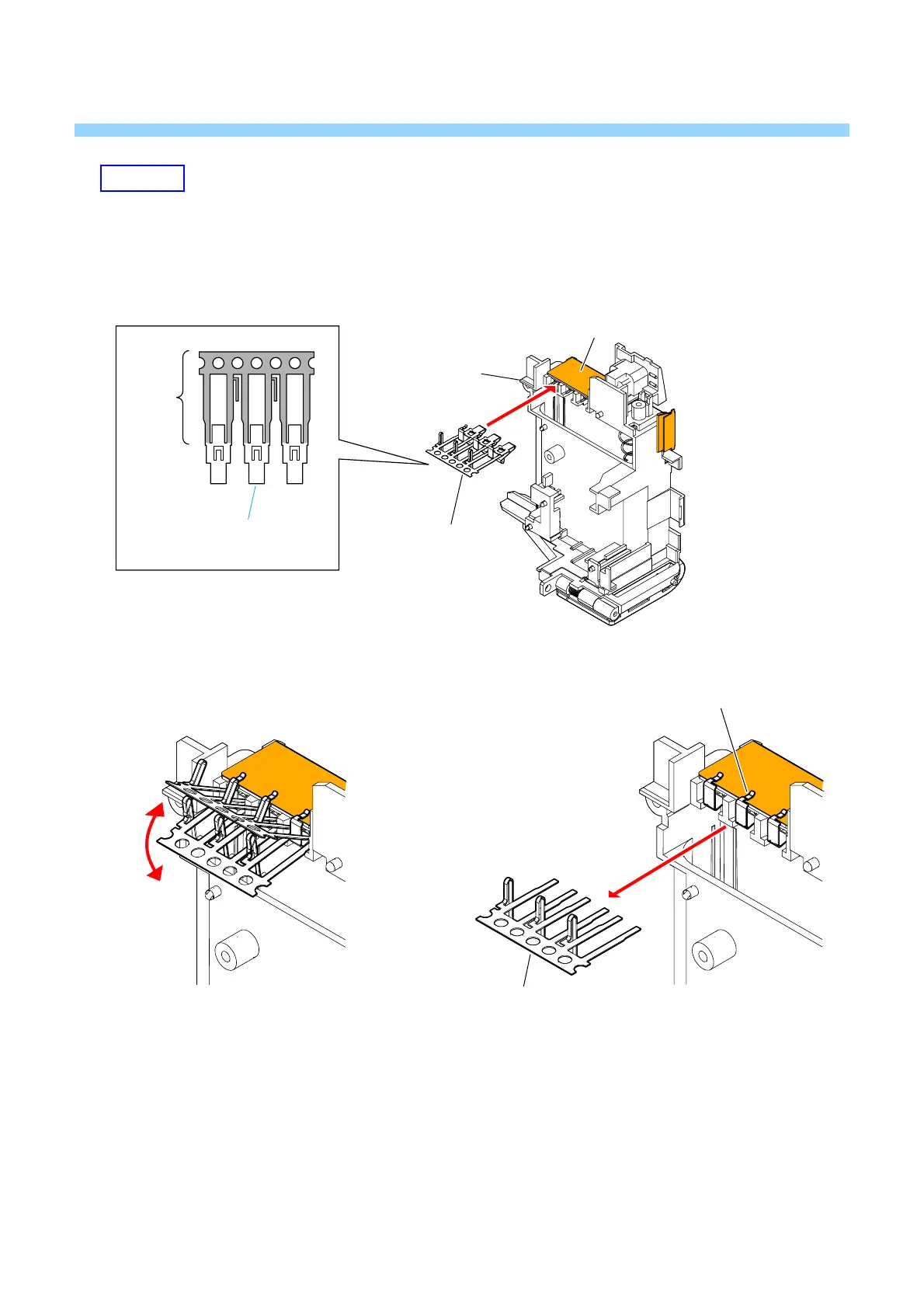

INSTALLATION METHOD OF THE BATTERY TERMINAL BOARD
Battery Terminal
Board
1 Insert the battery terminal board into a slit in the BT holder to install.
The battery terminal holder are attached with the notch for installation.
Notch
HELP05
Battery Terminal
Board
BT holder
DC-111 Flexible Board
Notch
Battery Terminal Board
