5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

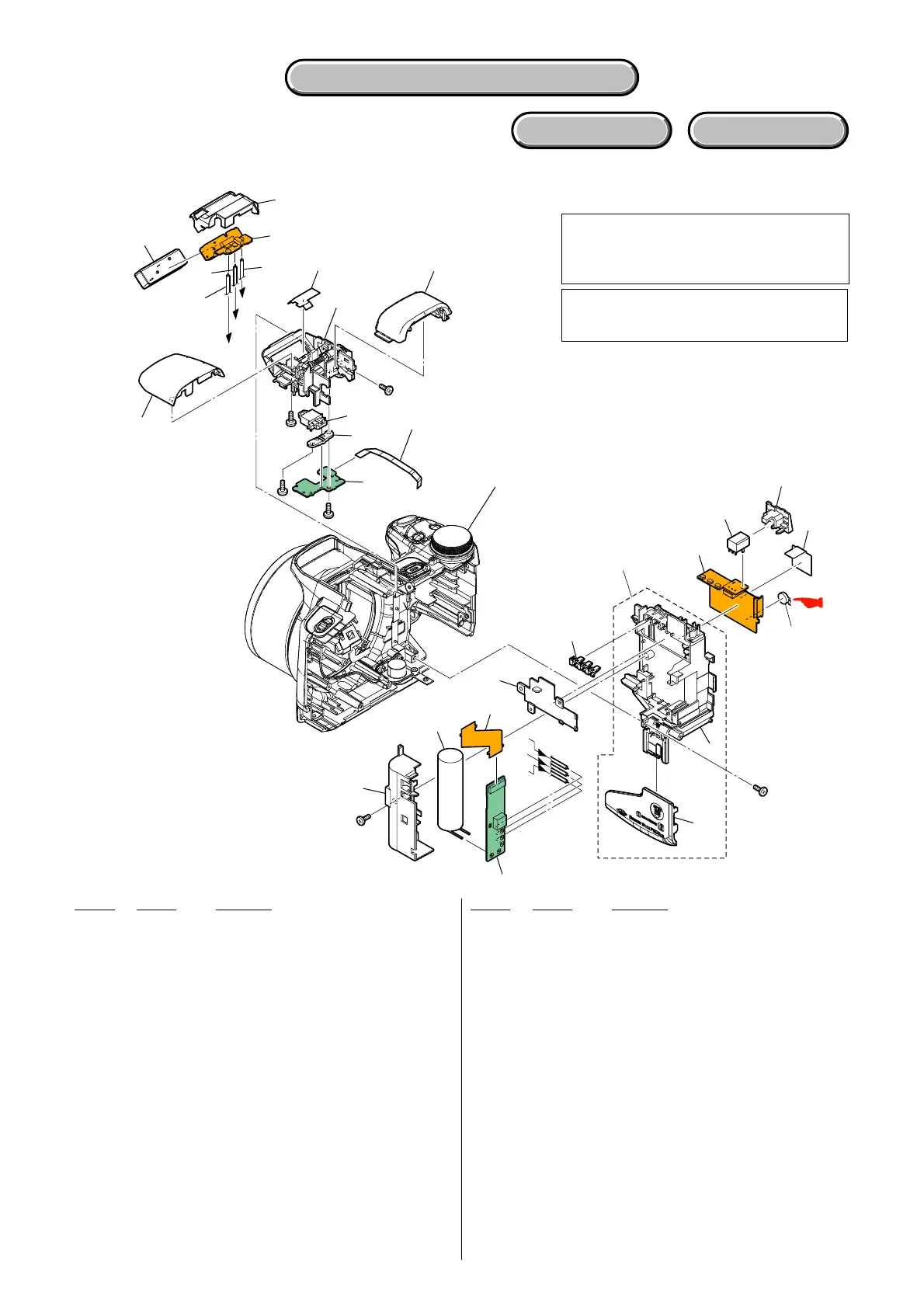

DSC-H50_L2
HARDWARE LIST
DISASSEMBLY
A
C
B
C
B
A
117
113
101
102
107
108
111
110
112
103
ns
FL901
#12
#76
#76
RY301
C205
J001
BT001
BH001
#76
#12
#12
109
Front panel section-3
(See page 5-5)
114
116
118
119
121
120
115
106
105
104
! : BT001 (LITHIUM RECHARGEABLE BATTERY)
Board on the mount position.
(See page 4-27.)
Ref. No. Part No. Description Ref. No. Part No. Description
101 3-452-701-01 COVER, ST (BLACK)
101 3-452-701-11 COVER, ST (SILVER)
* 102 3-452-704-01 COVER, FL
103 A-1519-828-A ST-195 FLEXIBLE BOARD, COMPLETE
* 104 1-965-160-21 HARNESS (HN-044) (BLUE)
* 105 1-965-159-21 HARNESS (HN-043) (WHITE)
* 106 1-965-158-21 HARNESS (HN-042) (PINK)
* 107 3-452-705-01 SHEET, ST INSULATING
108 X-2190-272-1 BASE ASSY (470), ST (BLACK)
108 X-2190-273-1 BASE ASSY (470D), ST (SILVER)
109 3-452-702-01 CABINET (UPPER) (BLACK)
109 3-452-702-11 CABINET (UPPER) (SILVER)
* 110 3-452-703-01 RETAINER, SOLENOID
111 1-835-133-11 FLEXIBLE FLAT CABLE (FFC-160)
112 A-1519-819-A PL-051 BOARD, COMPLETE
* 113 3-452-595-01 HOLDER, DC (BLACK)
* 113 3-452-595-11 HOLDER, DC (SILVER)
* 114 3-452-597-01 SHEET, DC INSULATING
115 A-1519-824-A DC-111 FLEXIBLE BOARD, COMPLETE
116 X-2190-256-1 HOLDER ASSY, BATTERY (BLACK)
116 X-2190-257-1 HOLDER ASSY, BATTERY (SILVER)
117 3-452-586-01 LID, BT (BLACK)
117 3-452-586-11 LID, BT (SILVER)
* 118 3-452-598-01 COVER, BT HOLDER
119 1-875-749-11 FP-900 FLEXIBLE BOARD
120 A-1519-820-A ST-194 BOARD, COMPLETE
* 121 3-452-596-01 HOLDER, CAPACITOR
0 BH001 1-780-456-11 TERMINAL BOARD, BATTERY
0 BT001 1-756-711-11 LITHIUM RECHARGEABLE BATTERY
0 C205 1-114-341-21
CAP, ALUMINUM ELECT 180uF 99% 315V
0 FL901 1-480-062-21 FLASH UNIT
0 J001 1-817-331-11 DC JACK 5P (DC IN)
* RY301 1-455-056-11 SOLENOID, PLUNGER (STROBE OPEN)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#76 2-666-551-11 SCREW, TAPPING, P2 (Silver)
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
注意
電池の交換は，正しく行わないと破裂する恐れ
があります。電池を交換する場合には必ず同じ
型名の電池又は同等品と交換してください。
5-1-3. FRONT PANEL SECTION-2
ns: not supplied
• Refer to page 5-1 for mark 0.
