Index to Parts and Controls

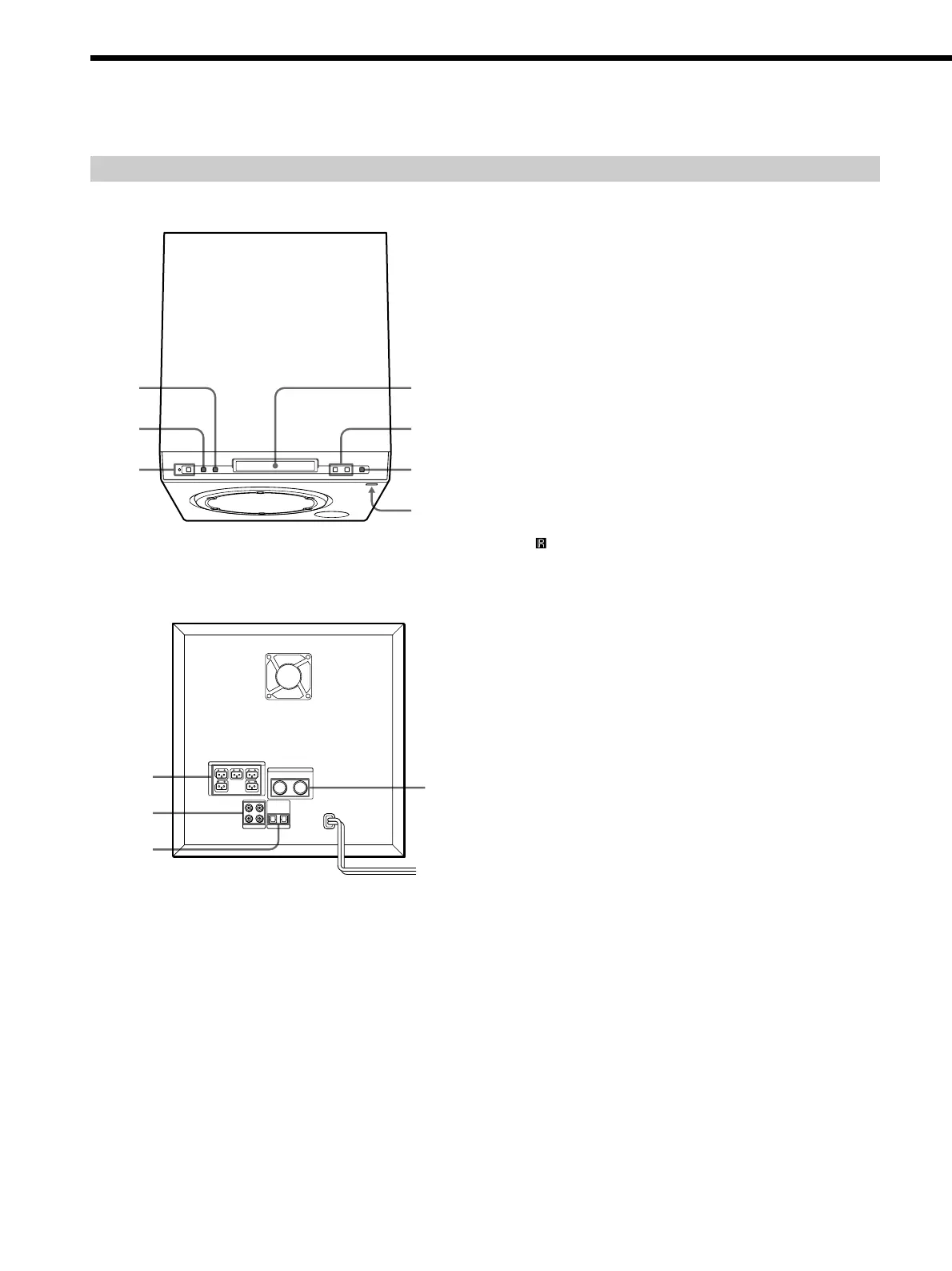

Top panel/Front panel
1 SOUND FIELD button (11)
Selects the sound field.
2 FUNCTION button (9)
Selects the input signal.
3 ?/1 (POWER) switch and indicator (9)
Turns on and off the power of the system.
4 Display window (7, 9, 11, 14)
Indicates the speaker setting, input signal, sound field
mode, etc.
5 MASTER VOL (volume) +/– buttons (9)
Adjust the volume.
6 MUTING button (9)
Mutes the sound.
7
remote sensor (4)
Accepts the remote control signals.
Rear panel
8 SPEAKER jacks (5)
Connect to the supplied satellite speakers.
9 AUDIO IN 1/2 jacks (6)
Connect to the audio output of a TV, VCR, PSone, etc.
0 DIGITAL IN OPTICAL 1/2 jacks (5, 6)
Connect to the DIGITAL OUT (OPTICAL) jack of the
“PlayStation 2,” DVD player, etc.
qa BASS CONTROL knobs (10)
Make fine adjustment of the bass sound.
Refer to the pages indicated in parentheses for details.
