Getting Started
Connecting to an amplifier with a special
jack for a super woofer
If your amplifier has a special jack for a super woofer
(like a MONO OUT jack, MIX OUT jack, SUB
WOOFER jack or SUPER WOOFER jack), connect the
INPUT 1 jack of the woofer to one of those jacks.
What cords will I need?
Audio connecting cord (supplied) (1)
Hookups
Connect the INPUT 1 jack of the woofer to one of
special jack of the amplifier with the supplied audio
connecting cord.
Note
If the output level of your amplifier is not large enough, the
sound may not be loud enough. In this case, connect the
speaker terminals of the amplifier directly to the INPUT2
terminals of the woofer.
Setting the VOLTAGE SELECTOR
(Not provided on European, North
American and Malaysian models)
Check that the VOLTAGE SELECTOR on the rear
panel of the deck is set to the local power line voltage.
If not, set the selector to the correct position using a
screwdriver before connecting the AC power cord to a
wall outlet.
Connecting the AC power cord
Connect the AC power cord from the woofer and from
your amplifier to a wall outlet.

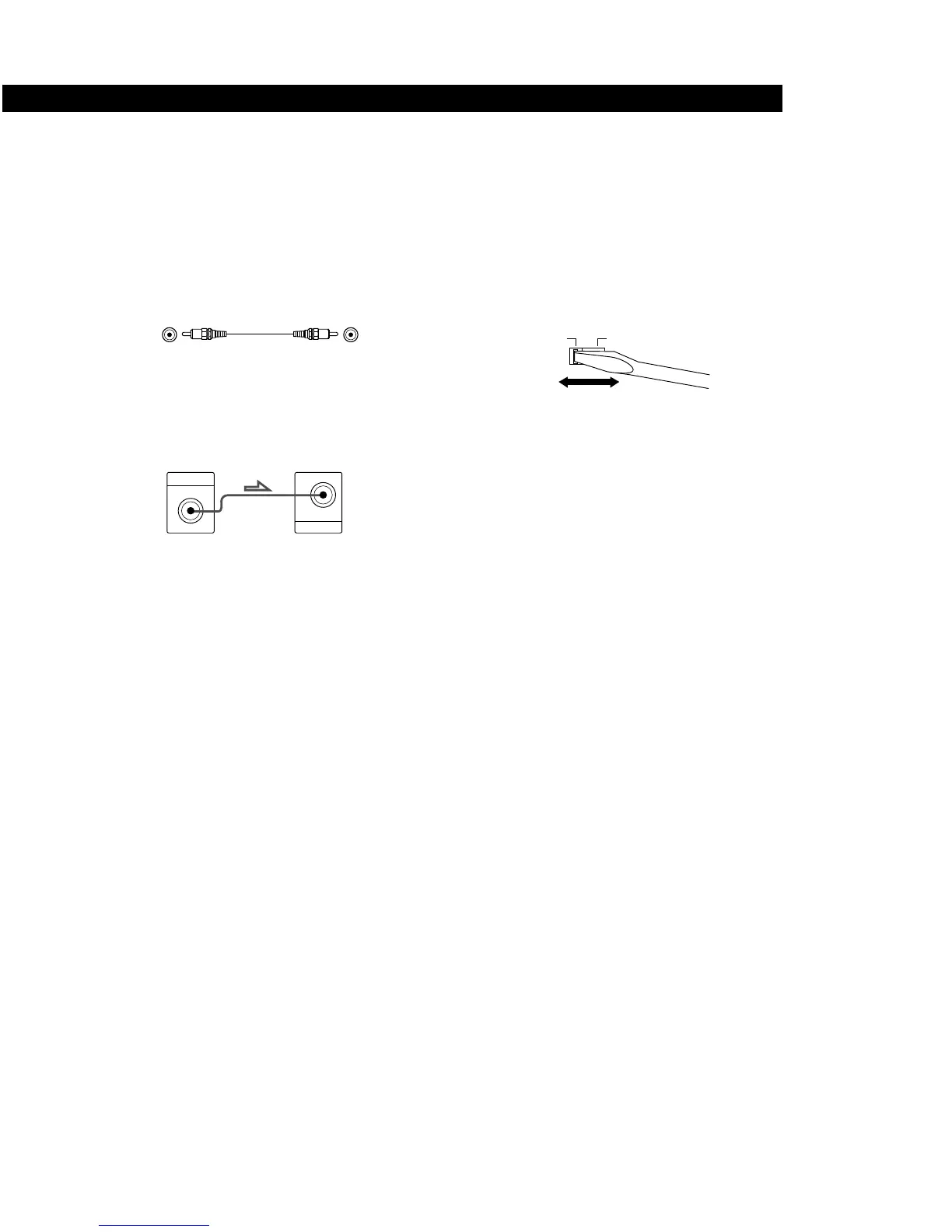

INPUT 1
MONO OUT
Amplifier This woofer
220 - 240 V 110 - 120 V
