Sony SA-WCT800 - BOND FIXED POSITION OF ELECTRICAL PARTS

SA-WCT800
5

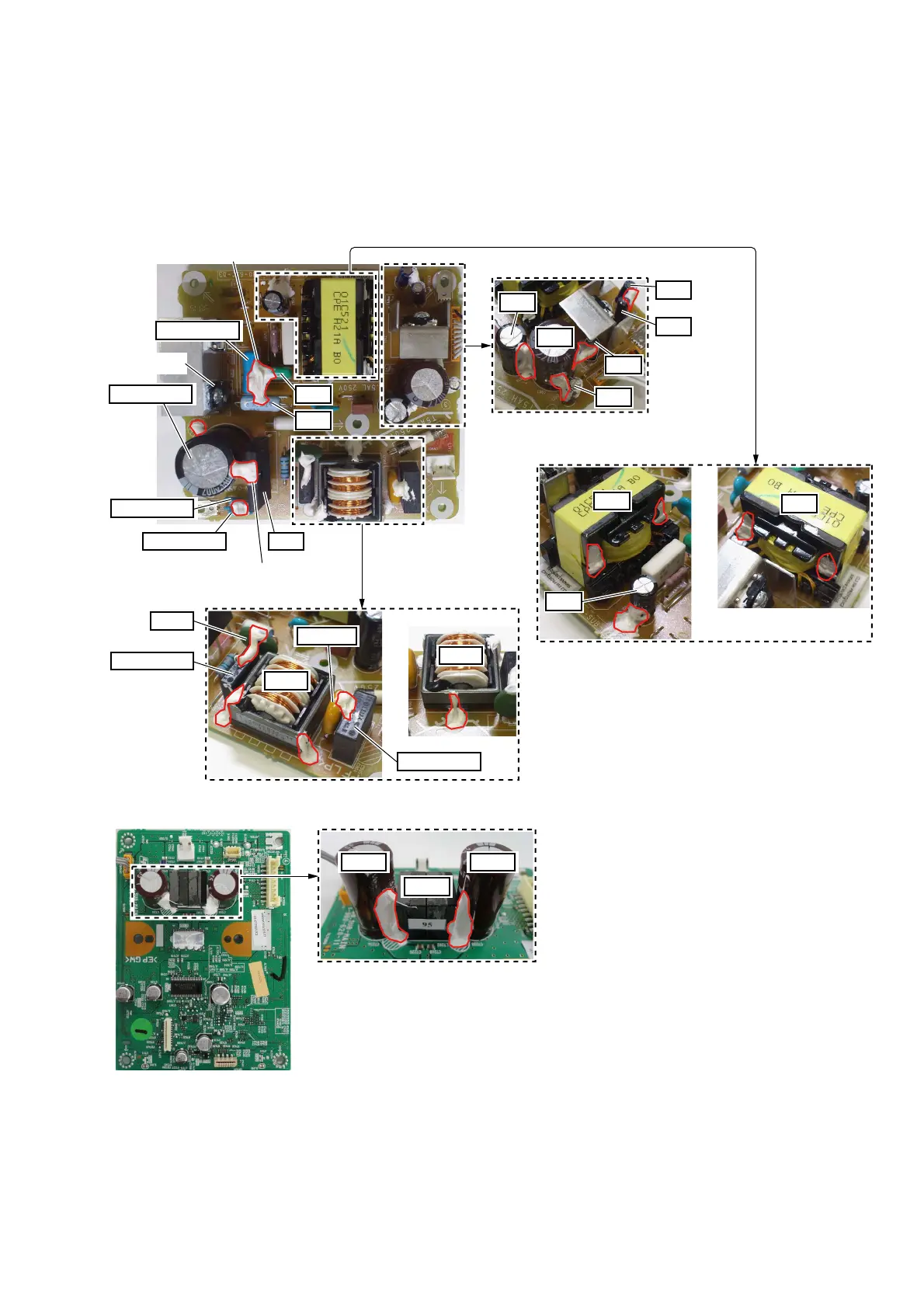

BOND FIXED POSITION OF ELECTRICAL PARTS
When the parts that fi xed on the board by the bond have been removed, fi x the parts by using the bond (ADHESIVE (SC608Z2)) in the
mounting to the board. (Refer to the fi gure below)
[ ]: Bond application portion
– SUB-POWER Board (Component Side) –
– SUB-MAIN Board (Component Side) –
C7233C7234
L7202
LF901
VDR901
C904 or C905
TH901
C907 or C988
LF901
C967
C976
C978
C970
C977
C980
R944
C939
C935 or C938
C914 or C915
C902 or C906
C903 or C908
D901
T901
T901
C941
D938
Note:
C935 or C938 is fixed so as
not inclined to D938 side.
Note:
D901 is fixed so as not inclined
to C914 or C915 side.
